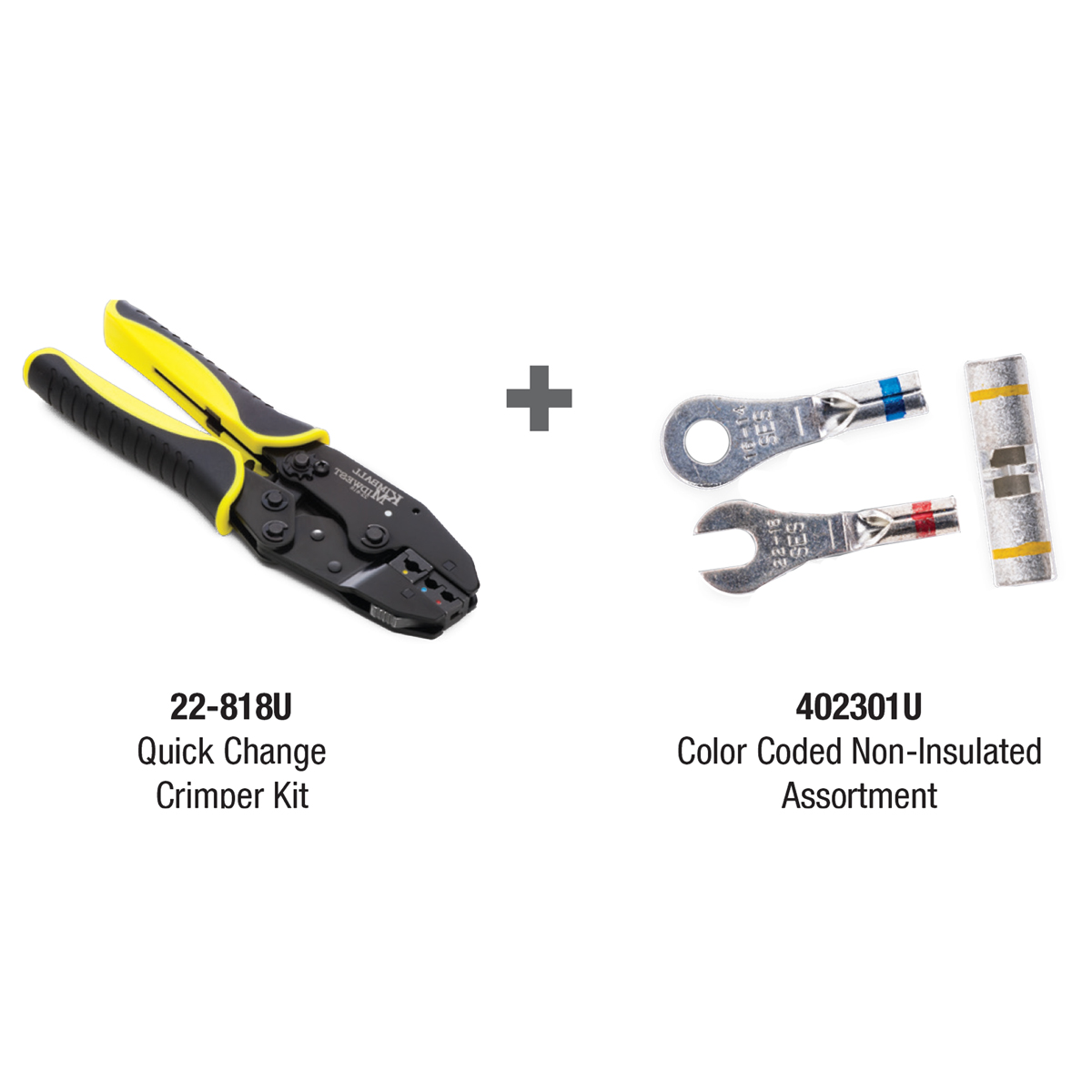

Color-Coded Non-Insulated Terminal Assortment with Quick Change Crimper Bundle

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 12.6 lbs

Item: 209009U

22-818Quick Change Ratcheting Crimper Kit - Qty. 1

  • UNIQUE QUICK CHANGE DESIGN - Interchangeable dies instantly snap into place - no screws or tools required.
  • SUPERIOR CRIMP QUALITY - Duplicates factory crimp performance.
  • RATCHET MECHANISM - Ratchet action design assures a complete crimp cycle is achieved before the tool opens.
  • DOUBLE CRIMPS - Produces an electrical crimp and insulation grip crimp in one cycle on nylon terminals.
  • KIT INCLUDES 4 PRECISION DIES:
    INSULATED TERMINALS - Crimps nylon, vinyl and heat shrink insulated terminals in 22-18, 16-14 & 12-10 AWG.
    NON-INSULATED TERMINALS - Crimps 22-18, 16-14, 12-10 & 8 AWG terminals.
    AUTOMOTIVE OPEN BARREL TERMINALS - Crimps 20-18, 16-14 & 12-10 AWG terminals (does not crimp seals).
    INSULATED FERRULE TERMINALS - Crimps 22, 20, 18, 16, 14 & 12 AWG terminals.
  • OPTIONAL COAXIAL CABLE DIE - Crimps RG58, RG59, RG62 & RG6 coaxial connectors in 8.2mm, 6.5mm, 5.4mm, 2.5mm & 1.7mm.
  • ERGONOMIC DESIGN - Comfortable, cushioned rubber grips reduce hand fatigue caused by repetitive use.
  • SAFETY RELEASE LEVER - Built-in release lever allows opening the tool before completion of the crimp cycle if needed.
  • PROFESSIONAL QUALITY - Heavy-duty arms, removable crimp jaws, cushion grip handles and more make this a true professional tool.



40-230-1Color-Coded Non-Insulated Terminal Assortment - Qty. 1

  • COLOR-CODED BANDS - Allows at a glance identification of wire gauge size.
    Crimp on the band for proper crimp nest positioning and an optimal crimp.
  • BUILT-IN INSPECTION WINDOW - Provides a visual check that the ideal connection has been made. 45° inspection barrel (on ring and spade terminals) ensures the wire is seated properly and is being correctly crimped to the terminal.
  • LONG NECK RING & SPADE TERMINAL DESIGN - Provides a larger, more reliable sealing area and allows the ring terminals to be easily stacked.
  • BRAZED SEAM BARRELS - Seam will not open or loosen, helping to prevent wire pullout.
  • ELECTRO TIN-PLATING - Provides increased corrosion resistance.











Brand: Kimball Midwest
Finish: Color-Coded Electro-Tin Plating
Installation: Crimp
Insulation Material: No Insulation
Material: Electrolytic Copper Contacts
Private Label: Yes
Voltage: 600V
Wire Diameter: 22-10

22-818Quick Change Ratcheting Crimper Kit - Qty. 1

  • UNIQUE QUICK CHANGE DESIGN - Interchangeable dies instantly snap into place - no screws or tools required.
  • SUPERIOR CRIMP QUALITY - Duplicates factory crimp performance.
  • RATCHET MECHANISM - Ratchet action design assures a complete crimp cycle is achieved before the tool opens.
  • DOUBLE CRIMPS - Produces an electrical crimp and insulation grip crimp in one cycle on nylon terminals.
  • KIT INCLUDES 4 PRECISION DIES:
    INSULATED TERMINALS - Crimps nylon, vinyl and heat shrink insulated terminals in 22-18, 16-14 & 12-10 AWG.
    NON-INSULATED TERMINALS - Crimps 22-18, 16-14, 12-10 & 8 AWG terminals.
    AUTOMOTIVE OPEN BARREL TERMINALS - Crimps 20-18, 16-14 & 12-10 AWG terminals (does not crimp seals).
    INSULATED FERRULE TERMINALS - Crimps 22, 20, 18, 16, 14 & 12 AWG terminals.
  • OPTIONAL COAXIAL CABLE DIE - Crimps RG58, RG59, RG62 & RG6 coaxial connectors in 8.2mm, 6.5mm, 5.4mm, 2.5mm & 1.7mm.
  • ERGONOMIC DESIGN - Comfortable, cushioned rubber grips reduce hand fatigue caused by repetitive use.
  • SAFETY RELEASE LEVER - Built-in release lever allows opening the tool before completion of the crimp cycle if needed.
  • PROFESSIONAL QUALITY - Heavy-duty arms, removable crimp jaws, cushion grip handles and more make this a true professional tool.



40-230-1Color-Coded Non-Insulated Terminal Assortment - Qty. 1

  • COLOR-CODED BANDS - Allows at a glance identification of wire gauge size.
    Crimp on the band for proper crimp nest positioning and an optimal crimp.
  • BUILT-IN INSPECTION WINDOW - Provides a visual check that the ideal connection has been made. 45° inspection barrel (on ring and spade terminals) ensures the wire is seated properly and is being correctly crimped to the terminal.
  • LONG NECK RING & SPADE TERMINAL DESIGN - Provides a larger, more reliable sealing area and allows the ring terminals to be easily stacked.
  • BRAZED SEAM BARRELS - Seam will not open or loosen, helping to prevent wire pullout.
  • ELECTRO TIN-PLATING - Provides increased corrosion resistance.











# of Pieces: N/A
Brand: Kimball Midwest
Diameter: N/A
Finish: Color-Coded Electro-Tin Plating
Installation: Crimp
Insulation Material: No Insulation
Material: Electrolytic Copper Contacts
Private Label: Yes
Shape: N/A
Stud Size: N/A
Voltage: 600V
Wire Diameter: 22-10
