Deutsch HD Terminal Assortment

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 8.4 lbs

Item: 402335

  • Environmentally sealed connectors are ideal for lighting systems, engine compartments, industrial controls, robotics and other applications.
  • When mated, contacts are protected from moisture, sand, dust, lubricating oil, fuel, road salt, hydraulic fluid, grease, mud and other contaminants.
  • Thermoplastic housings are rated for -67°F to 257°F .
  • Rear silicone seals on plugs and receptacles automatically seal each wired contact as it locks in place during installation.
  • Rated for 18 thru 14 gauge wire, 13 amps maximum on all contacts.
  • Contact insertion and withdrawal requires no special tools; contacts are automatically retained in the housings upon insertion.
  • Available in non-threaded and threaded (for rear hardware) styles.
# of Pieces: 135
Brand: Kimball Midwest Approved Vendor
Operating Temperature: -67° to 257°F
Private Label: No
Rated Capacity: 13 A
Series: HD10
Shape: Assortment
Wire Diameter: 18-14

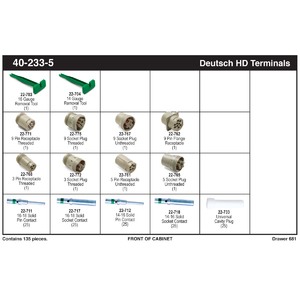

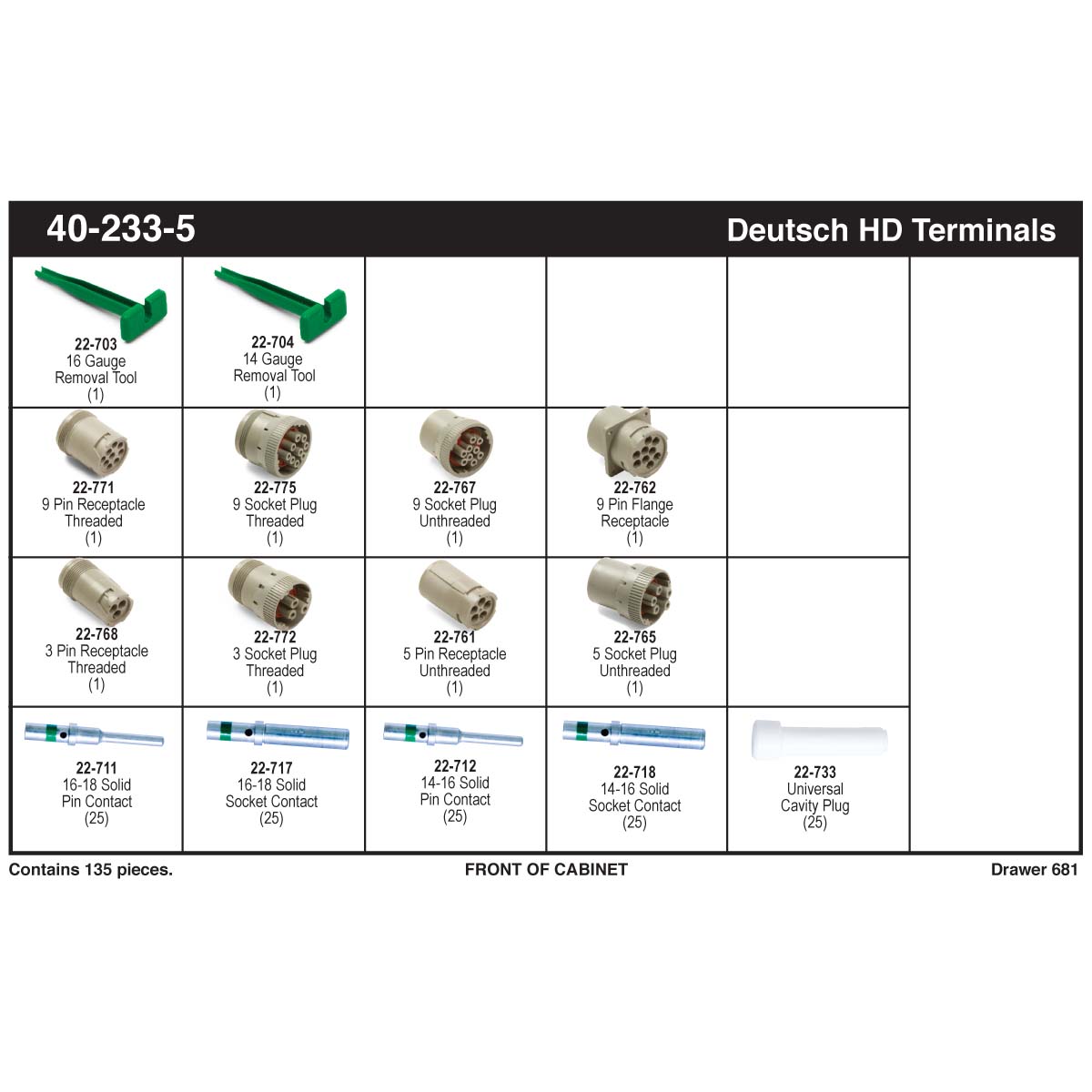

Kit Contains:

  • 22-711 - Deutsch Solid Pin Contact 16 - 18 AWG - Qty. 25
  • 22-712 - Deutsch Solid Pin Contact 14 - 16 AWG - Qty. 25
  • 22-717 - Deutsch Solid Socket Contact 16 - 18 AWG - Qty. 25
  • 22-718 - Deutsch Solid Socket Contact 14 - 16 AWG - Qty. 25
  • 22-733 - Universal Cavity Plug - Qty. 25
  • 22-768 - Deutsch HD10 Series 3 Pin Receptacle Threaded Connector - Qty. 1
  • 22-772 - Deutsch HD10 Series 3 Socket Plug Threaded Connector - Qty. 1
  • 22-761 - Deutsch HD10 Series 5 Pin Receptacle Non-Threaded Connector - Qty. 1
  • 22-765 - Deutsch HD10 Series 5 Socket Plug Non-Threaded Connector - Qty. 1
  • 22-771 - Deutsch HD10 Series 9 Pin Receptacle Threaded Connector - Qty. 1
  • 22-775 - Deutsch HD10 Series 9 Socket Plug Threaded Connector - Qty. 1
  • 22-767 - Deutsch HD10 Series 9 Socket Plug Non-Threaded Connector - Qty. 1
  • 22-762 - Deutsch HD10 Series 9 Pin Receptacle Square Flanged Connector - Qty. 1
  • 22-703 - Deutsch HD10 Series Contact Removal Tool 16 AWG - Qty. 1
  • 22-704 - Deutsch HD10 Series Contact Removal Tool 14 AWG - Qty. 1
