General Motors Metripack 280 Terminal Assortment

402336

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 7.7 lbs

Item: 402336

  • METRIPACK SEALED CONNECTORS - Metripack series terminals and connector shells are used to make waterproof connections with high current capability in applications where reliability is critical.
  • IDEAL FOR HEAVY DUTY APPLICATIONS - Provides exceptional performance on heavy duty equipment, agricultural equipment, off-road equipment, over-the-road trucks and other demanding applications.
  • SEALED CONNECTIONS - The system consists of male and female terminals that are crimped into place with a cable seal. The terminal and seal are then installed in mating connector shells that also contain silicone seals. Once assembled the system is completely environmentally sealed.
  • 3 METRIPACK SEALED SERIES:
    MetriPack 150 handles up to 14 Amps.
    MetriPack 280 handles up to 30 Amps.
    MetriPack 480 handles up to 42 Amps.
    MetriPack 630 handles up to 46 Amps.
# of Pieces: 109
Brand: Kimball Midwest
Private Label: Yes
Rated Capacity: 20 Amps
Series: Metripack
Shape: Assortment
Wire Diameter: 16-14

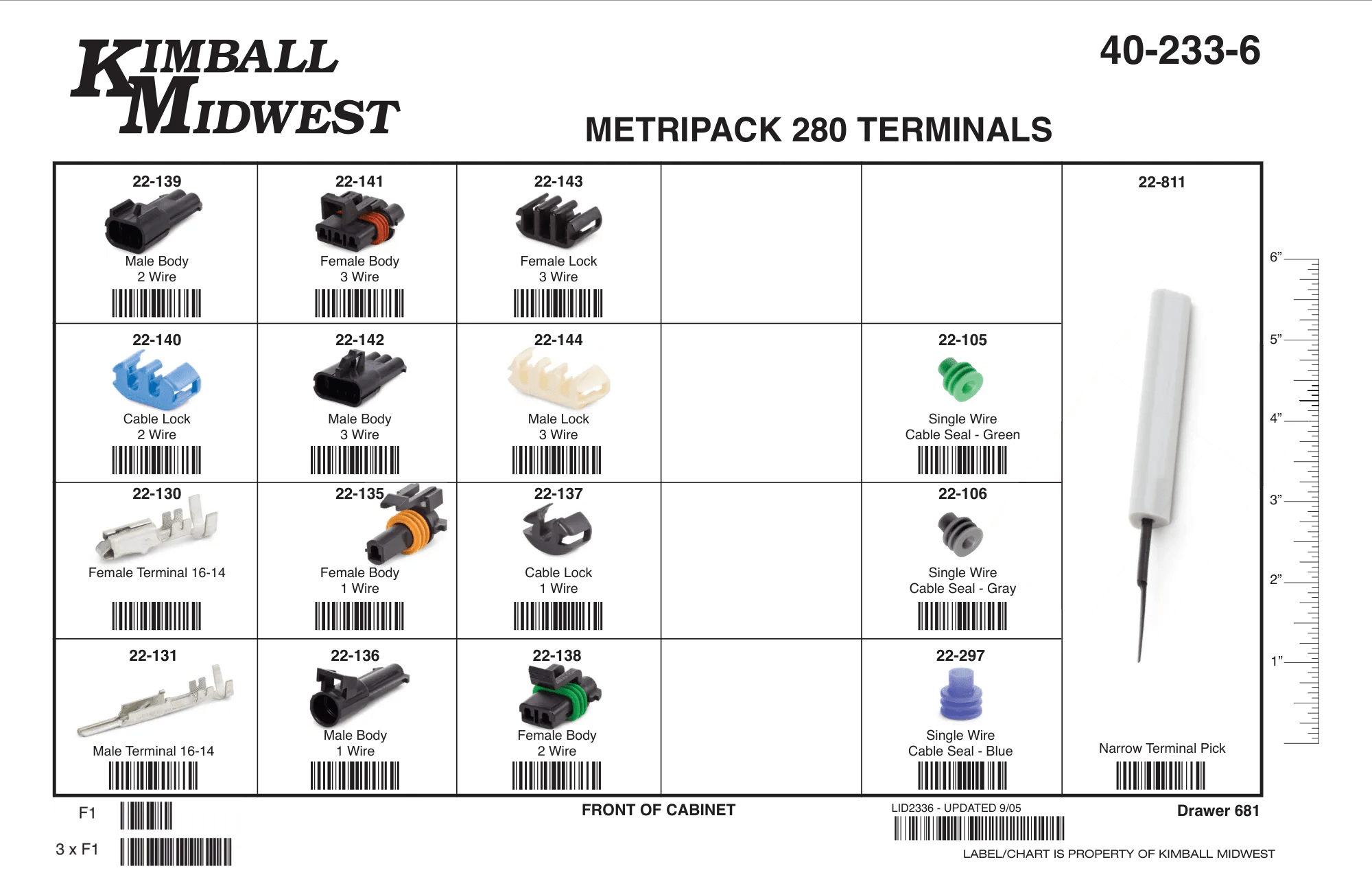

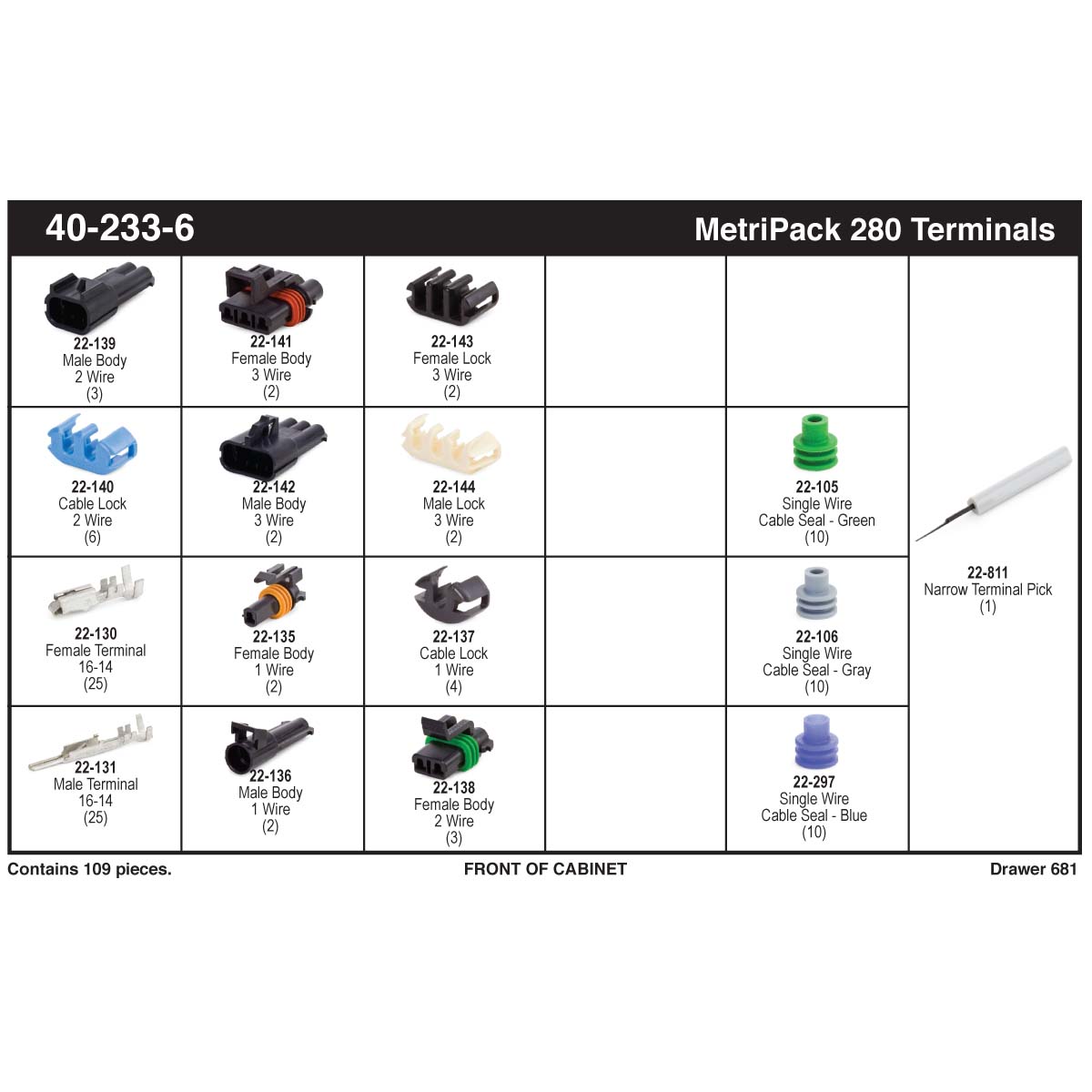

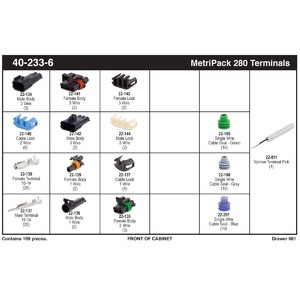

Kit Contains:

  • 22-130 - General Motors Female Metripack Automotive Terminal 16 - 14 AWG - Qty. 25
  • 22-131 - General Motors Female Metripack Automotive Terminal 16 - 14 AWG - Qty. 25
  • 22-105 - General Motors Metripack Green Single Wire Cable Seal - Qty. 10
  • 22-106 - General Motors Metripack Gray Single Wire Cable Seal - Qty. 10
  • 22-297 - General Motors Metripack Blue Single Wire Cable Seal - Qty. 10
  • 22-135 - General Motors Female Metripack Automotive Terminal Body - 1 Wire - Qty. 2
  • 22-136 - General Motors Male Metripack Automotive Terminal Body - 1 Wire - Qty. 2
  • 22-137 - General Motors Metripack Cable Lock - 1 Wire - Qty. 4
  • 22-138 - General Motors Metripack Automotive Female Terminal Body - 2 Wire - Qty. 3
  • 22-139 - General Motors Metripack Automotive Male Terminal Body - 2 Wire - Qty. 3
  • 22-140 - General Motors Metripack Cable Lock - 2 Wire - Qty. 6
  • 22-141 - General Motors Metripack Automotive Female Terminal Body - 3 Wire - Qty. 2
  • 22-142 - General Motors Metripack Automotive Male Terminal Body - 3 Wire - Qty. 2
  • 22-143 - General Motors Metripack Cable Lock - Female 3 Wire - Qty. 2
  • 22-144 - General Motors Metripack Cable Lock - Male 3 Wire - Qty. 2
  • 22-811 - Terminal Extractor Pick - Qty. 1


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • METRIPACK SEALED CONNECTORS - Metripack series terminals and connector shells are used to make waterproof connections with high current capability in applications where reliability is critical.
  • IDEAL FOR HEAVY DUTY APPLICATIONS - Provides exceptional performance on heavy duty equipment, agricultural equipment, off-road equipment, over-the-road trucks and other demanding applications.
  • SEALED CONNECTIONS - The system consists of male and female terminals that are crimped into place with a cable seal. The terminal and seal are then installed in mating connector shells that also contain silicone seals. Once assembled the system is completely environmentally sealed.
  • 3 METRIPACK SEALED SERIES:
    MetriPack 150 handles up to 14 Amps.
    MetriPack 280 handles up to 30 Amps.
    MetriPack 480 handles up to 42 Amps.
    MetriPack 630 handles up to 46 Amps.
# of Pieces: 109
Brand: Kimball Midwest
Industry Number: N/A
Private Label: Yes
Rated Capacity: 20 Amps
Series: Metripack
Shape: Assortment
Wire Diameter: 16-14

Kit Contains:

  • 22-130 - General Motors Female Metripack Automotive Terminal 16 - 14 AWG - Qty. 25
  • 22-131 - General Motors Female Metripack Automotive Terminal 16 - 14 AWG - Qty. 25
  • 22-105 - General Motors Metripack Green Single Wire Cable Seal - Qty. 10
  • 22-106 - General Motors Metripack Gray Single Wire Cable Seal - Qty. 10
  • 22-297 - General Motors Metripack Blue Single Wire Cable Seal - Qty. 10
  • 22-135 - General Motors Female Metripack Automotive Terminal Body - 1 Wire - Qty. 2
  • 22-136 - General Motors Male Metripack Automotive Terminal Body - 1 Wire - Qty. 2
  • 22-137 - General Motors Metripack Cable Lock - 1 Wire - Qty. 4
  • 22-138 - General Motors Metripack Automotive Female Terminal Body - 2 Wire - Qty. 3
  • 22-139 - General Motors Metripack Automotive Male Terminal Body - 2 Wire - Qty. 3
  • 22-140 - General Motors Metripack Cable Lock - 2 Wire - Qty. 6
  • 22-141 - General Motors Metripack Automotive Female Terminal Body - 3 Wire - Qty. 2
  • 22-142 - General Motors Metripack Automotive Male Terminal Body - 3 Wire - Qty. 2
  • 22-143 - General Motors Metripack Cable Lock - Female 3 Wire - Qty. 2
  • 22-144 - General Motors Metripack Cable Lock - Male 3 Wire - Qty. 2
  • 22-811 - Terminal Extractor Pick - Qty. 1


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
