Non-Insulated High-Temperature Terminal Assortment
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Item Number: 40234
Package Weight: 9.1 lbs
Product Details

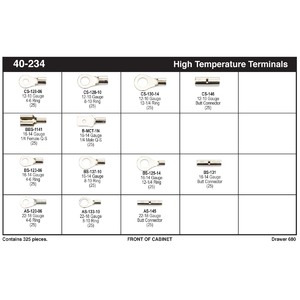

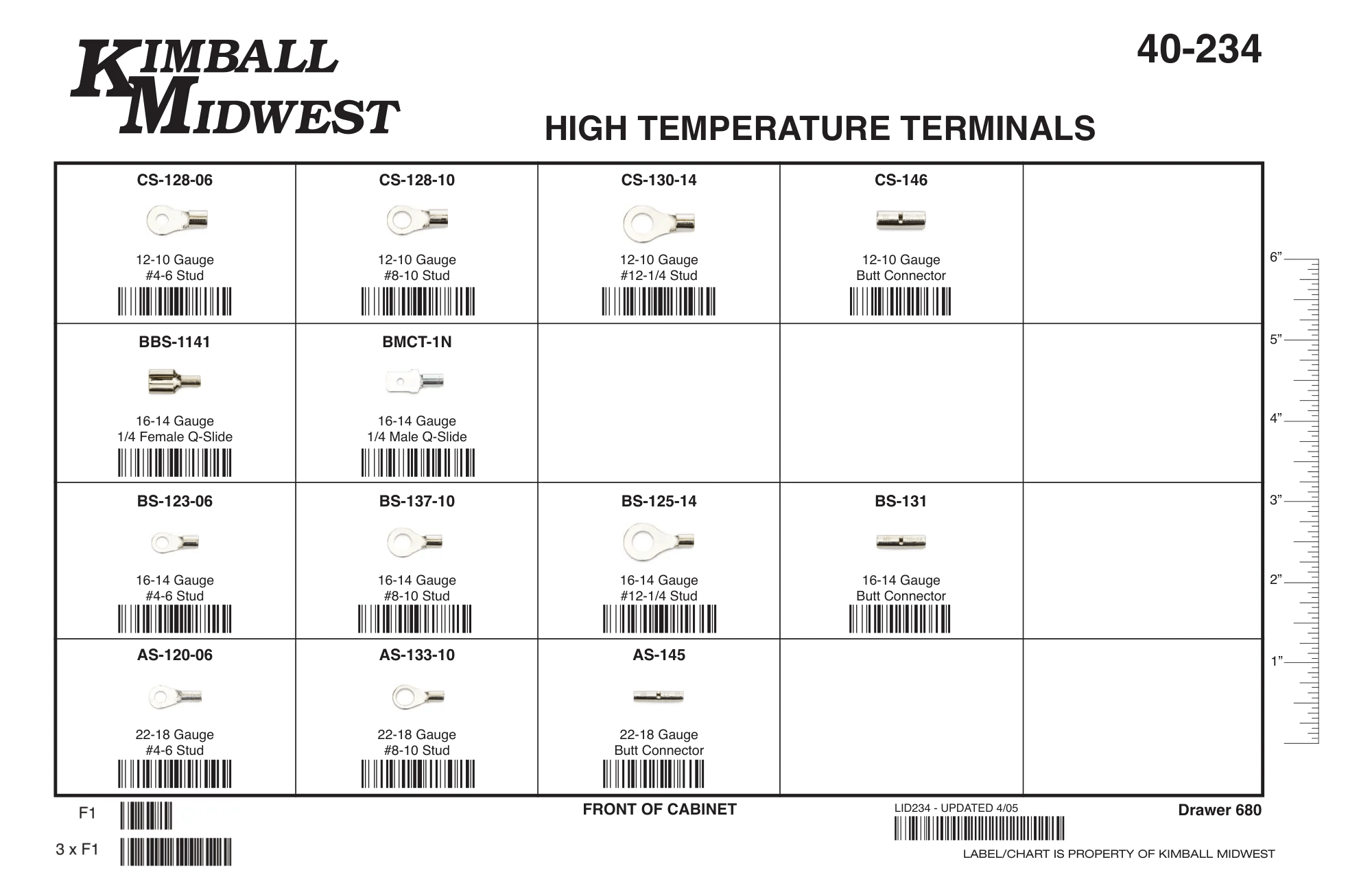

Kit Contains:
- AS-120-06 - Non-Insulated High-Temperature Heavy-Duty #4 - 6 Ring Terminal 22 - 18 AWG - Qty. 25
- AS-133-10 - Non-Insulated High-Temperature Heavy-Duty #8 - 10 Ring Terminal 22 - 18 AWG - Qty. 25
- AS-145 - Non-Insulated High-Temperature Heavy-Duty Butt Connector 22 - 18 AWG - Qty. 25
- BS-123-06 - Non-Insulated High-Temperature Heavy-Duty #4 - 6 Ring Terminal 16 - 14 AWG - Qty. 25
- BS-137-10 - Non-Insulated High-Temperature Heavy-Duty #8 - 10 Ring Terminal 16 - 14 AWG - Qty. 25
- BS-125-14 - Non-Insulated High-Temperature Heavy-Duty #12 - 1/4" Ring Terminal 16 - 14 AWG - Qty. 25
- BBS-1141 - Non-Insulated High-Temperature Heavy-Duty Female 1/4" Quick Slide Terminal 16 - 14 AWG - Qty. 25
- BMCT-1N - Non-Insulated High-Temperature Heavy-Duty Male 1/4" Quick Slide Terminal 16 - 14 AWG - Qty. 25
- BS-131 - Non-Insulated High-Temperature Heavy-Duty Butt Connector 16 - 14 AWG - Qty. 25
- CS-128-06 - Non-Insulated High-Temperature Heavy-Duty #4 - 6 Ring Terminal 12 - 10 AWG - Qty. 25
- CS-128-10 - Non-Insulated High-Temperature Heavy-Duty #8 - 10 Ring Terminal 12 - 10 AWG - Qty. 25
- CS-130-14 - Non-Insulated High-Temperature Heavy-Duty #12 - 1/4" Ring Terminal 12 - 10 AWG- Qty. 25
- CS-146 - Non-Insulated High-Temperature Heavy-Duty Butt Connector 12 - 10 AWG - Qty. 25
Product Documents
Product Specification
Brand:
Kimball Midwest
Finish:
Nickel Plated
Installation:
Crimp
Material:
High Strength Alloy Steel
Maximum Intermittent Operating Temperature:
1,200 °F
Maximum Operating Temperature:
900 °F
Number of Pieces:
235
Product Number (Alt):
40-234
Series:
Standard
Storage Type:
20-Compartment Drawer
Style:
Non-Insulated
Voltage:
600V
Wire Diameter:
22 - 10 AWG
