22 - 18 AWG Ultra-Link Crimp & Solder Terminal Assortment
Name:
22 - 18 AWG Ultra-Link Crimp & Solder Terminal Assortment
Item #:
402351
Package Weight: 7.1 lbs
Product Details
- VISUAL INDICATOR - Red flux disappears when solder melts to give a visual indication that the connection is properly made.
- EXCEPTIONAL QUALITY - Brazed seam crimp connector provides a secure mechanical connection.
- PRE-FLUXED, LOW TEMPERATURE SOLDER - Provides superior current flow and the highest tensile strength connections.
- CLEAR SHRINK TUBING - Allows easy visual inspection of the connection and provides outstanding insulation.
- CRIMPED, SOLDERED & SEALED - Meets or exceeds the toughest OEM requirements.
SPECIFICATIONS:
- Max. Temperature: 221°F
- Max. Voltage: 600V
- Solder Melts: 275°F (135°C)

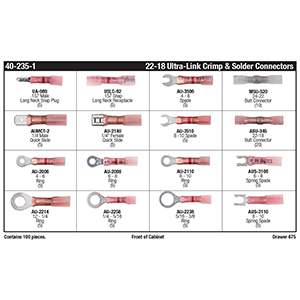

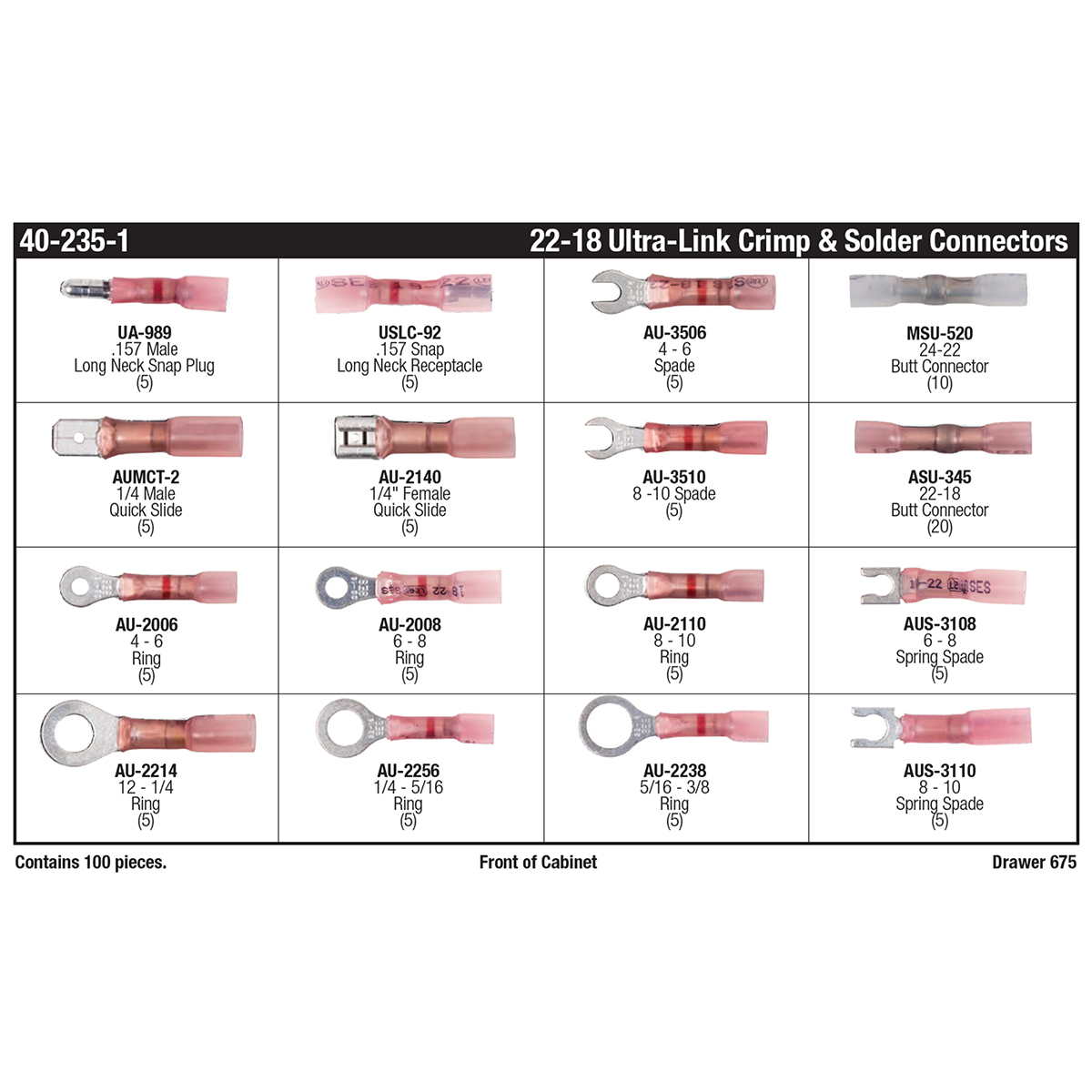

Assortment Contains:
- 675 - 16 Compartment Drawer - Qty. 1
- ASUV-345 - 22 - 18 AWG Ultra-Link & Solder Visual Indicator Butt Connector - Qty. 20
- AU-2006 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder (#4 - #6) Ring Terminal - Qty. 5
- AU-2008 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder (#6 - #8) Ring Terminal - Qty. 5
- AU-2110 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder (#8 - #10) Ring Terminal - Qty. 5
- AU-2140 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder Female (1/4" Tab) Terminal - Qty. 5
- AU-2214 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder (#12 - 1/4") Ring Terminal - Qty. 5
- AU-2238 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder (5/16" - 3/8") Ring Terminal - Qty. 5
- AU-2256 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder (1/4" - 5/16") Ring Terminal - Qty. 5
- AU-3506 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder (#4 - #6) Spade Terminal - Qty. 5
- AU-3510 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder (#8 - #10) Spade Terminal - Qty. 5
- AUMCT-2 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder Male (1/4" Tab) Quick Slide Terminal - Qty. 5
- AUS-3108 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder Spring (#6 - #8) Spade Terminal - Qty. 5
- AUS-3110 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder Spring (#8 - #10) Spade Terminal - Qty. 5
- MSU-520 - 24 - 22 AWG White Polyolefin Insulated Ultra-Link Crimp & Solder Butt Connector - Qty. 10
- UA-989 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder (.157) Male Long Neck Snap Plug - Qty. 5
- USLC-92 - 22 - 18 AWG Red Polyolefin Insulated Ultra-Link Crimp & Solder (.157) Female Long Neck Snap Receptacle - Qty. 5
Product Specification
Brand:
Kimball Midwest
Category:
Terminal Assortments - Industrial
Color:
Red
Installation:
Crimp, Self-Soldering
Material:
Electrolytic Copper Contacts
Maximum Operating Temperature:
221 °F
Number of Pieces:
100
Series:
Ultra-Link
Storage Type:
16-Compartment Drawer
Style:
Insulated
Voltage:
600V
Warranty:
30 Day
Wire Diameter:
22 - 18 AWG
