Nylon Terminal and Wire Assortment

Nylon Terminal and Wire Assortment

Price
Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register
Item Number: 40238
Package Weight: 17.6 lbs

Product Details

Enduralon™ Terminals
  • Outstanding durability, temperature resistance and dielectric strength from Enduralon™ Nylon Insulation.
  • Wires insert smoothly without hang-up into special funnel shaped barrels for fast and easy installation.
  • Insulock™ grip sleeves built into the terminal barrel allows a second crimp that locks the barrel onto the wire insulation to prevent wire pull-out failures.
  • Widest operating temperature range: -40°F to 250°F continuous; up to 350°F intermittent.
  • 600 volt rating on ring, hook and spade terminals.

SXL Primary Wire

  • Superior resistance to weather, abrasion, temperature extremes and chemicals.
  • Extreme durability extends life and reduces replacement.
  • OEM on heavy duty equipment and vehicles.
  • Premium stranded copper conductors.
  • Temperature range: -60° to 350°F.
  • Conforms to SAE specification J1128 and to ATA specifications.

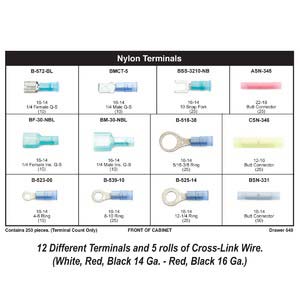

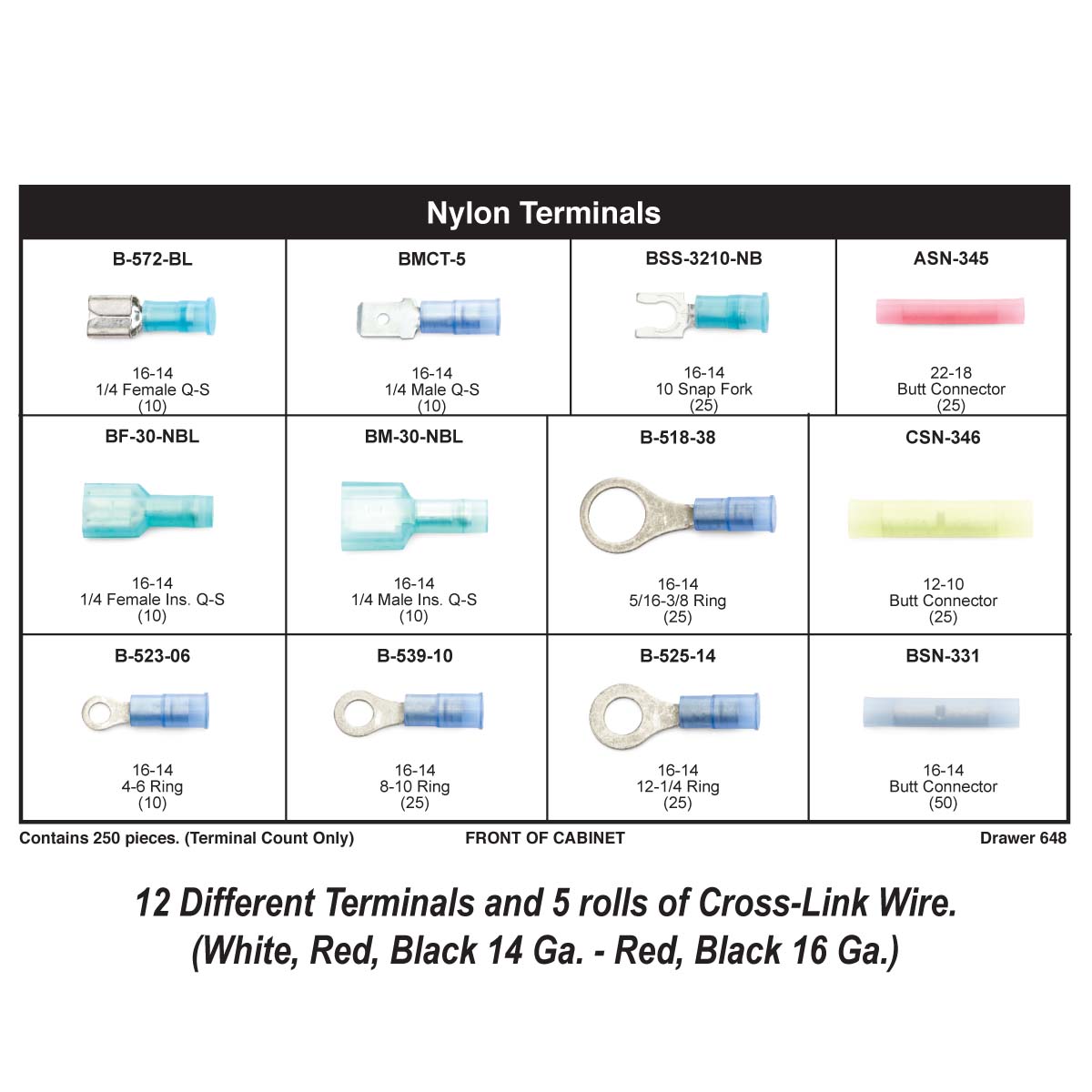

Kit Contains:

  • 26-341 - 14 Gauge Cross-Link Primary Wire White - 100 Feet
  • 26-344 - 14 Gauge Cross-Link Primary Wire Red - 100 Feet
  • 26-348 - 14 Gauge Cross-Link Primary Wire Black - 100 Feet
  • 26-364 - 16 Gauge Cross-Link Primary Wire Red - 100 Feet
  • 26-368 - 16 Gauge Cross-Link Primary Wire Black - 100 Feet
  • ASN-345 - Enduralon™ Butt Connector 22 - 18 AWG - Qty. 25
  • B-523-06 - Enduralon™ #4 - 6 Ring Terminal 16 - 14 AWG - Qty. 10
  • B-539-10 - Enduralon™ #8 - 10 Ring Terminal 16 - 14 AWG - Qty. 25
  • B-525-14 - Enduralon™ #12 - 1/4" Ring Terminal 16 - 14 AWG - Qty. 25
  • B-518-38 - Enduralon™ 5/16" - 3/8" Ring Terminal 16 - 14 AWG - Qty. 25
  • BSS-3210-NB - Enduralon™ #10 Snap Spade Terminal 16 - 14 AWG - Qty. 25
  • BF-30-NBL - Enduralon™ Insulated Female 1/4" Quick Slide Terminal 16 - 14 AWG - Qty. 10
  • BM-30-NBL - Enduralon™ Insulated Male 1/4" Quick Slide Terminal 16 - 14 AWG - Qty. 10
  • B-572-BL - Enduralon™ Standard Female 1/4" Quick Slide Terminal 16 - 14 AWG - Qty. 10
  • BMCT-5 - Enduralon™ Standard Male 1/4" Quick Slide Terminal 16 - 14 AWG - Qty. 10
  • BSN-331 - Enduralon™ Butt Connector 16 - 14 AWG - Qty. 50
  • CSN-346 - Enduralon™ Butt Connector 12 - 10 AWG - Qty. 25
Product Documents
P65 Warning

Product Specification

Brand:  Kimball Midwest Approved Vendor
Finish:  Electro-Tin Plated
Installation:  Crimp
Material:  Electrolytic Copper Contacts
Maximum Operating Temperature:  250 °F
Minimum Operating Temperature:  -40 °F
Number of Pieces:  250
Storage Type:  12-Compartment Drawer
Style:  Insulated
Subcategory:  Wire & Terminal Assortments
Voltage:  600V
Wire Diameter:  22 - 10 AWG
