Nylon Terminal and Wire Assortment

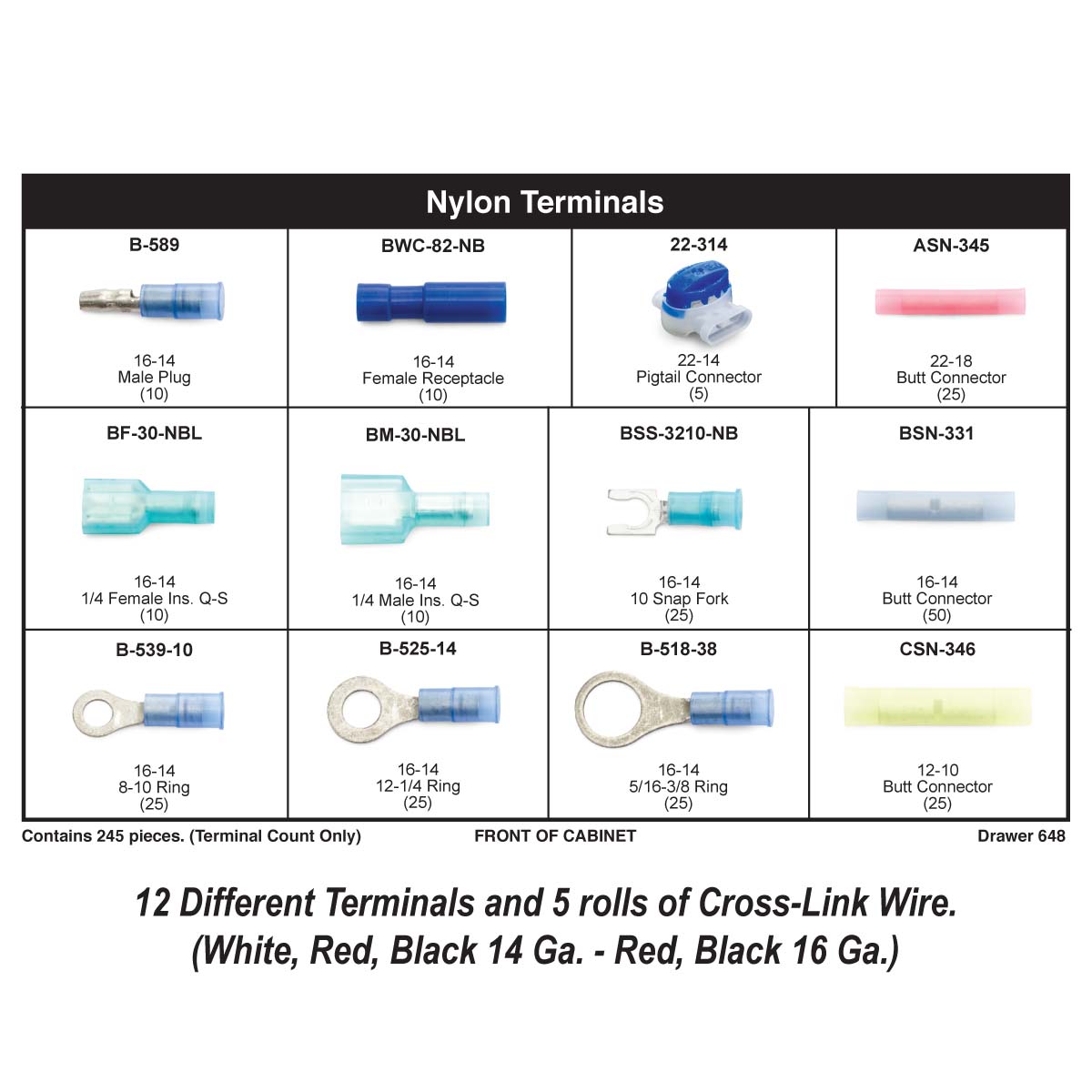

Nylon Terminals Cross Link Wire with Wire and Terminal Caddy

Package Quantity: 1

Package Weight: 62.6 lbs

Item: 40239

To place an order, please login or register.

Enduralon™ Terminals
  • Outstanding durability, temperature resistance and dielectric strength from Enduralon™ Nylon Insulation.
  • Wires insert smoothly without hang-up into special funnel shaped barrels for fast and easy installation.
  • Insulock™ grip sleeves built into the terminal barrel allows a second crimp that locks the barrel onto the wire insulation to prevent wire pull-out failures.
  • Widest operating temperature range: -40°F to 250°F continuous; up to 350°F intermittent.
  • 600 volt rating on ring, hook and spade terminals.

SXL Primary Wire

  • Superior resistance to weather, abrasion, temperature extremes and chemicals.
  • Extreme durability extends life and reduces replacement.
  • OEM on heavy duty equipment and vehicles.
  • Premium stranded copper conductors.
  • Temperature range: -60° to 350°F.
  • Conforms to SAE specification J1128 and to ATA specifications.
# of Pieces: 245
Brand: Kimball Midwest Approved Vendor
Color: Red, Blue, Yellow
Finish: Electro-Tin Plated
Installation: Crimp
Insulation Material: Enduralon Nylon
Material: Electrolytic Copper Contacts
Operating Temperature: -40 to 250° F
Private Label: No
Shape: Assortment
Stud Size: Assortment
Style: Insulated
Voltage: 600V
Wire Diameter: 22-10


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Enduralon™ Terminals
  • Outstanding durability, temperature resistance and dielectric strength from Enduralon™ Nylon Insulation.
  • Wires insert smoothly without hang-up into special funnel shaped barrels for fast and easy installation.
  • Insulock™ grip sleeves built into the terminal barrel allows a second crimp that locks the barrel onto the wire insulation to prevent wire pull-out failures.
  • Widest operating temperature range: -40°F to 250°F continuous; up to 350°F intermittent.
  • 600 volt rating on ring, hook and spade terminals.

SXL Primary Wire

  • Superior resistance to weather, abrasion, temperature extremes and chemicals.
  • Extreme durability extends life and reduces replacement.
  • OEM on heavy duty equipment and vehicles.
  • Premium stranded copper conductors.
  • Temperature range: -60° to 350°F.
  • Conforms to SAE specification J1128 and to ATA specifications.
# of Pieces: 245
Brand: Kimball Midwest Approved Vendor
Color: Red, Blue, Yellow
Diameter: N/A
Finish: Electro-Tin Plated
Installation: Crimp
Insulation Material: Enduralon Nylon
Material: Electrolytic Copper Contacts
Operating Temperature: -40 to 250° F
Private Label: No
Shape: Assortment
Stud Size: Assortment
Style: Insulated
Tab Size: N/A
Voltage: 600V
Wire Diameter: 22-10


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
