Low-Peak Midget Mult-Fuse Assortment
Name:
Low-Peak Midget Mult-Fuse Assortment
Item #:
402844
Package Weight: 8.8 lbs
Product Details
- ECONOMICAL ALL PURPOSE, SPACE SAVING FUSE - Multi-purpose fuse capable of replacing a wide range of conventional fuse series.
- REDUCES INVENTORY - Lowers carrying costs and helps assure the correct fuse is always available.
- COMPACT SIZE - 13/32" x 1-1/2" with rejection tip.
- TIME DELAY - Avoids nuisance fuse openings from motor start-ups, ballasts, etc.
- SUPERIOR PROTECTION - Fast response under short-circuit conditions gives a high degree of current limitation and superior protection.
- FULL LOAD RATINGS - Fuse can be sized close to full load ratings for maximum overload and short-circuit protection.
- FAST ACTING OR TIME DELAY - Can be used anywhere a time-delay or fast-acting fuse is needed, making selection easier and reducing spare fuse inventories for a substantial cost reduction.
- 200,000A INTERRUPTING RATINGS - Maximum interrupting rating for available fault currents in today's large capacity systems. Helps ensure that future growth will not obsolete the system.
- Voltage Ratings - 600 Volts AC
- Interrupting Ratings - AC: 200,000 rms symmetrical amperes
- Approvals:
AC: UL listed, Std. 248-4, Class CC, Guide JDDZ, File E4273
CSA Certified C22.2 No. 248.4, Class 1422-02, File 53787
DC: 1/2- 2 8/10A and 20-30A, 20,000 AIR, UL 198L
150Vdc or less 3-15A, 20,000 AIR, UL 198L

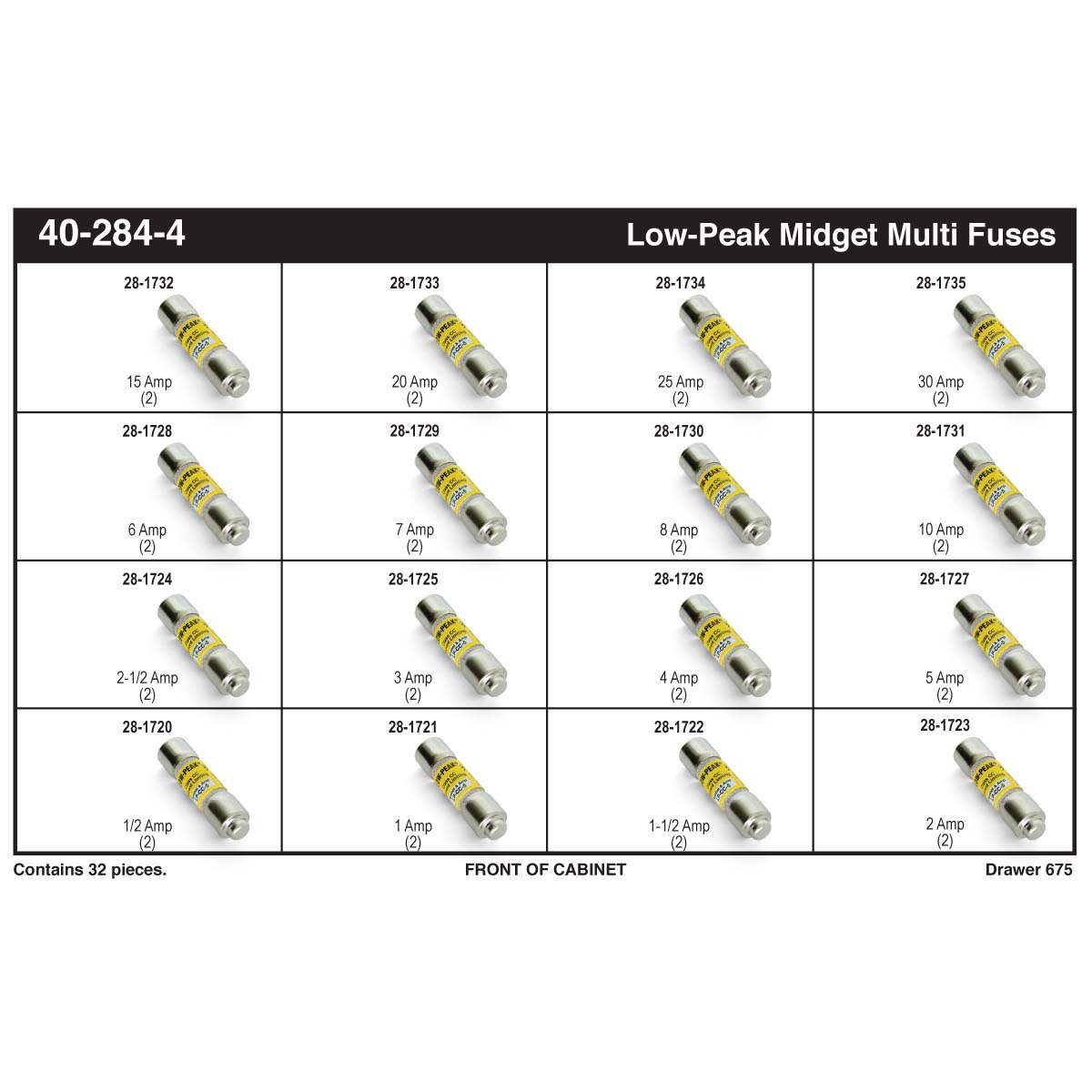

Assortment Contains:
- 675 - 16 Compartment Drawer - Qty. 1
- 28-1720 - 1/2 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1721 - 1 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1722 - 1-1/2 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1723 - 2 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1724 - 2-1/2 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1725 - 3 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1726 - 4 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1727 - 5 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1728 - 6 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1729 - 7 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1730 - 8 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1731 - 10 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1732 - 15 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1733 - 20 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1734 - 25 Amp Low-Peak Midget Multi-Fuse - Qty. 2
- 28-1735 - 30 Amp Low-Peak Midget Multi-Fuse - Qty. 2
Product Specification
Brand:
Kimball Midwest
Category:
Fuse Assortments - Industrial
Color:
Silver
Fuse Style:
Low-Peak Midget
Number of Pieces:
32
Regulations:
CSA Certified, UL Listed
Storage Type:
16-Compartment Drawer
Subcategory:
Fuse Assortments
Voltage:
600V
Warranty:
30 Day
