ADSR Indicating Power Fuse Assortment

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 42.2 lbs

Item: 402849

  • PINPOINTS OPEN FUSES IMMEDIATELY - gives instant visual indication of any down circuit.
  • NO COSTLY DOWNTIME- What could be 20 minutes or more of troubleshooting is now reduced to simply spotting the darkened window on the fuse.
  • EXCELLENT FOR CIRCUITS WITH HIGH IN-RUSH CURRENTS- motors, transformers, solenoids, fluorescent lighting - ideal for high efficiency motors which can cause other time delay fuses to open needlessly.
  • INCREASED SAFETY- eliminates hazards of poking around an energized panel to find an open circuit.
  • 300,000 AMP AC INTERRUPTING- to meet the future needs of increased available currents.
  • CURRENT LIMITING- Reduces damage caused by heating and magnetic effects of short-circuit currents.
  • SOLID STATE DUAL-ELEMENT TIME DELAY- 10 seconds minimum time delay at 500% of amperage rating eliminates unnecessary downtime caused by power surges or equipment demands. Fast acting short circuit protection can clear the circuit in .008 seconds or less.
  • USES LESS ENERGY AND RUNS COOLER- low resistance construction reduces power loss, lowering energy costs. Cooler running fuses give longer switch and component life.
  • Ideal Upgrade for Systems using FLS-R Class RK5 Fuses.
  • Voltage Rating - 600 Volts AC / DC
  • Interrupting Ratings:
    AC: 200,000 rms symmetrical amperes; 300,000 Amps self-certified by Littlefuse
    DC: 20,000 Amperes
  • Approvals:
    AC: UL listed Class RK5 fuse; CSA HRC1-R
    DC: 600 Volt MSHA Approved; UL 198M

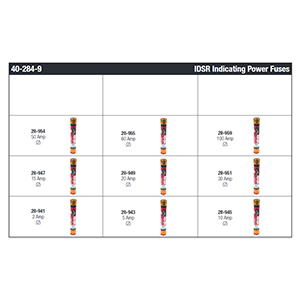

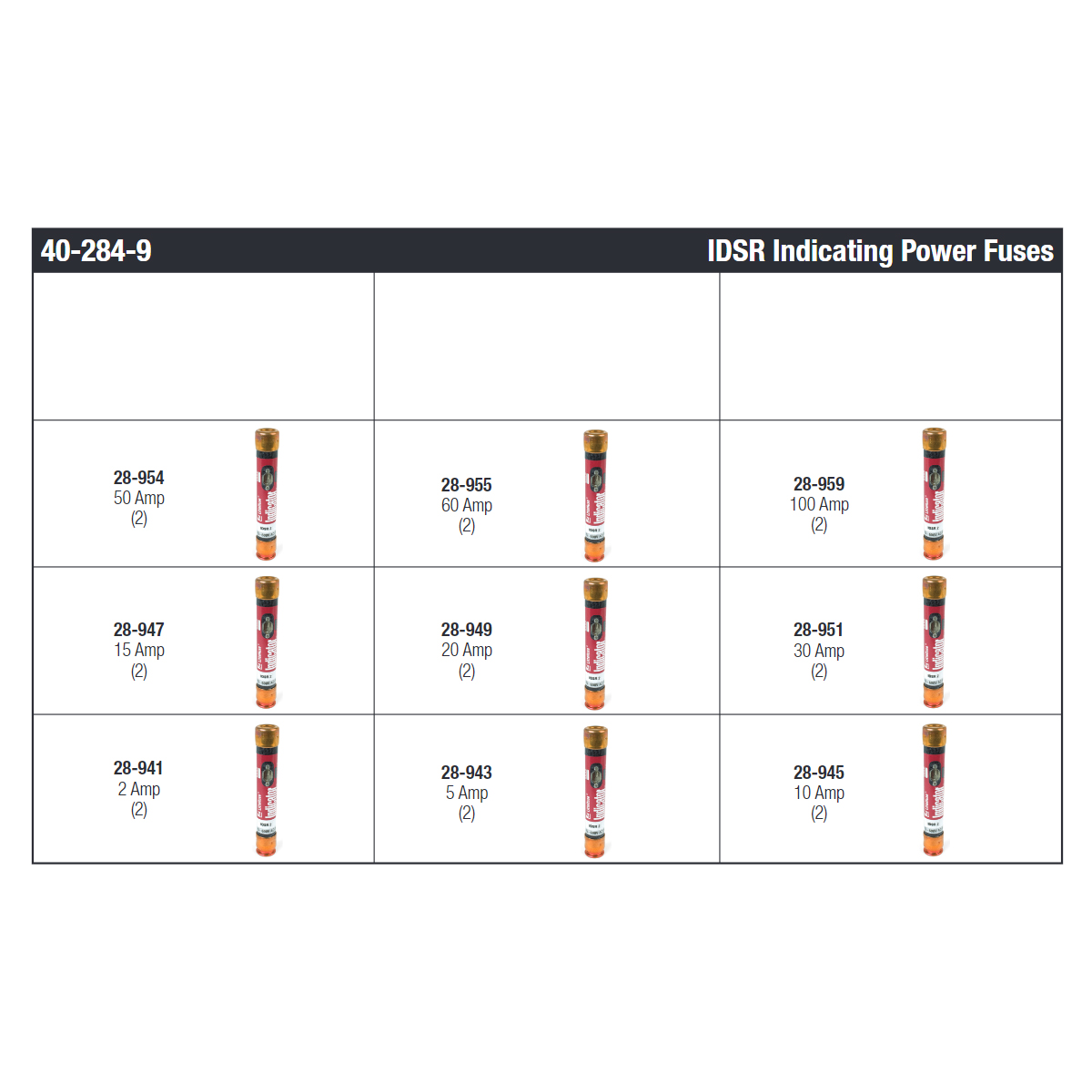

Kit Contains:

  • 28-941 - 2 Amp IDSR Indicating Fuse - Qty. 2
  • 28-943 - 5 Amp IDSR Indicating Fuse - Qty. 2
  • 28-945 - 10 Amp IDSR Indicating Fuse - Qty. 2
  • 28-947 - 15 Amp IDSR Indicating Fuse - Qty. 2
  • 28-949 - 20 Amp IDSR Indicating Fuse - Qty. 2
  • 28-951 - 30 Amp IDSR Indicating Fuse - Qty. 2
  • 28-954 - 50 Amp IDSR Indicating Fuse - Qty. 2
  • 28-955 - 60 Amp IDSR Indicating Fuse - Qty. 2
  • 28-959 - 100 Amp IDSR Indicating Fuse - Qty. 2
