Grade 5 (USS) Hex Head Cap Screw 120 Hole Bin Assortment (1/4" - 3/4")

Name: Grade 5 (USS) Hex Head Cap Screw 120 Hole Bin Assortment (1/4" - 3/4")
Brand: Kimball Midwest
SKU: 403553

Digital Catalog View Catalog

Product Details

Marked with 3 radial lines to identify as Grade 5.
Meet all tolerances specified by American standards.
Meet all the rigid specs set by the Industrial Fastener Institute.
Washer face under the head to assure a smooth bearing surface.
Chamfered tip to assure a prompt, fast assembly.
Zinc plated.
Made in the U.S.A.

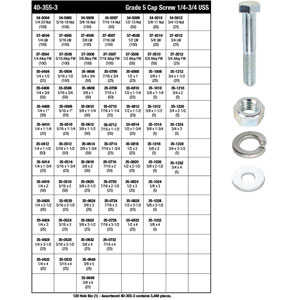

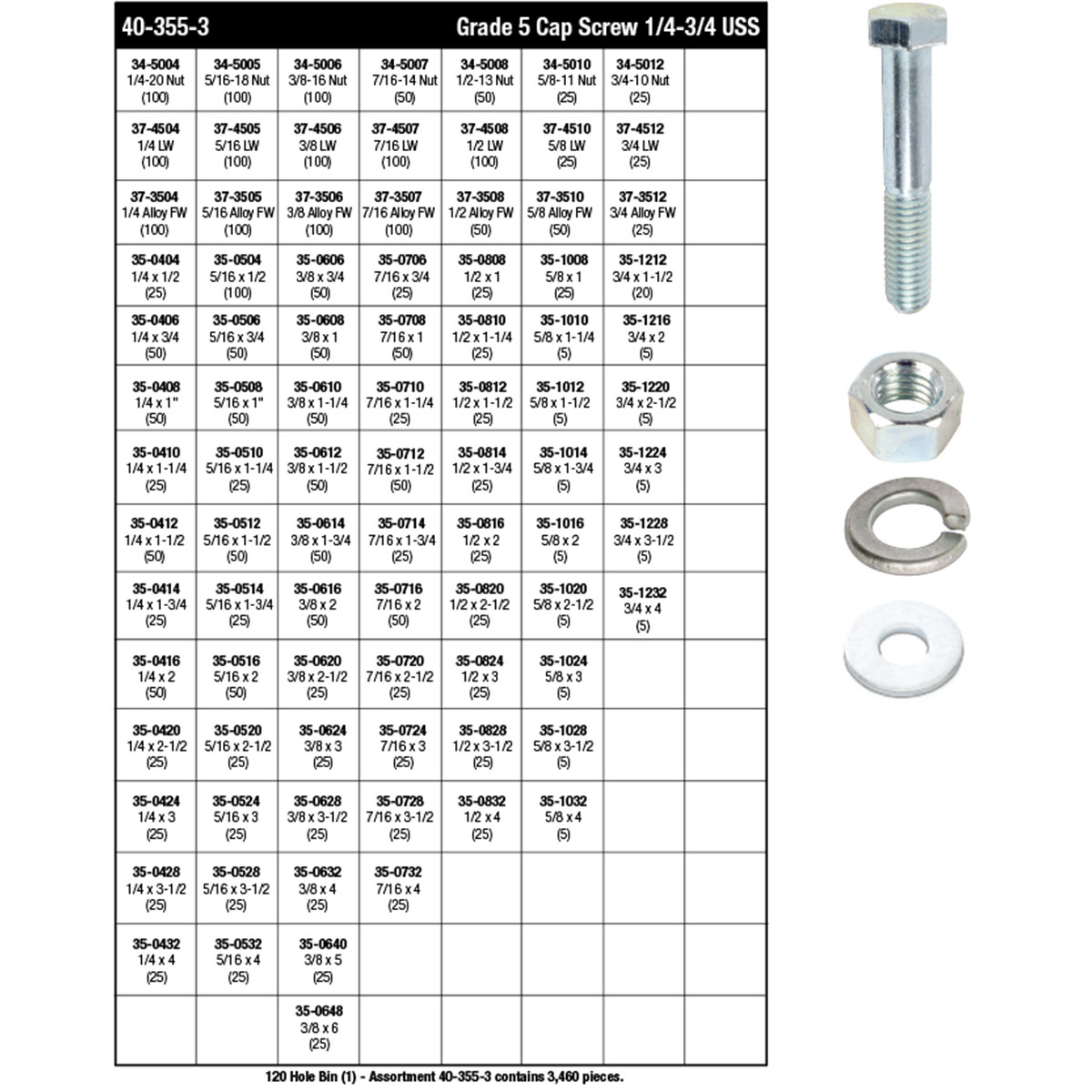

Assortment Contains:

631 - 1200 Compartment Bin - Qty. 1
34-5004 - 1/4"-20 Grade 5 (USS) Hex Nut - Qty. 100
34-5005 - 5/16"-18 Grade 5 (USS) Hex Nut - Qty. 100
34-5006 - 3/8"-16 Grade 5 (USS) Hex Nut - Qty. 100
34-5007 - 7/16"-14 Grade 5 (USS) Hex Nut - Qty. 50
34-5008 - 1/2"-13 Grade 5 (USS) Hex Nut - Qty. 50
34-5010 - 5/8"-11 Grade 5 (USS) Hex Nut - Qty. 25
34-5012 - 3/4"-10 Grade 5 (USS) Hex Nut - Qty. 25
35-0404J - 1/4"-20 x 1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0406J - 1/4"-20 x 3/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0408J - 1/4"-20 x 1" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0410J - 1/4"-20 x 1-1/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0412J - 1/4"-20 x 1-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0414J - 1/4"-20 x 1-3/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0416J - 1/4"-20 x 2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0420J - 1/4"-20 x 2-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0424J - 1/4"-20 x 3" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0428 - 1/4"-20 x 3-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0432 - 1/4"-20 x 4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0504 - 5/16"-18 x 1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 100
35-0506J - 5/16"-18 x 3/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0508J - 5/16"-18 x 1" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0510J - 5/16"-18 x 1-1/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0512J - 5/16"-18 x 1-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0514J - 5/16"-18 x 1-3/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0516J - 5/16"-18 x 2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0520J - 5/16"-18 x 2-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0524J - 5/16"-18 x 3" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0528 - 5/16"-18 x 3-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0532 - 5/16"-18 x 4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0606J - 3/8"-16 x 3/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0608J - 3/8"-16 x 1"Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0610J - 3/8"-16 x 1-1/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0612J - 3/8"-16 x 1-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0614J - 3/8"-16 x 1-3/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0616J - 3/8"-16 x 2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0620J - 3/8"-16 x 2-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0624J - 3/8"-16 x 3" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0628 - 3/8"-16 x 3-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0632 - 3/8"-16 x 4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0640 - 3/8"-16 x 5" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0648 - 3/8"-16 x 6" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0706J - 7/16"-14 x 3/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0708J - 7/16"-14 x 1" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0710J - 7/16"-14 x 1-1/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0712J - 7/16"-14 x 1-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0714J - 7/16"-14 x 1-3/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0716J - 7/16"-14 x 2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 50
35-0720J - 7/16"-14 x 2-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0724J - 7/16"-14 x 3" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0728 - 7/16"-14 x 3-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0732 - 7/16"-14 x 4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0808 - 1/2"-13 x 1" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0810 - 1/2"-13 x 1-1/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0812 - 1/2"-13 x 1-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0814 - 1/2"-13 x 1-3/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0816 - 1/2"-13 x 2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0820 - 1/2"-13 x 2-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0824 - 1/2"-13 x 3" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0828 - 1/2"-13 x 3-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-0832 - 1/2"-13 x 4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-1008 - 5/8"-11 x 1" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 25
35-1010J - 5/8"-11 x 1-1/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1012J - 5/8"-11 x 1-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1014J - 5/8"-11 x 1-3/4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1016J - 5/8"-11 x 2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1020J - 5/8"-11 x 2-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1024J - 5/8"-11 x 3" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1028J - 5/8"-11 x 3-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1032J - 5/8"-11 x 4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1212 - 3/4"-10 x 1-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 20
35-1216J - 3/4"-10 x 2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1220J - 3/4"-10 x 2-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1224J - 3/4"-10 x 3" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1228J - 3/4"-10 x 3-1/2" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
35-1232J - 3/4"-10 x 4" Grade 5 (USS) Hex Head Cap Screw - Zinc Plated - Qty. 5
37-3504 - 1/4" Grade 5 (USS) Flat Washer - Qty. 100
37-3505 - 5/16" Grade 5 (USS) Flat Washer - Qty. 100
37-3506 - 3/8" Grade 5 (USS) Flat Washer - Qty. 100
37-3507 - 7/16" Grade 5 (USS) Flat Washer - Qty. 100
37-3508 - 1/2" Grade 5 (USS) Flat Washer - Qty. 50
37-3510 - 5/8" Grade 5 (USS) Flat Washer - Qty. 50
37-3512 - 3/4" Grade 5 (USS) Flat Washer - Qty. 25
37-4504 - 1/4" Grade 5 Split Lock Washer - Qty. 100
37-4505 - 5/16" Grade 5 Split Lock Washer - Qty. 100
37-4506 - 3/8" Grade 5 Split Lock Washer - Qty. 100
37-4507 - 7/16" Grade 5 Split Lock Washer - Qty. 100
37-4508 - 1/2" Grade 5 Split Lock Washer - Qty. 100
37-4510 - 5/8" Grade 5 Split Lock Washer - Qty. 25
37-4512 - 3/4" Grade 5 Split Lock Washer - Qty. 25

Product Specification

Brand: Kimball Midwest

Category: Bolt & Screw Assortments

Color: Silver

Diameter: 1/4" - 3/4"

Finish: Zinc Plated

Grade: 5

Head Height: Assorted

Head Style: Hex Head

Length: 1/2" - 6"

Material: Carbon Steel

Measurement Type: USS

Number of Pieces: 3,460

Series: Bin

Storage Type: 120-Hole Bin

Subcategory: Hex Head Cap Screws

Thread Type: Coarse

Warranty: 30 Day
