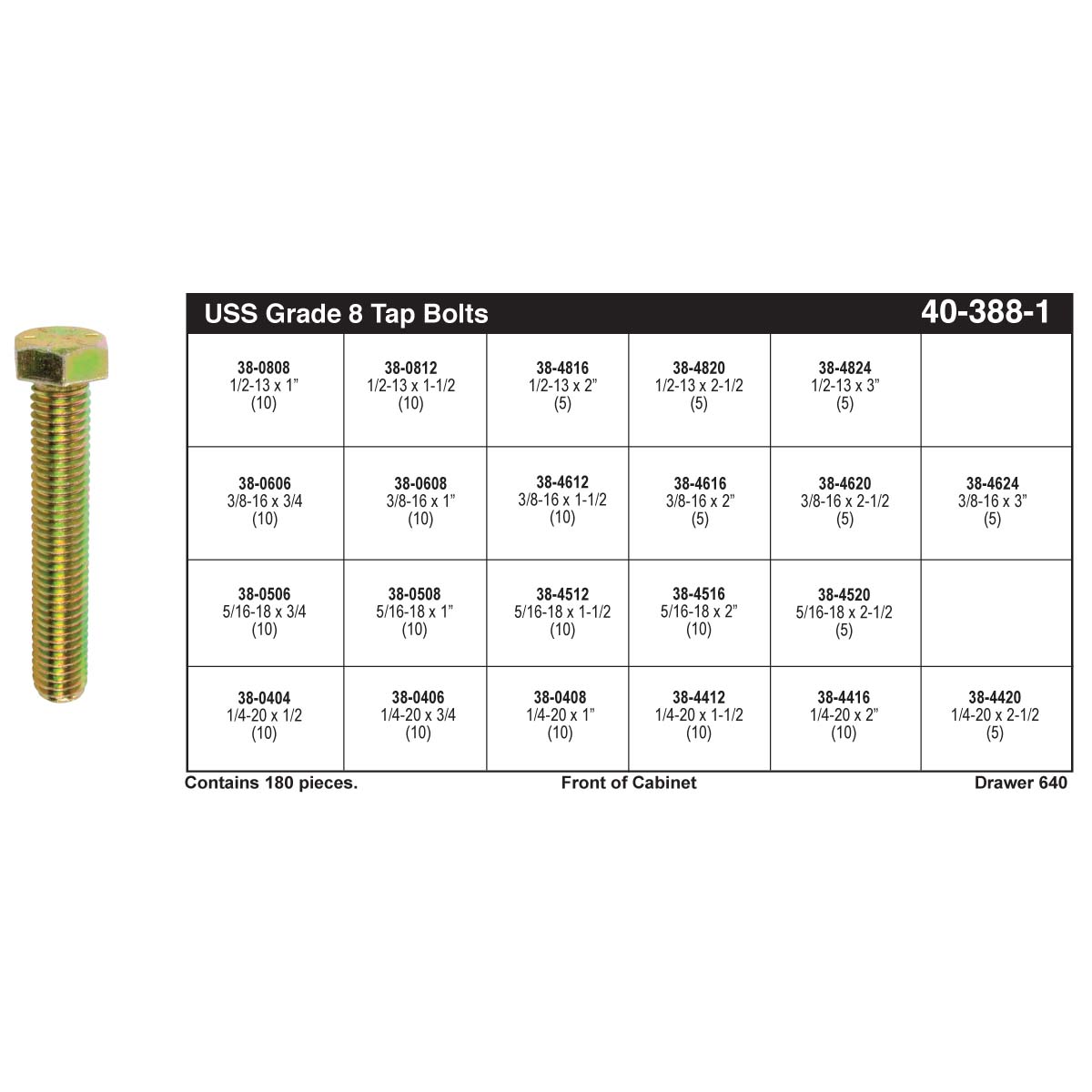

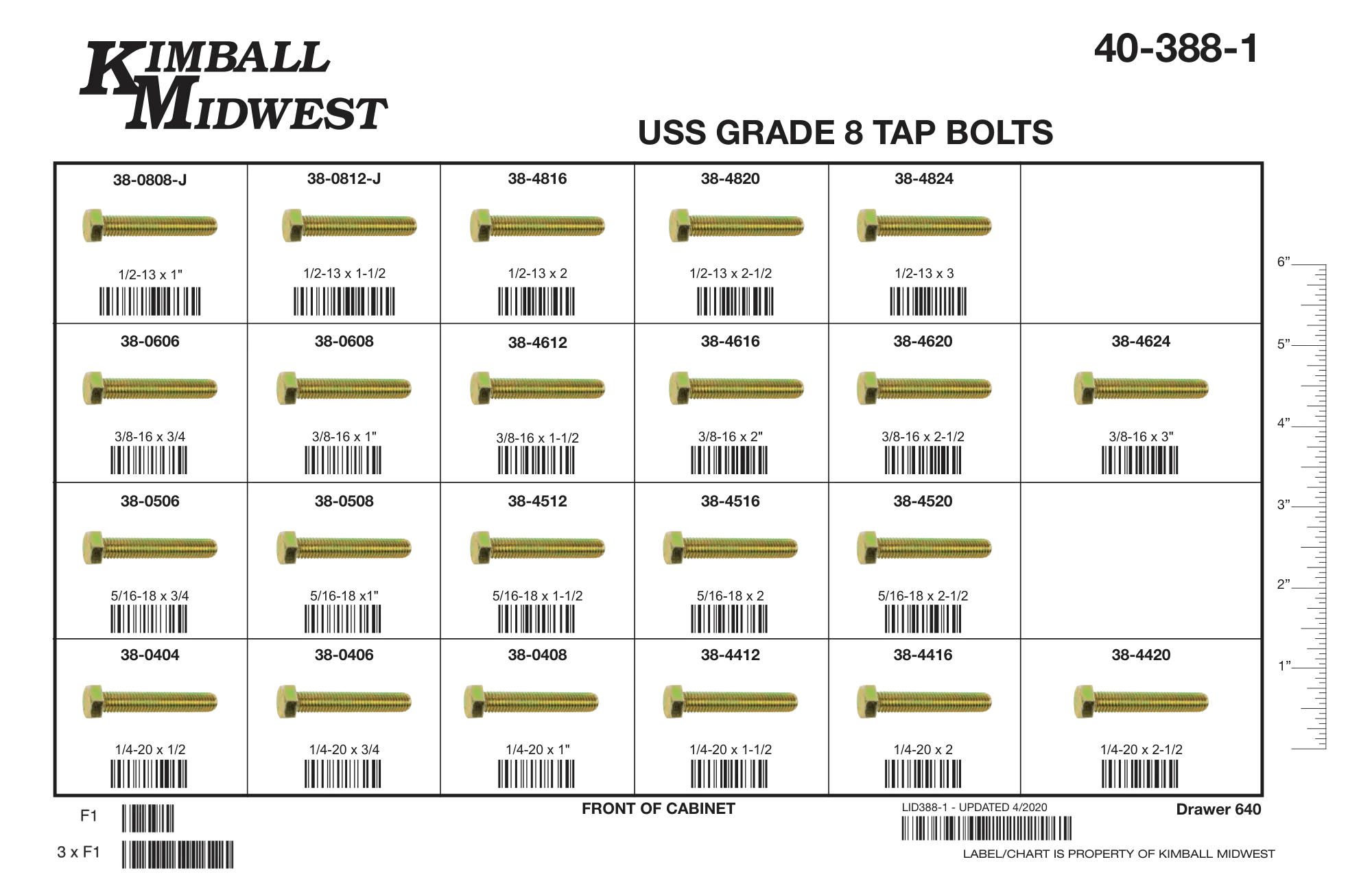

Fully Threaded Hex Head Cap Screw (Tap Bolt) Assortment (1/4 - 1/2)
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Grade 8 Coarse Thread (USS) Zinc Yellow Trivalent Plated
Package Quantity: 1
Package Weight: 19 lbs
Item: 403881
- 100% made in the U.S.A. from raw material melted and rolled in the U.S.A.
- 100% lot traceability back to raw material.
- 20% higher head provides increased wrenchability.
- Special high strength chrome alloy steel.
- 30° head point provides easier alignment in a threaded hole or with a hex nut.
- Roll formed threads with 60° flank angle provide superior fatigue resistance.
- UN Class 2A formed thread fit; post plating is considered Class 3A per ASME B1.1-2003 (R2008) and provides enhanced thread engagement.
- RoHS Compliant Zinc-Yellow Trivalent Plated.
- Tensile strength 150,000 P.S.I. minimum.
Please note that supply chain shortages may require us to temporarily substitute some non-domestic products, including in assortments.
| # of Pieces: | 180 |
| Brand: | Kimball Midwest |
| Finish: | Zinc, Yellow Trivalent |
| Grade: | 8 |
| Head Style: | Hex Head |
| Material: | Medium Carbon Alloy Steel |
| Private Label: | Yes |
| Tensile Strength (PSI): | 150,000 P.S.I. min. |
| Thread Type: | Coarse (USS) |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- 100% made in the U.S.A. from raw material melted and rolled in the U.S.A.
- 100% lot traceability back to raw material.
- 20% higher head provides increased wrenchability.
- Special high strength chrome alloy steel.
- 30° head point provides easier alignment in a threaded hole or with a hex nut.
- Roll formed threads with 60° flank angle provide superior fatigue resistance.
- UN Class 2A formed thread fit; post plating is considered Class 3A per ASME B1.1-2003 (R2008) and provides enhanced thread engagement.
- RoHS Compliant Zinc-Yellow Trivalent Plated.
- Tensile strength 150,000 P.S.I. minimum.
Please note that supply chain shortages may require us to temporarily substitute some non-domestic products, including in assortments.
| # of Pieces: | 180 |
| Brand: | Kimball Midwest |
| Diameter: | N/A |
| Finish: | Zinc, Yellow Trivalent |
| Grade: | 8 |
| Head Style: | Hex Head |
| Length: | N/A |
| Material: | Medium Carbon Alloy Steel |
| Private Label: | Yes |
| Tensile Strength (PSI): | 150,000 P.S.I. min. |
| Thread Pitch: | N/A |
| Thread Type: | Coarse (USS) |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
