• TYPICAL APPLICATION: Hydraulic, instrumentation and chemical processing. Highly recommended for high pressure applications.
• PRESSURE: Up to 10,000 P.S.I. depending on tube size.
• VIBRATION RATING: Excellent resistance.
• TEMPERATURE RANGE: -65°F to +400°F at maximum operating pressures.
• MATERIAL: 90 Durometer.
• USED WITH: Aluminum, hard or half hard copper, steel, stainless steel, monel, titanium and extra heavy wall tubing that cannot be flared.
• ADVANTAGES: An excellent high pressure fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
• CONFORMANCE: Meets ASA, ASME, SAE and MS specifications and standards.

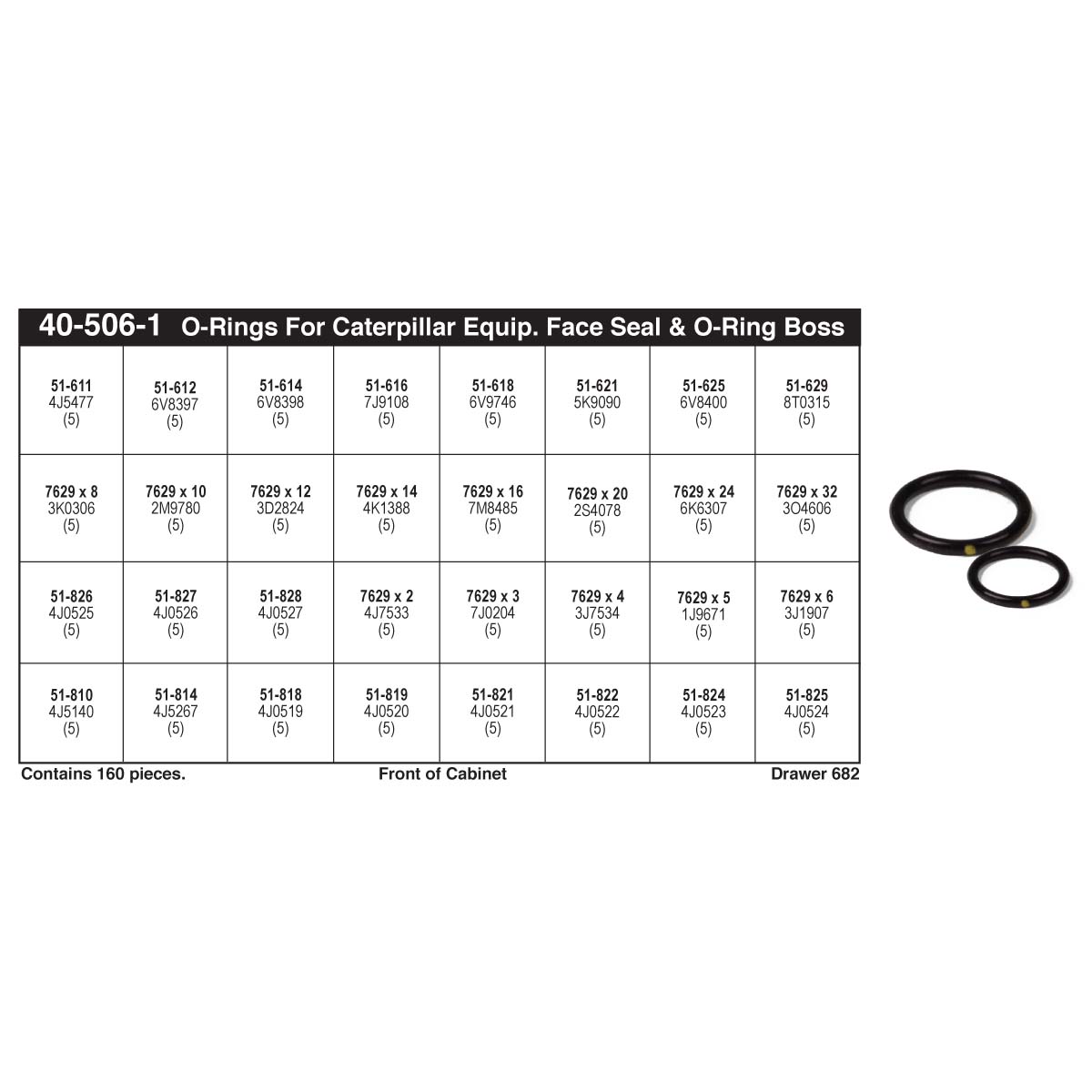

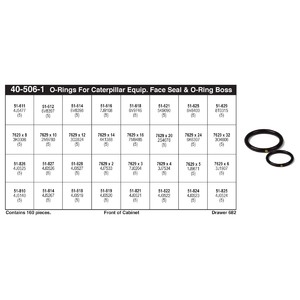

Assortment Contains:

• 682 - 32 Compartment Drawer - Qty. 1
• 51-611 - 5/16" x 1/16" x 7/16" Buna-N 90 O-Ring (#011) - Qty. 5
• 51-612 - 3/8" x 1/16" x 1/2" Buna-N 90 O-Ring (#012) - Qty. 5
• 51-614 - 1/2" x 1/16" x 5/8" Buna-N 90 O-Ring (#014) - Qty. 5
• 51-616 - 5/8" x 1/16" x 3/4" Buna-N 90 O-Ring (#016) - Qty. 5
• 51-618 - 3/4" x 1/16" x 7/8" Buna-N 90 O-Ring (#018) - Qty. 5
• 51-621 - 15/16" x 1/16" x 1-1/16" Buna-N 90 O-Ring (#021) - Qty. 5
• 51-625 - 1-3/16" x 1/16" x 1-5/16" Buna-N 90 O-Ring (#025) - Qty. 5
• 51-629 - 1-1/2" x 1/16" x 1-5/8" Buna-N 90 O-Ring (#029) - Qty. 5
• 51-810 - 3/4" x 1/8" x 1" Buna-N 90 O-Ring (#210) - Qty. 5
• 51-814 - 1" x 8" x 1-1/4" Buna-N 90 O-Ring (#214) - Qty. 5
• 51-818 - 1-1/4" x 1/8" x 1-1/2" Buna-N 90 O-Ring (#218) - Qty. 5
• 51-819 - 1-5/16" x 1/8" x 1-9/16" Buna-N 90 O-Ring (#219) - Qty. 5
• 51-821 - 1-7/16" x 1/8" x 1-11/16" Buna-N 90 O-Ring (#221) - Qty. 5
• 51-822 - 1-1/2" x 1/8" x 1-3/4" Buna-N 90 O-Ring (#222) - Qty. 5
• 51-824 - 1-3/4" x 1/8" x 2" Buna-N 90 O-Ring (#224) - Qty. 5
• 51-825 - 1-7/8" x 1/8" x 2-1/8" Buna-N 90 O-Ring (#225) - Qty. 5
• 51-826 - 2" x 1/8" x 2-1/4" Buna-N 90 O-Ring (#226) - Qty. 5
• 51-827 - 2-1/8" x 1/8" x 2-3/8" Buna-N 90 O-Ring (#227) - Qty. 5
• 51-828 - 2-1/4" x 1/8" x 2-1/2" Buna-N 90 O-Ring (#228) - Qty. 5
• 7629X10 - 5/8" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X12 - 3/4" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X14 - 7/8" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X16 - 1" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X2 - 1/8" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X20 - 1-1/4" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X24 - 1-1/2" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X3 - 3/16" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X32 - 2" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X4 - 1/4" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X5 - 5/16" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X6 - 3/8" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
• 7629X8 - 1/2" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
