Self-Tapping Grease Fitting Assortment

Self-Tapping Grease Fitting Assortment

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 8.4 lbs

Item: 405231

  • Self-Threading fittings, have special tapered drive threads for fast production line installation in untapped hole, saving the tapping cost (use in heat-treated parts is not recommended).
  • A leakproof permanent seal is formed because the installation force causes the material of the untapped hole to reshape conforming to the fittings contour.
  • Thread forming fittings can be replaced by any standard threaded fitting or by another thread-forming fitting because it realigns damaged threads in existing holes.
  • Spherical base forms leak-proof seal.
  • Steel Fittings: Bodies made of AISI 12L14 steel, carbo-nitrated and case hardened.
  • Fittings have 2 notches on the edge of the hex for easy identification.
  • Concave head for easy disconnect.
  • Completely universal.
  • Ball in tip to keep out dirt.
  • Enlarged inner passage admits more lubricant.
  • Balanced action spring retracts easily to allow maximum lube flow and holds ball firmly in sealing position.

Note: 1/4-28 fittings require 15/64" drill, 1/8 NPT fittings require 3/8" drill.

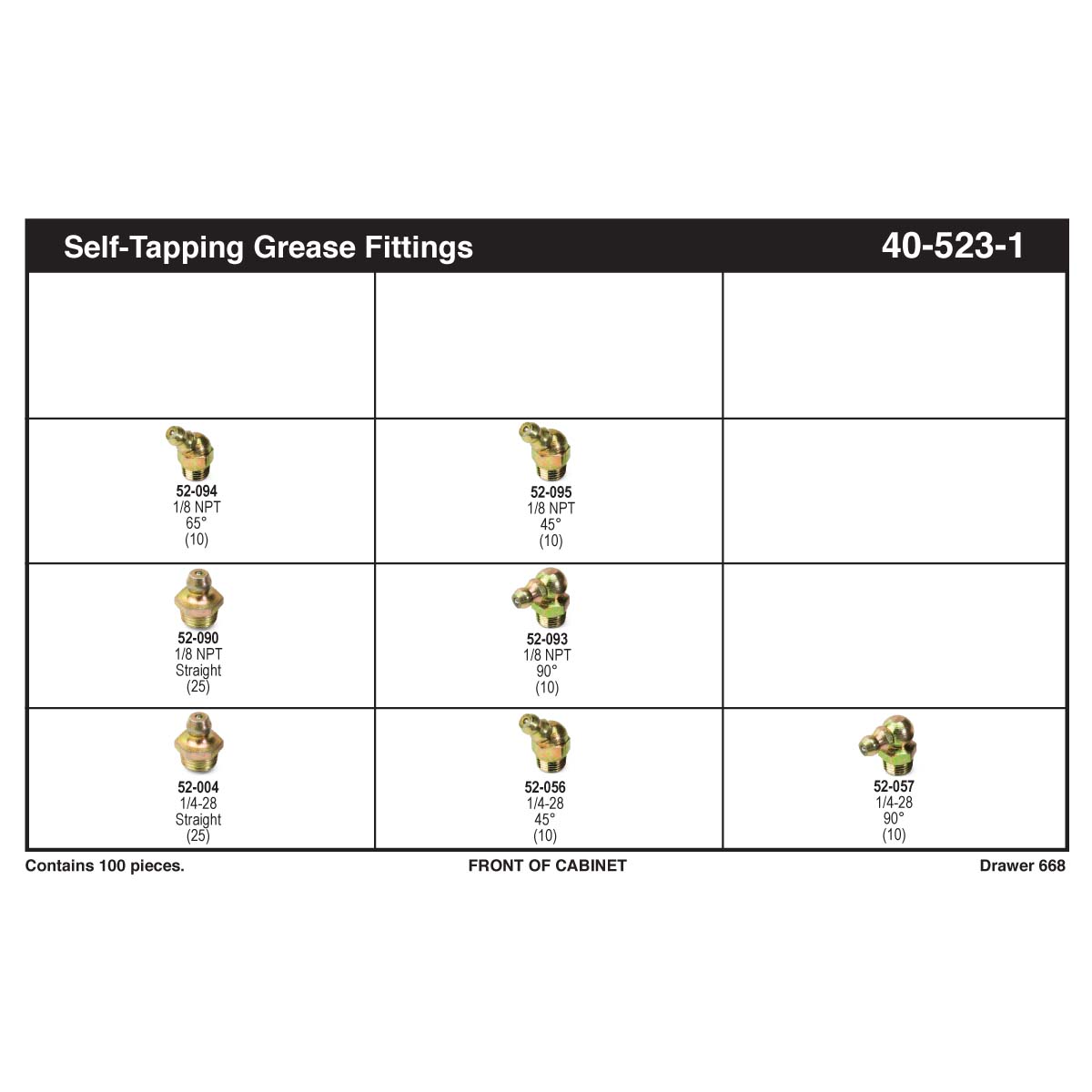

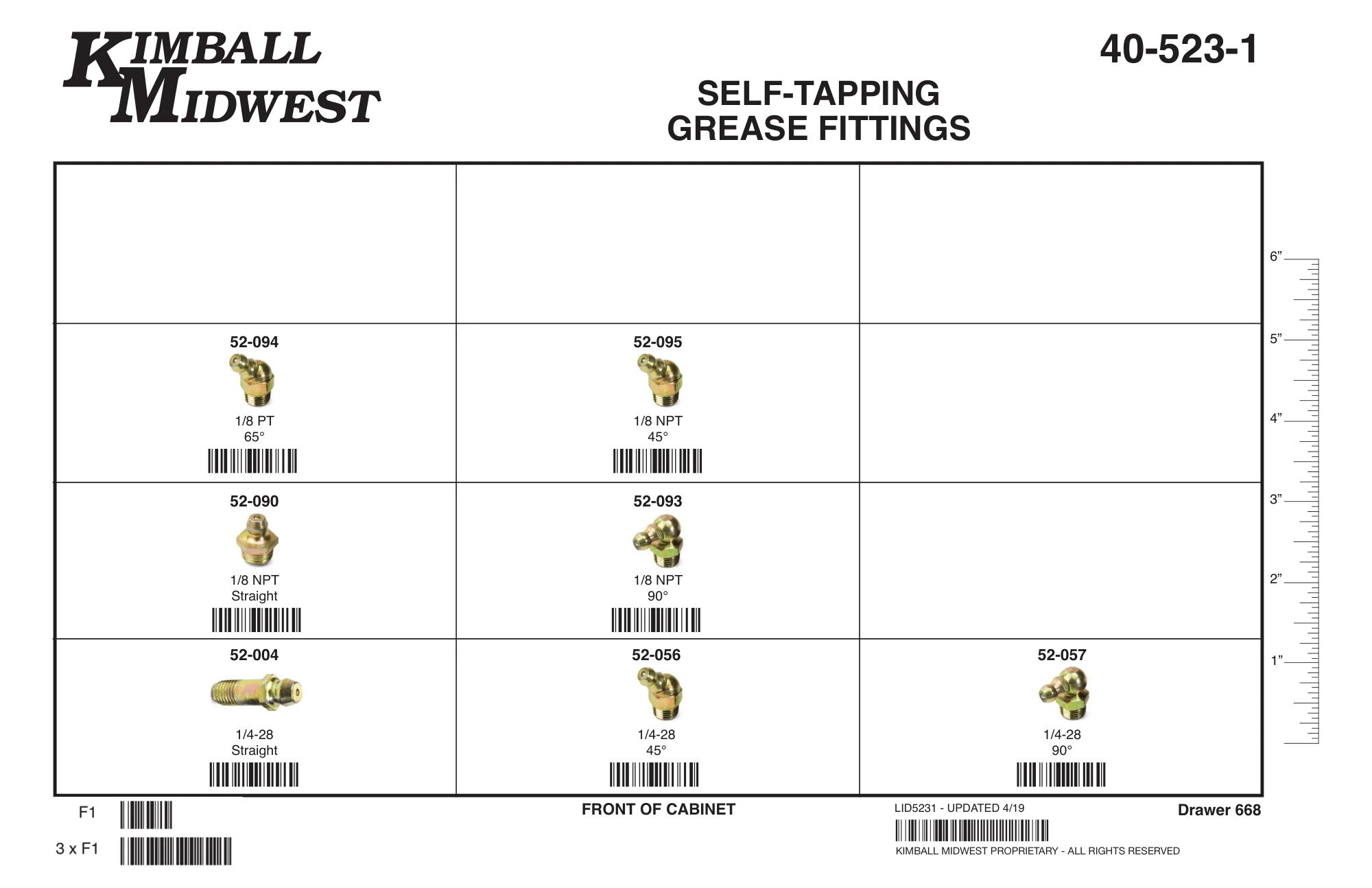

Kit Contains:

  • 52-090 - 1/8 NPT Self-Tapping Grease Fitting - Qty. 25
  • 52-093 - 1/8 NPT 90° Self-Tapping Grease Fitting - Qty. 10
  • 52-094 - 1/8 NPT 65° Self-Tapping Grease Fitting - Qty. 10
  • 52-095 - 1/8 NPT 45° Self-Tapping Grease Fitting - Qty. 10
  • 52-004 - 1/4-28 Self-Tapping Grease Fitting - Qty. 25
  • 52-056 - 1/4-28 45° Self-Tapping Grease Fitting - Qty. 10
  • 52-057 - 1/4-28 90° Self-Tapping Grease Fitting - Qty. 10
    • Brand: Kimball Midwest Approved Vendor
    Diameter: Assorted
    Finish: Zinc Yellow Plated
    Head Style: Standard
    Material: Carbon Steel
    Maximum Pressure: 8000 P.S.I.
    Number of Pieces: 100
    Private Label: No
    Shape: Assortment
    Thread Type: Self-Tapping


    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
