Lead-Free Brass Pipe Fittings Assortment
Name:
Lead-Free Brass Pipe Fittings Assortment
Item #:
405515
Package Weight: 12.1 lbs
Product Details
- LEAD-FREE 2745 BRASS ALLOY - Lead-free alloy will not leach lead into water supplies like conventional brass fitting alloys can.
- INCREASED SAFETY - Helps reduce the health dangers associated with lead contamination.
- MEETS CURRENT AND PENDING REGULATORY REQUIREMENTS - Meets Chan Bill (AB1953); California SB1334 and SB1395; NSF/ANSI Standard 61, Annex G; Senate Bill (S.3874), Public Law (111-380) and other new federal standards effective 1/4/2014.
- MAINTAINS COMPLIANCE - Ideal for use on all wetted surfaces (surfaces that will come in contact with water for human consumption).
- TYPICAL SPECIFICATIONS:
Pressure: Up to 1200 P.S.I. depending on tube size.
Temperature: -65°F to +250°F. - POSITIVE IDENTIFICATION - International Lead-Free identifying logo stamped on fitting bodies (“V” notch on compression sleeve flats).
- MADE IN THE U.S.A.

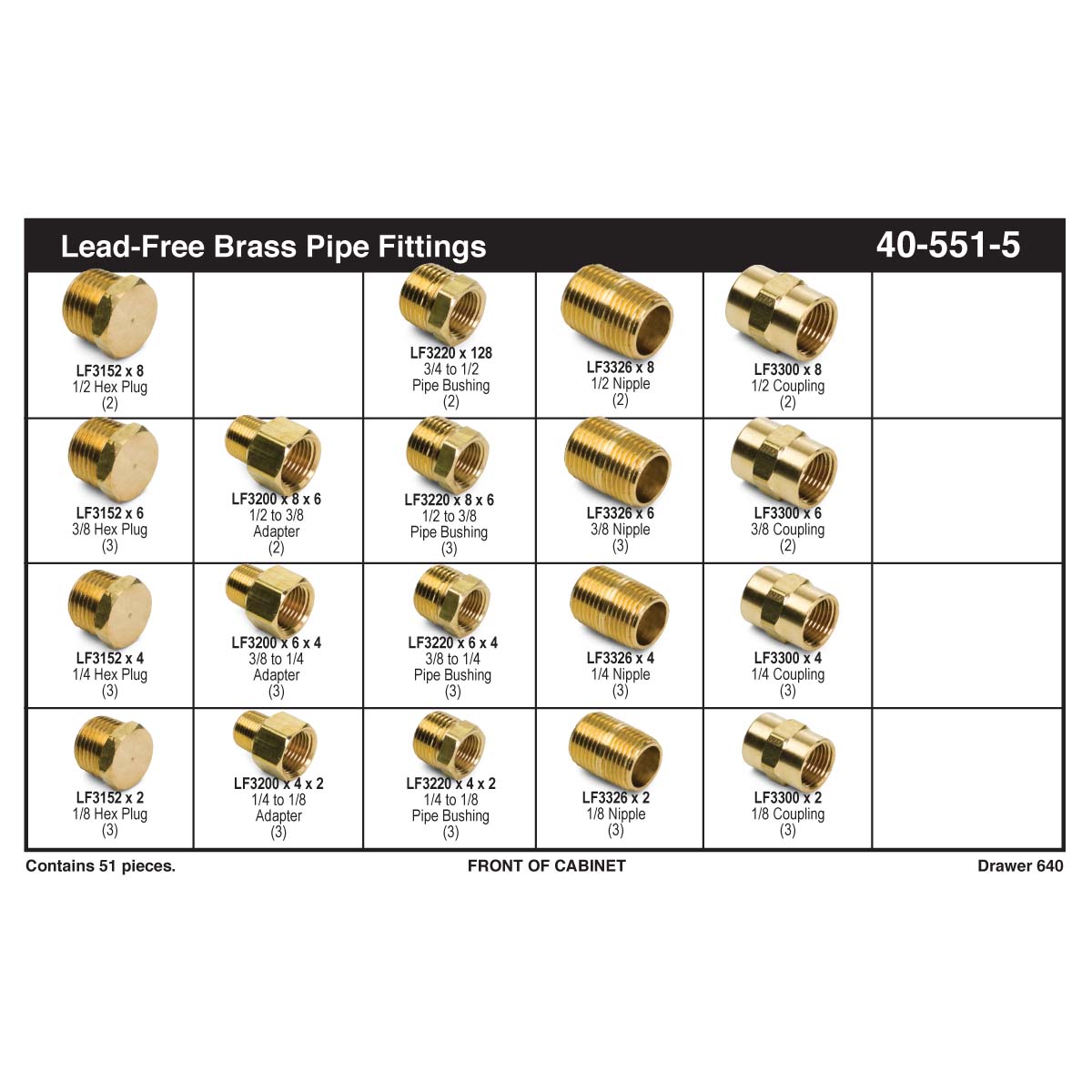

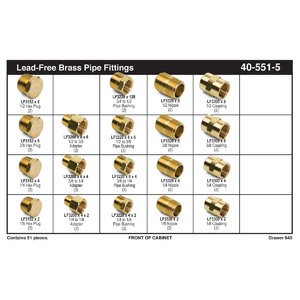

Assortment Contains:
- 640 - 24 Compartment Drawer - Qty. 1
- LF3152X2 - 1/8" Lead-Free Brass Pipe Hex Head Plug - Qty. 3
- LF3152X4 - 1/4" Lead-Free Brass Pipe Hex Head Plug - Qty. 3
- LF3152X6 - 3/8" Lead-Free Brass Pipe Hex Head Plug - Qty. 3
- LF3152X8 - 1/2" Lead-Free Brass Pipe Hex Head Plug - Qty. 2
- LF3200X4X2 - 1/4" x 1/8" Lead-Free Brass Pipe Adapter - Qty. 3
- LF3200X6X4 - 3/8" x 1/4" Lead-Free Brass Pipe Adapter - Qty. 3
- LF3200X8X6 - 1/2" x 3/8" Lead-Free Brass Pipe Adapter - Qty. 2
- LF3220X128 - 3/4" x 1/2" Lead-Free Brass Pipe Bushing - Qty. 2
- LF3220X4X2 - 1/4" x 1/8" Lead-Free Brass Pipe Bushing - Qty. 3
- LF3220X6X4 - 3/8" x 1/4" Lead-Free Brass Pipe Bushing - Qty. 3
- LF3220X8X6 - 1/2" x 3/8" Lead-Free Brass Pipe Bushing - Qty. 3
- LF3300X2 - 1/8" Lead-Free Brass Pipe Coupling - Qty. 3
- LF3300X4 - 1/4" Lead-Free Brass Pipe Coupling - Qty. 3
- LF3300X6 - 3/8" Lead-Free Brass Pipe Coupling - Qty. 2
- LF3300X8 - 1/2" Lead-Free Brass Pipe Coupling - Qty. 2
- LF3326X2 - 1/8" x 3/4" Lead-Free Brass Pipe Close Nipple - Qty. 3
- LF3326X4 - 1/4" x 7/8" Lead-Free Brass Pipe Close Nipple - Qty. 3
- LF3326X6 - 3/8" x 1" Lead-Free Brass Pipe Close Nipple - Qty. 3
- LF3326X8 - 1/2" x 1-1/8" Lead-Free Brass Pipe Close Nipple - Qty. 2
Product Specification
Brand:
Kimball Midwest
Category:
Brass & Steel Fitting Assortments
Material:
2745 Brass Alloy
Maximum Operating Temperature:
250 °F
Maximum Pressure:
1,200 psi
Minimum Operating Temperature:
-65 °F
Number of Pieces:
51
Storage Type:
24-Compartment Drawer
Subcategory:
Brass Fittings
Warranty:
30 Day
