• UNIVERSAL PIPE THREAD SYSTEM - Works with many different thread systems.
• INCH & METRIC PIPE IN ONE FITTING - Works with NPT pipe, British Standard Pipe Parallel (BSPP), British Standard Pipe Taper (BSPT), and all G threads.
• ELIMINATES GUESSWORK AND CROSS-THREADING - Prevents thread damage and makes assembly faster and more reliable.
• UNIQUE SEALING SURFACE - "Thread Face" seal provides positive sealing on all types of pipe fittings, while the threads securely hold mating parts together.
• FLOW CONTROL FITTINGS - Used to control the speed of pneumatic cylinders.
• EASY INSTALLATION - Instant connecting tube ends assure fast, accurate assembly.
• PRECISION CONTROL - Fine thread adjustment control screw provides highly accurate flow control.
• SPECIFICATIONS:
  Typical Application: Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
  Pressure: 0 - 250 P.S.I., Vacuum service
  Temperature Range: -0°F to 160°F.
  Body/Sleeve Material: Nickel Plated Brass
  Gripper Collet: Stainless Steel
  Thrust Ring: Polymer
  Sealing: O-Ring/Lip Seal Buna-N 70.
  Torque Specifications: 3.7 - 5.2 Ft-lbs
  Used With: PT230, PT240, PU340 tubing.

NOTE: These fittings are not designed to DOT standards and should not be used for air brake applications.

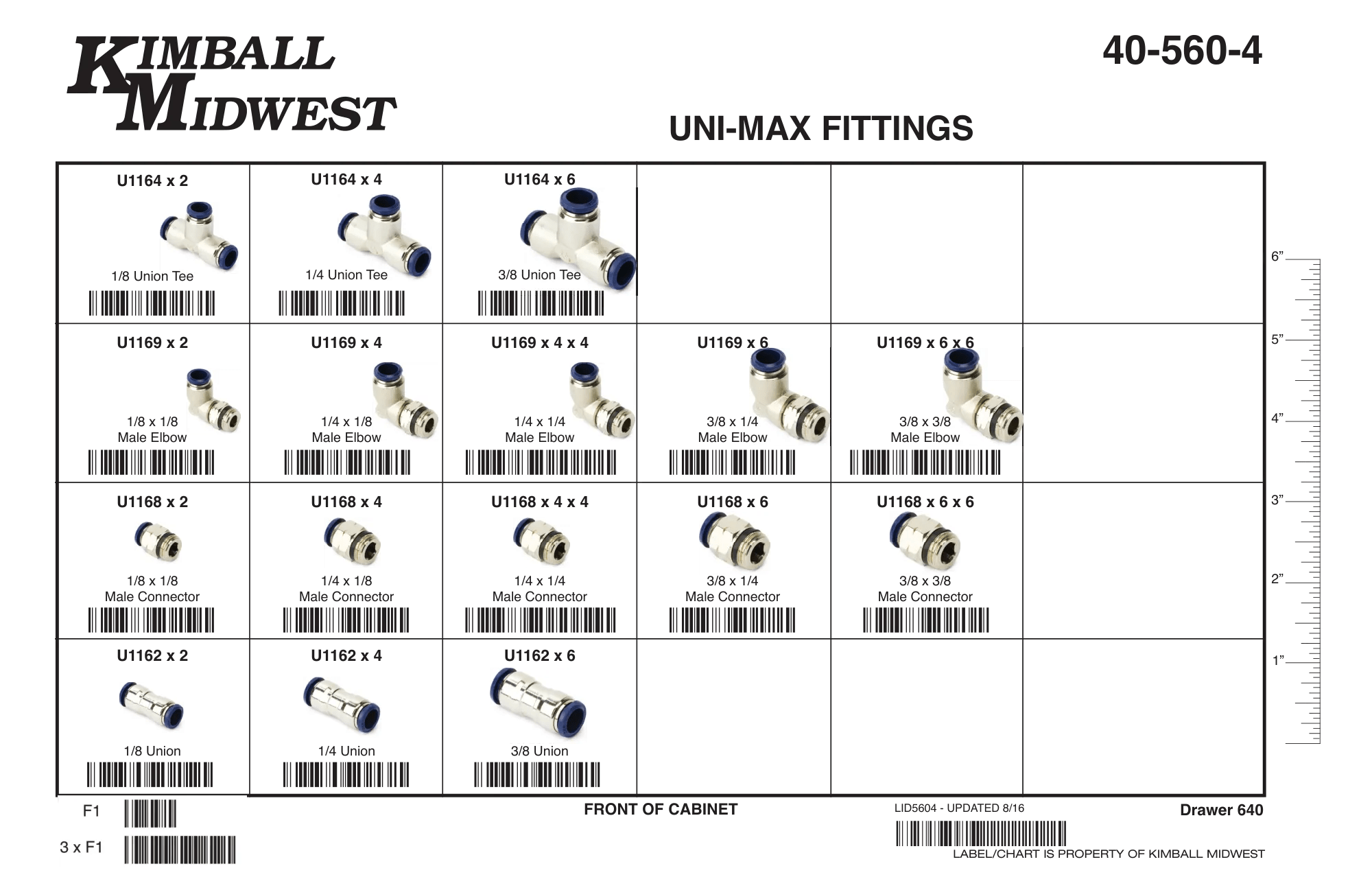

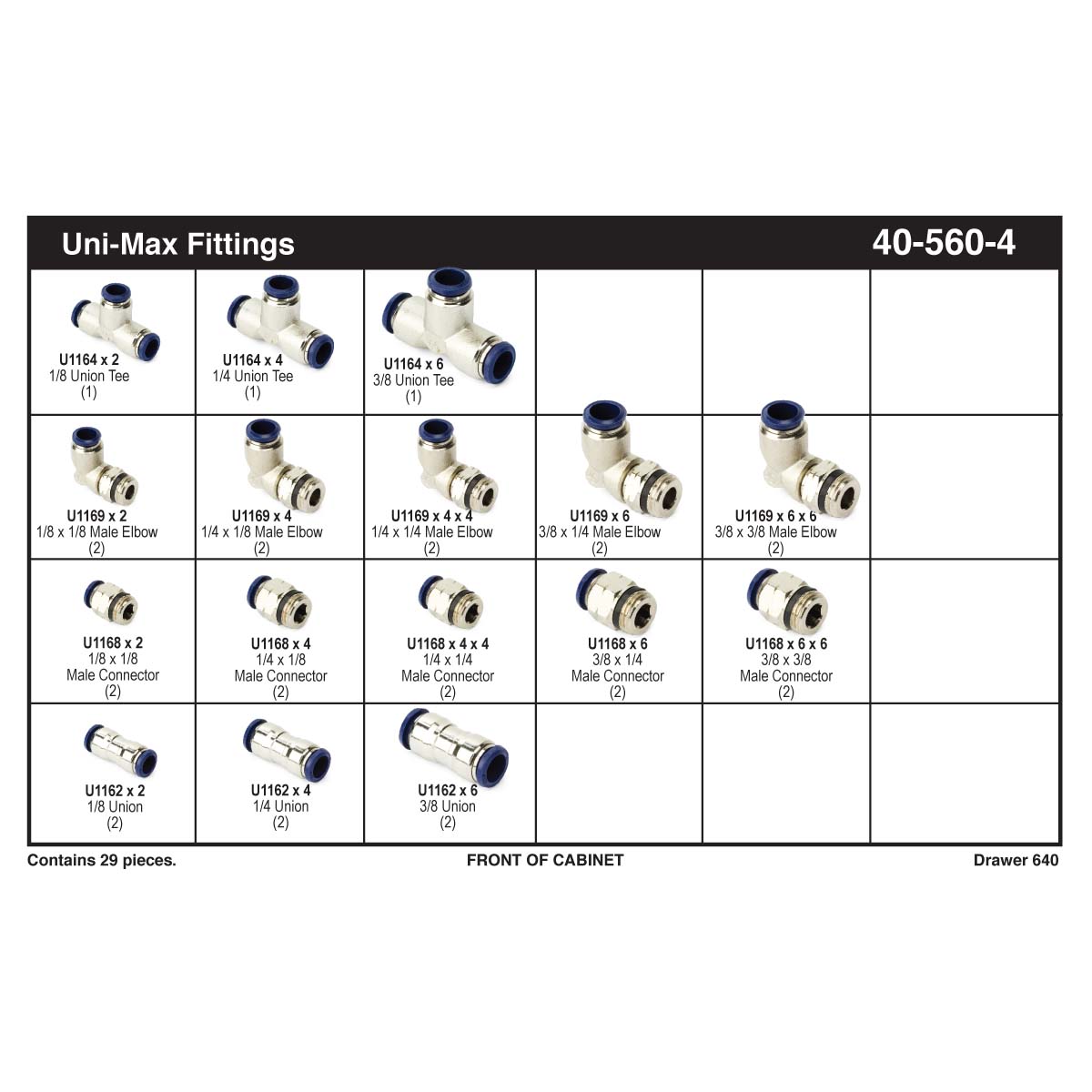

Assortment Contains:

• 640 - 24 Compartment Drawer - Qty. 1
• U1162X2 - 1/8" x 1/8" Uni-Max Union - Qty. 2
• U1162X4 - 1/4" Uni-Max Union - Qty. 2
• U1162X6 - 3/8" Uni-Max Union - Qty. 2
• U1164X2 - 1/8" Uni-Max Tee - Qty. 1
• U1164X4 - 1/4" Uni-Max Tee - Qty. 1
• U1164X6 - 3/8" Uni-Max Union Tee - Qty. 1
• U1168X2 - 1/8" x 1/8" Uni-Max Male Connector - Qty. 2
• U1168X4 - 1/4" x 1/8" Uni-Max Male Connector - Qty. 2
• U1168X4X4 - 1/4" x 1/4" Uni-Max Male Connector - Qty. 2
• U1168X6 - 3/8" x 1/4" Uni-Max Male Connector - Qty. 2
• U1168X6X6 - 3/8" x 3/8" Uni-Max Male Connector - Qty. 2
• U1169X2 - 1/8" x 1/8" Uni-Max Swivel Male Elbow - Qty. 2
• U1169X4 - 1/4" x 1/8" Uni-Max Swivel Male Elbow - Qty. 2
• U1169X4X4 - 1/4" x 1/4" Uni-Max Swivel Male Elbow - Qty. 2
• U1169X6 - 3/8" x 1/4" Uni-Max Swivel Male Elbow - Qty. 2
• U1169X6X6 - 3/8" x 3/8" Uni-Max Swivel Male Elbow - Qty. 2
