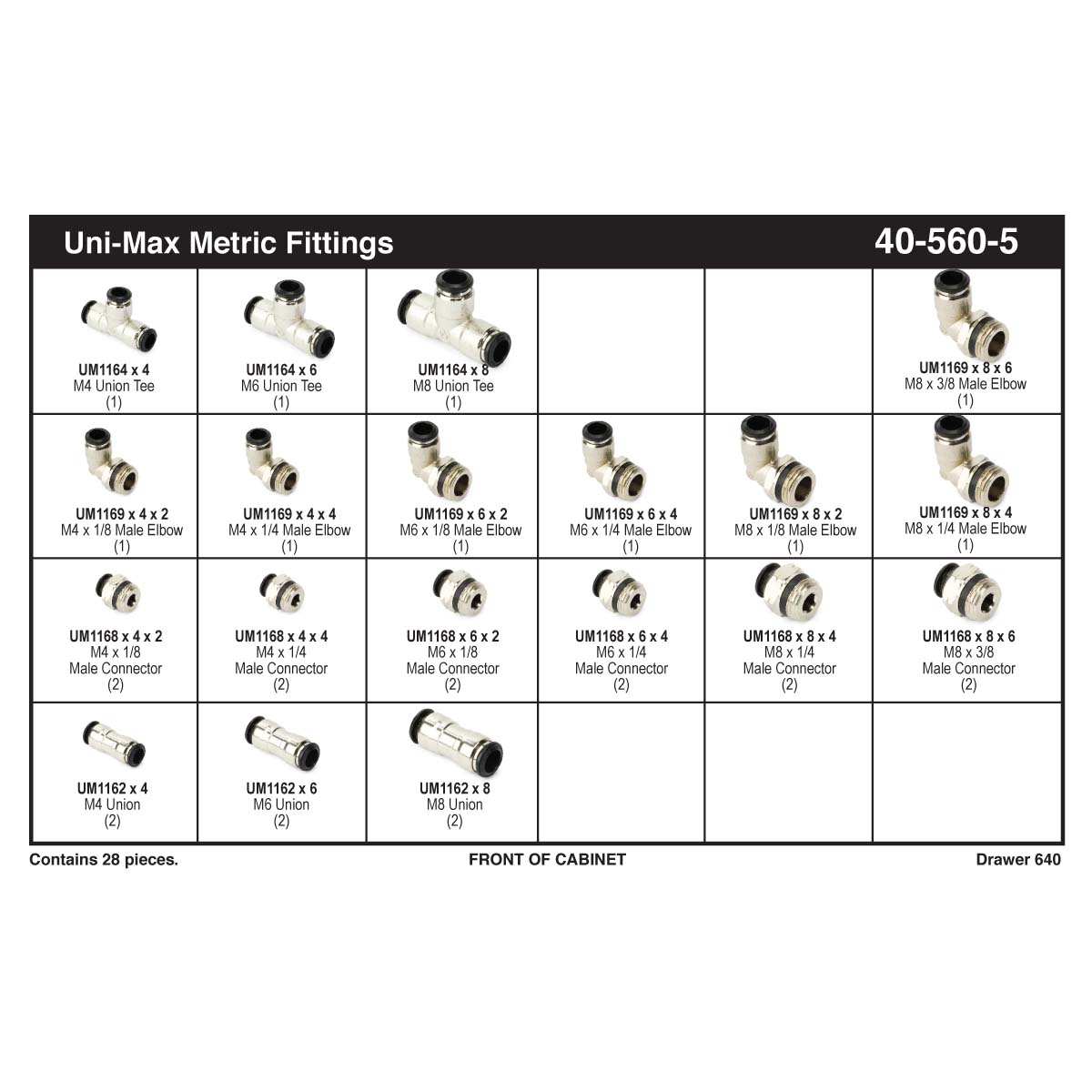

Uni-Max Fittings Assortment (M4 - M8)

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 11.4 lbs

Item: 405605

  • UNIVERSAL PIPE THREAD SYSTEM - Works with many different thread systems.
  • INCH & METRIC PIPE IN ONE FITTING - Works with NPT pipe, British Standard Pipe Parallel (BSPP), British Standard Pipe Taper (BSPT), and all G threads.
  • ELIMINATES GUESSWORK AND CROSS-THREADING - Prevents thread damage and makes assembly faster and more reliable.
  • UNIQUE SEALING SURFACE - "Thread Face" seal provides positive sealing on all types of pipe fittings, while the threads securely hold mating parts together.
  • SPECIFICATIONS:
    Typical Application: Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
    Pressure: 0 - 250 P.S.I., Vacuum service
    Temperature Range: -0°F to 160°F.
    Body/Sleeve Material: Nickel Plated Brass
    Gripper Collet: Stainless Steel
    Thrust Ring: Polymer
    Sealing: O-Ring/Lip Seal Buna-N 70.
    Torque Specifications: 3.7 - 5.2 Ft-lbs
    Used With: Nylon, polyethylene or polyurethane tubing.

NOTE: These fittings are not designed to DOT standards and should not be used for air brake applications.

# of Pieces: 28
Brand: Kimball Midwest
Finish: Nickel Plated
Material: Brass
Max Pressure: 250 P.S.I.
Operating Temperature: 0 to 160° F
Private Label: Yes
Sealing Method: O-Ring Seal


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • UNIVERSAL PIPE THREAD SYSTEM - Works with many different thread systems.
  • INCH & METRIC PIPE IN ONE FITTING - Works with NPT pipe, British Standard Pipe Parallel (BSPP), British Standard Pipe Taper (BSPT), and all G threads.
  • ELIMINATES GUESSWORK AND CROSS-THREADING - Prevents thread damage and makes assembly faster and more reliable.
  • UNIQUE SEALING SURFACE - "Thread Face" seal provides positive sealing on all types of pipe fittings, while the threads securely hold mating parts together.
  • SPECIFICATIONS:
    Typical Application: Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
    Pressure: 0 - 250 P.S.I., Vacuum service
    Temperature Range: -0°F to 160°F.
    Body/Sleeve Material: Nickel Plated Brass
    Gripper Collet: Stainless Steel
    Thrust Ring: Polymer
    Sealing: O-Ring/Lip Seal Buna-N 70.
    Torque Specifications: 3.7 - 5.2 Ft-lbs
    Used With: Nylon, polyethylene or polyurethane tubing.

NOTE: These fittings are not designed to DOT standards and should not be used for air brake applications.

# of Pieces: 28
Brand: Kimball Midwest
Finish: Nickel Plated
Male Pipe Thread: N/A
Material: Brass
Max Pressure: 250 P.S.I.
Operating Temperature: 0 to 160° F
Private Label: Yes
Sealing Method: O-Ring Seal
Shape: N/A
Tube O.D.: N/A


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
