Product Details
- TYPICAL APPLICATION: Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
- PRESSURE: Up to 250 P.S.I. depending on tube size.
- SEALING METHOD: O-ring or Buna-N construction.
- TEMPERATURE RANGE: -40°F to 200°F.
- MATERIAL: Nickel Plated Brass.
- USED WITH: PT230 and TP160 nylon tubing and PT240 polyethylene tubing.
NOTE: These fittings are not designed to DOT standards and should not be used for air brake applications.

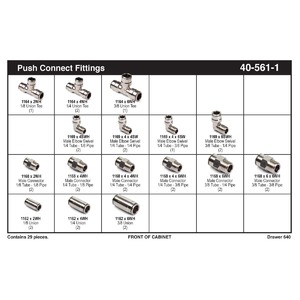

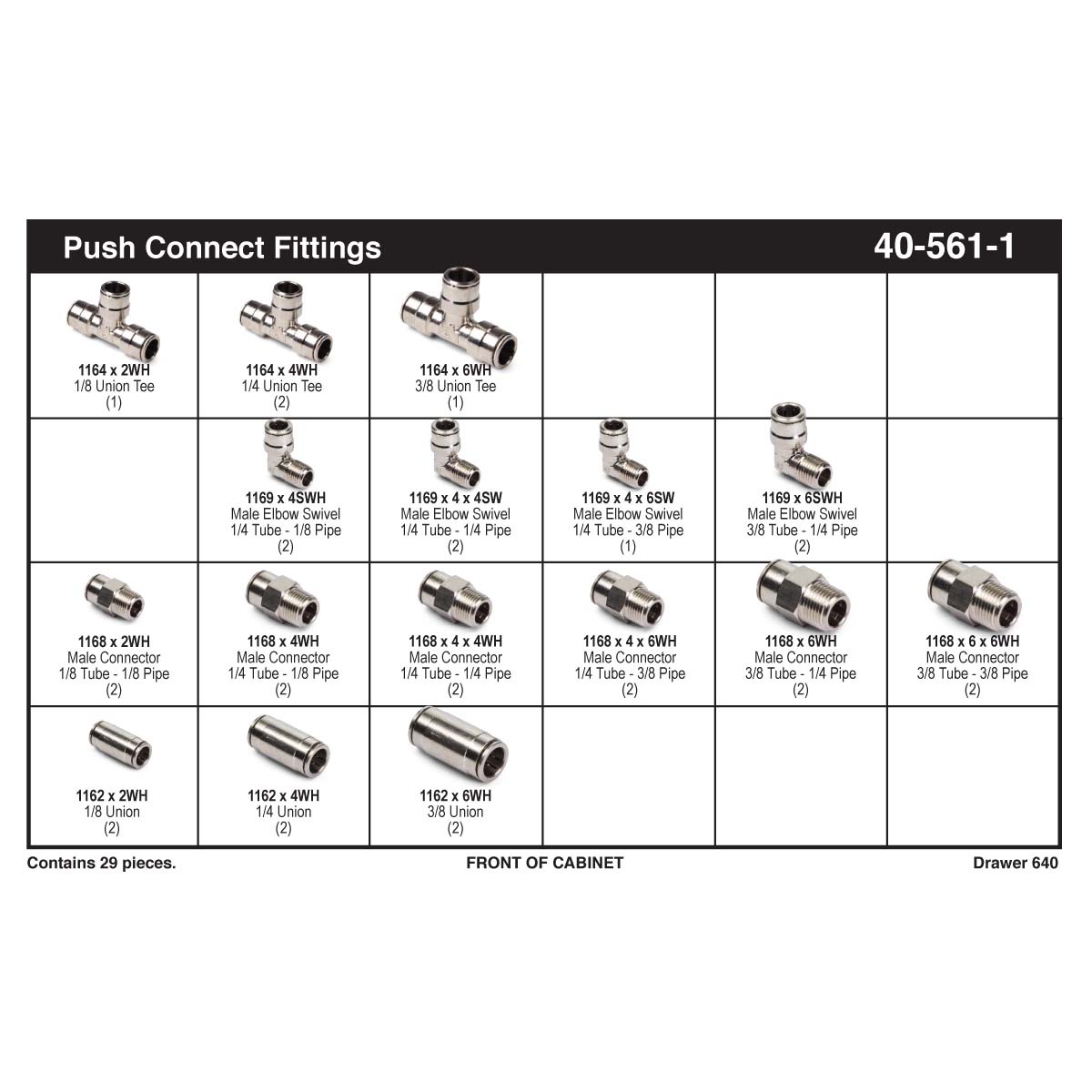

Assortment Contains:
- 640 - 24 Compartment Drawer - Qty. 1
- 1162X2WH - 1/8" Push-Connect Union - Qty. 2
- 1162X4WH - 1/4" Push-Connect Union - Qty. 2
- 1162X6WH - 3/8" Push-Connect Union - Qty. 2
- 1164X2WH - 1/8" Push-Connect Union Tee - Qty. 1
- 1164X4WH - 1/4" Push-Connect Union Tee - Qty. 2
- 1164X6WH - 3/8" Push-Connect Union Tee - Qty. 1
- 1168X2WH - 1/8" x 1/8" Push-Connect Male Connector - Qty. 2
- 1168X4WH - 1/4" x 1/8" Push-Connect Male Connector - Qty. 2
- 1168X4X4WH - 1/4" x 1/4" Push-Connect Male Connector - Qty. 2
- 1168X4X6WH - 1/4" x 3/8" Push-Connect Male Connector - Qty. 2
- 1168X6WH - 3/8" x 1/4" Push-Connect Male Connector - Qty. 2
- 1168X6X6WH - 3/8" x 3/8" Push-Connect Male Connector - Qty. 2
- 1169X4SWH - 1/4" x 1/8" Push-Connect Male Elbow Swivel - Qty. 2
- 1169X4X4SW - 1/4" x 1/4" Push-Connect Male Elbow Swivel - Qty. 2
- 1169X4X6SW - 1/4" x 3/8" Push-Connect Male Elbow Swivel - Qty. 1
- 1169X6SWH - 3/8" x 1/4" Push-Connect Male Elbow Swivel - Qty. 2
Product Specification
Brand:
Kimball Midwest
Category:
Instant Fitting & Flow Control Assortments
Finish:
Nickel Plated
Material:
CA360 Brass
Maximum Operating Temperature:
200 °F
Maximum Pressure:
250 psi
Minimum Operating Temperature:
-40 °F
Number of Pieces:
29
Sealing Method:
O-Ring Seal
Series:
Uni-Max
Storage Type:
24-Compartment Drawer
Subcategory:
Instant Fittings
Warranty:
30 Day
