• TYPICAL APPLICATION: High pressure hydraulic, pneumatic and chemical processing.
• PRESSURE: Up to 6000 P.S.I. (1-1/4 and 1-1/2 maximum 4000 P.S.I.).
• SEALING METHOD: O-Ring.
• VIBRATION RATING: Excellent resistance.
• MATERIAL: Carbon Steel - 12L14.
• USED WITH: Steel tubing (tubing for brazing must be non-coated).
• ADVANTAGES: Tubing is brazed for permanent leakproof connection.
• CONFORMANCE: Meets SAE J1453.

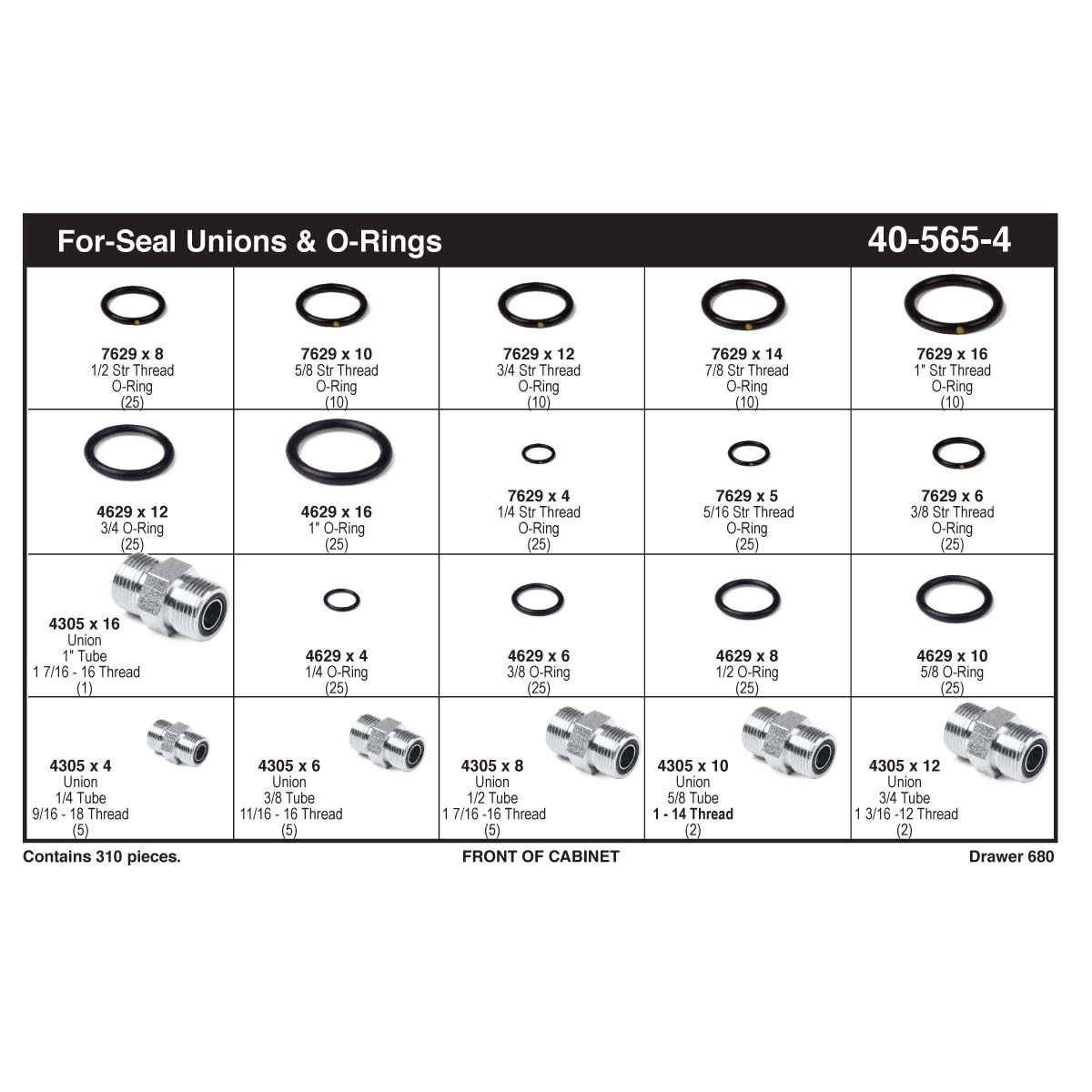

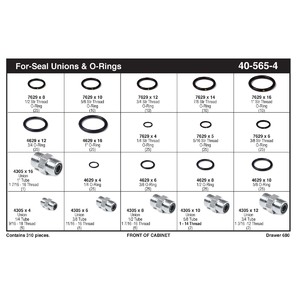

Assortment Contains:

• 680 - 20 Compartment Drawer - Qty. 1
• 4305X10 - 5/8" x 5/8" O-Ring Face-Seal Union - Qty. 2
• 4305X12 - 3/4" x 3/4" O-Ring Face-Seal Union - Qty. 2
• 4305X16 - 1" x 1" O-Ring Face-Seal Union - Qty. 1
• 4305X4 - 1/4" x 1/4" O-Ring Face-Seal Union - Qty. 5
• 4305X6 - 3/8" x 3/8" O-Ring Face-Seal Union - Qty. 5
• 4305X8 - 1/2" x 1/2" O-Ring Face-Seal Union - Qty. 5
• 4629X10 - 5/8" Replacement O-Ring for Face Seal Connections - Qty. 25
• 4629X12 - 3/4" Replacement O-Ring for Face Seal Connections - Qty. 25
• 4629X16 - 1" Replacement O-Ring for Face Seal Connections - Qty. 25
• 4629X4 - 1/4" Replacement O-Ring for Face Seal Connections - Qty. 25
• 4629X6 - 3/8" Replacement O-Ring for Face Seal Connections - Qty. 25
• 4629X8 - 1/2" Replacement O-Ring for Face Seal Connections - Qty. 25
• 7629X10 - 5/8" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 10
• 7629X12 - 3/4" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 10
• 7629X14 - 7/8" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 10
• 7629X16 - 1" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 10
• 7629X4 - 1/4" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 25
• 7629X5 - 5/16" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 25
• 7629X6 - 3/8" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 25
• 7629X8 - 1/2" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 25
