Steel 37° JIC Fittings Assortment (1/4" - 3/4")
Name:
Steel 37° JIC Fittings Assortment (1/4" - 3/4")
Item #:
405659
Package Weight: 99.3 lbs
Product Details
- TYPICAL APPLICATION: Hydraulic, instrumentation and chemical processing systems.
- PRESSURE: Up to 10,000 P.S.I. depending on tube and fitting size.
- VIBRATION RATING: Good resistance. Vibration resistance decreases with increase in tube size. Use two piece design when greater vibration resistance is required.
- TEMPERATURE RANGE: -65°F to +400°F.
- MATERIAL: Carbon Steel - AISI/SAE 12L14.
- PLATING: Zinc, yellow dichromate finish.
- USED WITH: Copper, brass, steel, aluminum and other tubing that can be flared.
- ADVANTAGES: Zinc plate. Choice of 2 or 3 piece design. Broad selection of styles and sizes. Interchangeable with all sources.
- CONFORMANCE: Meets ASA, ASME, SAE and MS specifications and standards.

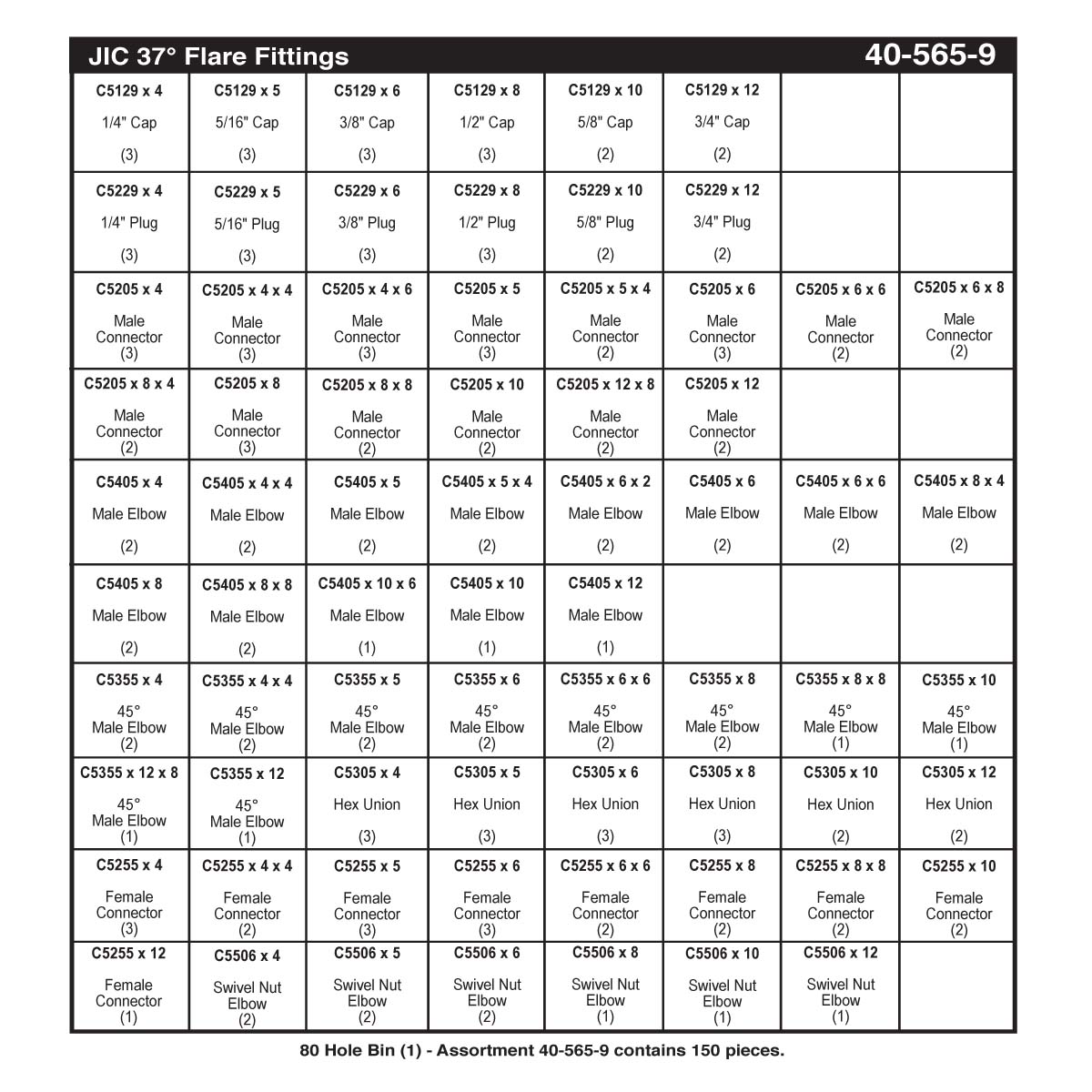

Assortment Contains:
- 630 - 80 Compartment Bin - Qty. 1
- C5129X10 - 5/8" SAE JIC 37° Cap - Qty. 2
- C5129X12 - 3/4" SAE JIC 37° Cap - Qty. 2
- C5129X4 - 1/4" SAE JIC 37° Cap - Qty. 3
- C5129X5 - 5/16" SAE JIC 37° Cap - Qty. 3
- C5129X6 - 3/8" SAE JIC 37° Cap - Qty. 3
- C5129X8 - 1/2" SAE JIC 37° Cap - Qty. 3
- C5205X10 - 5/8" x 1/2" Male SAE JIC 37° Connector - Qty. 2
- C5205X12 - 3/4" x 3/4" Male SAE JIC 37° Connector - Qty. 2
- C5205X12X8 - 3/4" x 1/2" Male SAE JIC 37° Connector - Qty. 2
- C5205X4 - 1/4" x 1/8" Male SAE JIC 37° Connector - Qty. 3
- C5205X4X4 - 1/4" x 1/4" Male SAE JIC 37° Connector - Qty. 3
- C5205X4X6 - 1/4" x 3/8" Male SAE JIC 37° Connector - Qty. 3
- C5205X5 - 5/16" x 1/8" Male SAE JIC 37° Connector - Qty. 3
- C5205X5X4 - 5/16" x 1/4" Male SAE JIC 37° Connector - Qty. 2
- C5205X6 - 3/8" x 1/4" Male SAE JIC 37° Connector - Qty. 3
- C5205X6X6 - 3/8" x 3/8" Male SAE JIC 37° Connector - Qty. 2
- C5205X6X8 - 3/8" x 1/2" Male SAE JIC 37° Connector - Qty. 2
- C5205X8 - 1/2" x 3/8" Male SAE JIC 37° Connector - Qty. 3
- C5205X8X4 - 1/2" x 1/4" Male SAE JIC 37° Connector - Qty. 2
- C5205X8X8 - 1/2" x 1/2" Male SAE JIC 37° Connector - Qty. 2
- C5229X10 - 5/8" SAE JIC 37° Plug - Qty. 2
- C5229X12 - 3/4" SAE JIC 37° Plug - Qty. 2
- C5229X4 - 1/4" SAE JIC 37° Plug - Qty. 3
- C5229X5 - 5/16" Steel 37° Plug - Qty. 3
- C5229X6 - 3/8" SAE JIC 37° Plug - Qty. 3
- C5229X8 - 1/2" SAE JIC 37° Plug - Qty. 3
- C5255X10 - 5/8" x 1/2" Female SAE JIC 37° Connector - Qty. 2
- C5255X12 - 3/4" x 3/4" Female SAE JIC 37° Connector - Qty. 1
- C5255X4 - 1/4" x 1/8" Female SAE JIC 37° Connector - Qty. 3
- C5255X4X4 - 1/4" x 1/4" Female SAE JIC 37° Connector - Qty. 2
- C5255X5 - 5/16" x 1/8" Female SAE JIC 37° Connector - Qty. 3
- C5255X6 - 3/8" x 1/4" Female SAE JIC 37° Connector - Qty. 3
- C5255X6X6 - 3/8" x 3/8" Female SAE JIC 37° Connector - Qty. 2
- C5255X8 - 1/2" x 3/8" Female SAE JIC 37° Connector - Qty. 2
- C5255X8X8 - 1/2" x 1/2" Female SAE JIC 37° Connector - Qty. 2
- C5305X10 - 5/8" x 5/8" SAE JIC 37° Small Hex Union - Qty. 2
- C5305X12 - 3/4" x 3/4" SAE JIC 37° Small Hex Union - Qty. 2
- C5305X4 - 1/4" x 1/4" SAE JIC 37° Small Hex Union - Qty. 3
- C5305X5 - 5/16" x 5/16" SAE JIC 37° Small Hex Union - Qty. 3
- C5305X6 - 3/8" x 3/8" SAE JIC 37° Small Hex Union - Qty. 3
- C5305X8 - 1/2" x 1/2" SAE JIC 37° Small Hex Union - Qty. 3
- C5355X10 - 5/8" x 1/2" Male SAE JIC 37° 45° Elbow - Qty. 1
- C5355X12 - 3/4" x 3/4" Male SAE JIC 37° 45° Elbow - Qty. 1
- C5355X12X8 - 3/4" x 1/2" Male SAE JIC 37° 45° Elbow - Qty. 1
- C5355X4 - 1/4" x 1/8" Male SAE JIC 37° 45° Elbow - Qty. 2
- C5355X4X4 - 1/4" x 1/4" Male SAE JIC 37° 45° Elbow - Qty. 2
- C5355X5 - 5/16" x 1/8" Male SAE JIC 37° 45° Elbow - Qty. 2
- C5355X6 - 3/8" x 1/4" Male SAE JIC 37° 45° Elbow - Qty. 2
- C5355X6X6 - 3/8" x 3/8" Male SAE JIC 37° 45° Elbow - Qty. 2
- C5355X8 - 1/2" x 3/8" Male SAE JIC 37° 45° Elbow - Qty. 2
- C5355X8X8 - 1/2" x 1/2" Male SAE JIC 37° 45° Elbow - Qty. 1
- C5405X10 - 5/8" x 1/2" Male SAE JIC 37° 90° Elbow - Qty. 1
- C5405X10X6 - 5/8" x 3/8" Male SAE JIC 37° 90° Elbow - Qty. 1
- C5405X12 - 3/4" x 3/4" Male SAE JIC 37° 90° Elbow - Qty. 1
- C5405X4 - 1/4" x 1/8" Male SAE JIC 37° 90° Elbow - Qty. 2
- C5405X4X4 - 1/4" x 1/4" Male SAE JIC 37° 90° Elbow - Qty. 2
- C5405X5 - 5/16" x 1/8" Male SAE JIC 37° 90° Elbow - Qty. 2
- C5405X5X4 - 5/16" x 1/4" Male SAE JIC 37° 90° Elbow - Qty. 2
- C5405X6 - 3/8" x 1/4" Male SAE JIC 37° 90° Elbow - Qty. 2
- C5405X6X2 - 3/8" x 1/8" Male SAE JIC 37° 90° Elbow - Qty. 2
- C5405X6X6 - 3/8" x 3/8" Male SAE JIC 37° 90° Elbow - Qty. 2
- C5405X8 - 1/2" x 3/8" Male SAE JIC 37° 90° Elbow - Qty. 2
- C5405X8X4 - 1/2" x 1/4" Male SAE JIC 37° 90° Elbow - Qty. 2
- C5405X8X8 - 1/2" x 1/2" Male SAE JIC 37° 90° Elbow - Qty. 2
- C5506X10 - 5/8" Female SAE JIC 37° 90° Swivel Elbow - Qty. 1
- C5506X12 - 3/4" Female SAE JIC 37° 90° Swivel Elbow - Qty. 1
- C5506X4 - 1/4" Female SAE JIC 37° 90° Swivel Elbow - Qty. 2
- C5506X5 - 5/16" Steel 37° Swivel Nut 90° Elbow - Qty. 2
- C5506X6 - 3/8" Female SAE JIC 37° 90° Swivel Elbow - Qty. 2
- C5506X8 - 1/2" Female SAE JIC 37° 90° Swivel Elbow - Qty. 1
Product Specification
Brand:
Kimball Midwest
Category:
Brass & Steel Fitting Assortments
Finish:
Zinc, Yellow Dichromate
Material:
Carbon Steel
Maximum Operating Temperature:
400 °F
Maximum Pressure:
10,000 psi
Minimum Operating Temperature:
-65 °F
Number of Pieces:
150
Storage Type:
40-Hole Bin
Subcategory:
Steel Fittings
Vibration Rating:
Good
