• TYPICAL APPLICATION: Hydraulic, instrumentation and chemical processing systems.
• PRESSURE: Up to 10,000 P.S.I. depending on tube and fitting size.
• VIBRATION RATING: Good resistance. Vibration resistance decreases with increase in tube size. Use two piece design when greater vibration resistance is required.
• TEMPERATURE RANGE: -65°F to +400°F.
• MATERIAL: Carbon Steel - AISI/SAE 12L14.
• PLATING: Zinc, yellow dichromate finish.
• USED WITH: Copper, brass, steel, aluminum and other tubing that can be flared.
• ADVANTAGES: Zinc plate. Choice of 2 or 3 piece design. Broad selection of styles and sizes. Interchangeable with all sources.
• CONFORMANCE: Meets ASA, ASME, SAE and MS specifications and standards.

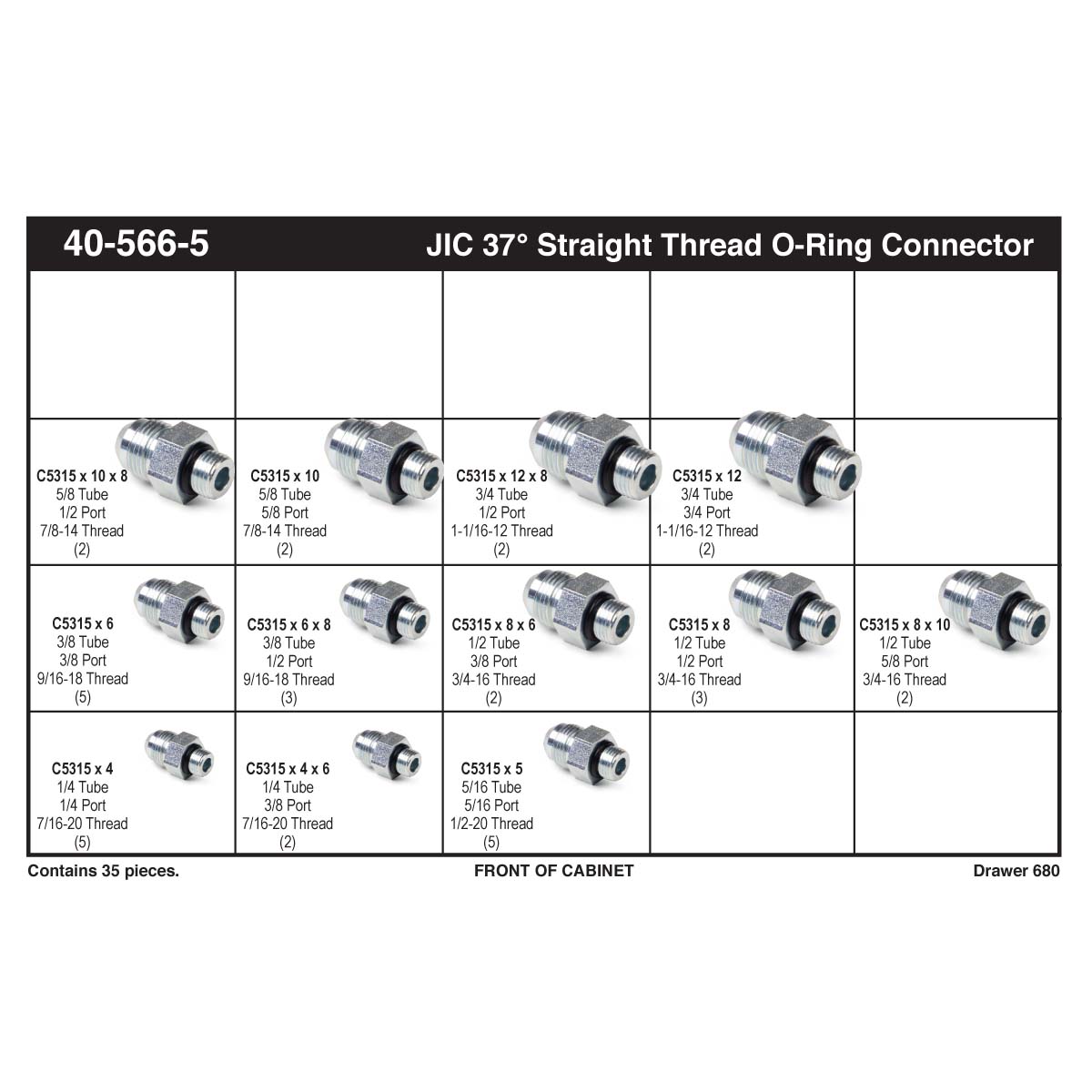

Assortment Contains:

• 680 - 20 Compartment Drawer - Qty. 1
• C5315X10 - 5/8" x 5/8" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 2
• C5315X10X8 - 5/8" x 1/2" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 2
• C5315X12 - 3/4" x 3/4" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 2
• C5315X12X8 - 3/4" x 1/2" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 2
• C5315X4 - 1/4" x 1/4" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 5
• C5315X4X6 - 1/4" x 3/8" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 2
• C5315X5 - 5/16" x 5/16" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 5
• C5315X6 - 3/8" x 3/8" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 5
• C5315X6X8 - 3/8" x 1/2" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 3
• C5315X8 - 1/2" x 1/2" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 3
• C5315X8X10 - 1/2" x 5/8" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 2
• C5315X8X6 - 1/2" x 3/8" SAE JIC 37° to Straight Thread O-Ring Connector - Qty. 2
