Steel 37° JIC Straight Thread O-Ring Elbow Assortment (1/4" - 3/4")
Name:
Steel 37° JIC Straight Thread O-Ring Elbow Assortment (1/4" - 3/4")
Item #:
405666
Package Weight: 14.3 lbs
Product Details
- TYPICAL APPLICATION: Hydraulic, instrumentation and chemical processing systems.
- PRESSURE: Up to 10,000 P.S.I. depending on tube and fitting size.
- VIBRATION RATING: Good resistance. Vibration resistance decreases with increase in tube size. Use two piece design when greater vibration resistance is required.
- TEMPERATURE RANGE: -65°F to +400°F.
- MATERIAL: Carbon Steel - AISI/SAE 12L14.
- PLATING: Zinc, yellow dichromate finish.
- USED WITH: Copper, brass, steel, aluminum and other tubing that can be flared.
- ADVANTAGES: Zinc plate. Choice of 2 or 3 piece design. Broad selection of styles and sizes. Interchangeable with all sources.
- CONFORMANCE: Meets ASA, ASME, SAE and MS specifications and standards.

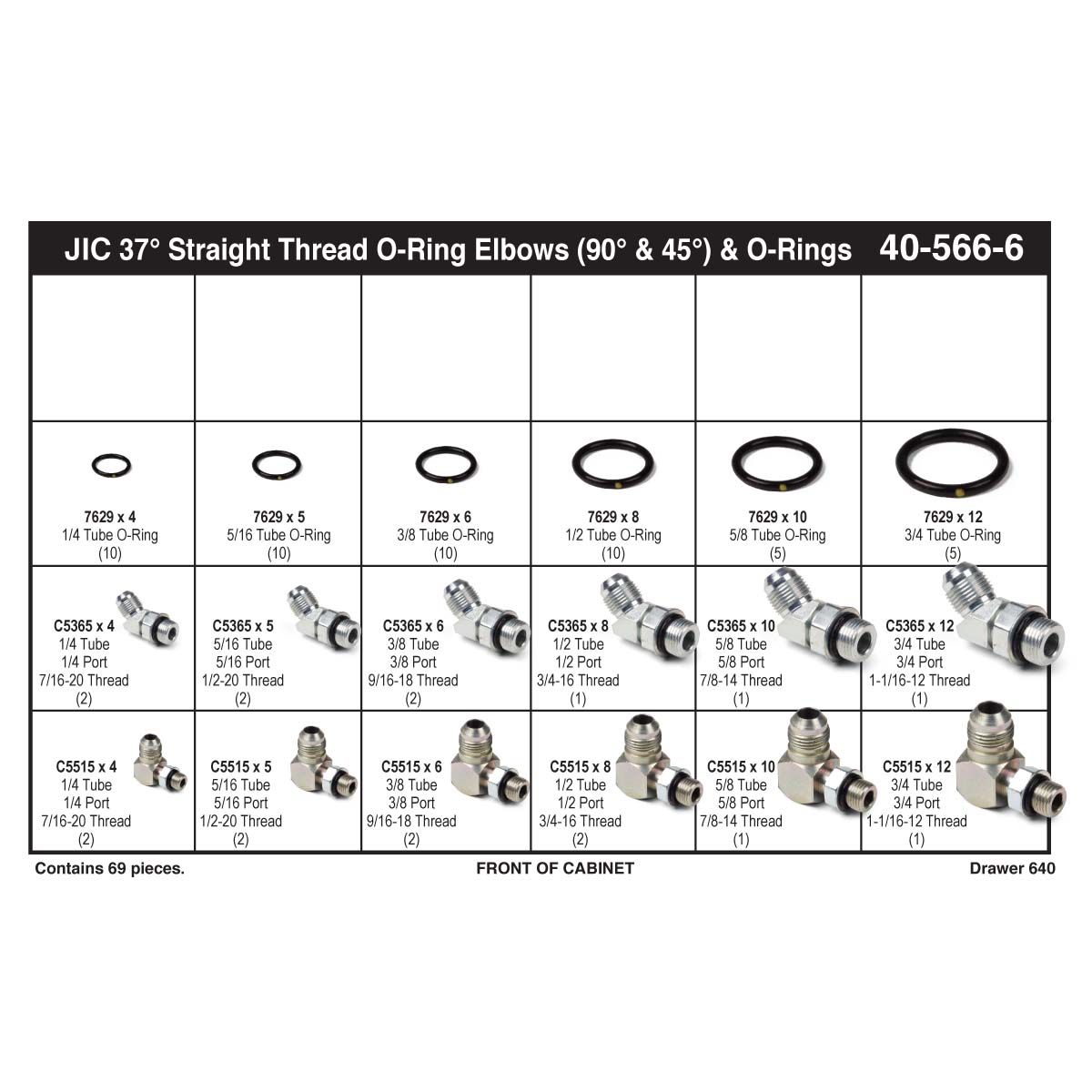

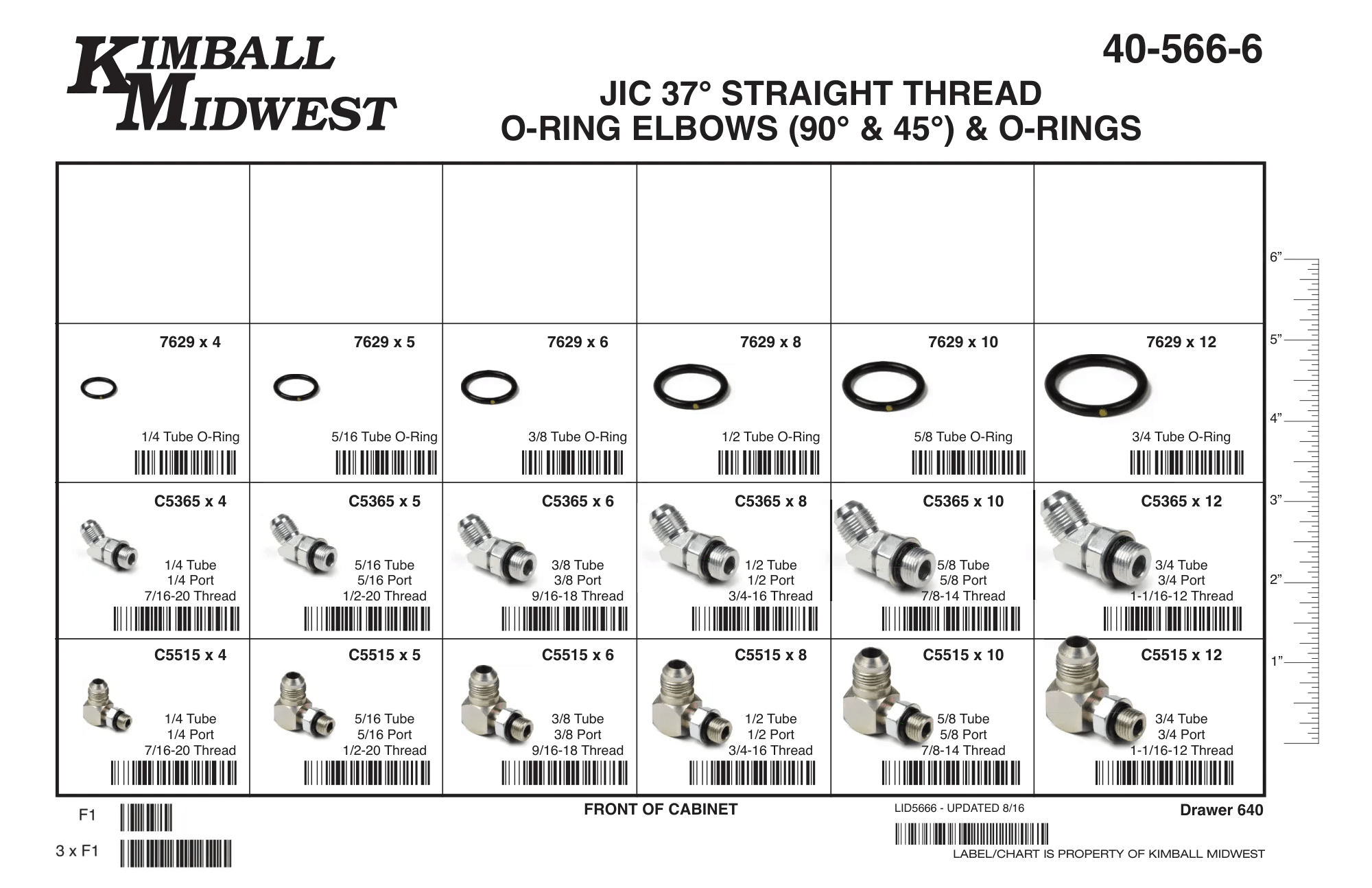

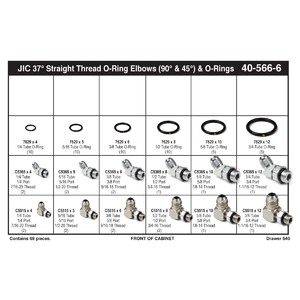

Assortment Contains:
- 640 - 24 Compartment Drawer - Qty. 1
- 7629X10 - 5/8" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
- 7629X12 - 3/4" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 5
- 7629X4 - 1/4" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 10
- 7629X5 - 5/16" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 10
- 7629X6 - 3/8" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 10
- 7629X8 - 1/2" Buna-N 90 O-Ring for Straight Thread Connections - Qty. 10
- C5365X10 - 5/8" x 5/8" SAE JIC 37° to Straight Thread O-Ring 45° Elbow - Qty. 1
- C5365X12 - 3/4" x 3/4" SAE JIC 37° to Straight Thread O-Ring 45° Elbow - Qty. 1
- C5365X4 - 1/4" x 1/4" SAE JIC 37° to Straight Thread O-Ring 45° Elbow - Qty. 2
- C5365X5 - 5/16" x 5/16" SAE JIC 37° to Straight Thread O-Ring 45° Elbow - Qty. 2
- C5365X6 - 3/8" x 3/8" SAE JIC 37° to Straight Thread O-Ring 45° Elbow - Qty. 2
- C5365X8 - 1/2" x 1/2" SAE JIC 37° to Straight Thread O-Ring 45° Elbow - Qty. 1
- C5515X10 - 5/8" x 5/8" SAE JIC 37° to Straight Thread O-Ring 90° Elbow - Qty. 1
- C5515X12 - 3/4" x 3/4" SAE JIC 37° to Straight Thread O-Ring 90° Elbow - Qty. 1
- C5515X4 - 1/4" x 1/4" SAE JIC 37° to Straight Thread O-Ring 90° Elbow - Qty. 2
- C5515X5 - 5/16" x 5/16" SAE JIC 37° to Straight Thread O-Ring 90° Elbow - Qty. 2
- C5515X6 - 3/8" x 3/8" SAE JIC 37° to Straight Thread O-Ring 90° Elbow - Qty. 2
- C5515X8 - 1/2" x 1/2" SAE JIC 37° to Straight Thread O-Ring 90° Elbow - Qty. 2
Product Specification
Brand:
Kimball Midwest
Category:
Brass & Steel Fitting Assortments
Finish:
Zinc, Yellow Dichromate
Material:
Carbon Steel
Maximum Operating Temperature:
400 °F
Maximum Pressure:
10,000 psi
Minimum Operating Temperature:
-65 °F
Number of Pieces:
69
Shape:
Elbow
Storage Type:
20-Compartment Drawer
Subcategory:
Steel Fittings
Vibration Rating:
Good
Warranty:
30 Day
