• TYPICAL APPLICATION: Medium pressure and high temperature hose lines for a variety of applications including truck, industrial and small engine where temperature may be a problem.
• COMPATABLE HOSES: H059, H069, H166, H239, H366, H569.
• PRESSURE: Determined by maximum working pressure for hose size.
• MATERIAL: AISI/SAE 12L14 carbon steel.
• PLATING: Zinc, yellow dichromate finish.
• ADVANTAGES: Very popular in heavy-duty truck markets. Good selection of hose ends. Compatible with a wide variety of hose types allowing for a diverse number of applications. Non-mandrel assembly. Marked DOT AII, SAE J1402 Type AII. Air brake approved in sizes 4 thru 12.

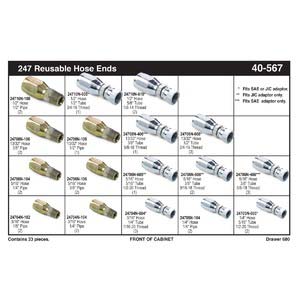

Assortment Contains:

• 680 - 20 Compartment Drawer - Qty. 1
• 24704N-102 - 3/16" x 1/8" Male Pipe Rigid Hose End - 247 N Series - Qty. 2
• 24704N-104 - 3/16" x 1/4" Male Pipe Rigid Hose End - 247 N Series - Qty. 2
• 24704N-604 - 3/16" x 1/4" Female SAE JIC 37° Swivel Hose End - 247 N Series - Qty. 2
• 24705N-104 - 1/4" x 1/4" Male Pipe Rigid Hose End - 247 N Series - Qty. 2
• 24705N-605 - 1/4" x 5/16" Female SAE JIC 37° Swivel Hose End - 247 N Series - Qty. 2
• 24706N-104 - 5/16" x 1/4" Male Pipe Rigid Hose End - 247 N Series - Qty. 2
• 24706N-106 - 5/16" x 3/8" Male Pipe Rigid Hose End - 247 N Series - Qty. 2
• 24706N-406 - 5/16" x 3/8" SAE 45° Flare Female Swivel Hose End - 247 N Series - Qty. 3
• 24706N-605 - 5/16" x 5/16" Female SAE JIC 37° Swivel Hose End - 247 N Series - Qty. 1
• 24706N-606 - 5/16" x 3/8" Female SAE JIC 37° Swivel Hose End - 247 N Series - Qty. 2
• 24708N-106 - 13/32" x 3/8" Male Pipe Rigid Hose End - 247 N Series - Qty. 2
• 24708N-108 - 13/32" x 1/2" Male Pipe Rigid Hose End - 247 N Series - Qty. 1
• 24708N-406 - 13/32" x 3/8" SAE 45° Flare Female Swivel Hose End - 247 N Series - Qty. 1
• 24708N-608 - 13/32" x 1/2" Female SAE JIC 37° Swivel Hose End - 247 N Series - Qty. 3
• 24710N-108 - 1/2" x 1/2" Male Pipe Rigid Hose End - 247 N Series - Qty. 2
• 24710N-608 - 1/2" x 1/2" Female SAE JIC 37° Swivel Hose End - 247 N Series - Qty. 1
• 24710N-610 - 1/2" x 5/8" Female SAE JIC 37° Swivel Hose End - 247 N Series - Qty. 2
