• TYPICAL APPLICATION: Hydraulic, instrumentation and chemical processing systems.
• PRESSURE: Up to 10,000 P.S.I. depending on tube and fitting size.
• VIBRATION RATING: Good resistance. Vibration resistance decreases with increase in tube size. Use two piece design when greater vibration resistance is required.
• TEMPERATURE RANGE: -65°F to +400°F.
• MATERIAL: Carbon Steel - AISI/SAE 12L14.
• PLATING: Zinc, yellow dichromate finish.
• USED WITH: Copper, brass, steel, aluminum and other tubing that can be flared.
• ADVANTAGES: Zinc plate. Choice of 2 or 3 piece design. Broad selection of styles and sizes. Interchangeable with all sources.
• CONFORMANCE: Meets ASA, ASME, SAE and MS specifications and standards.

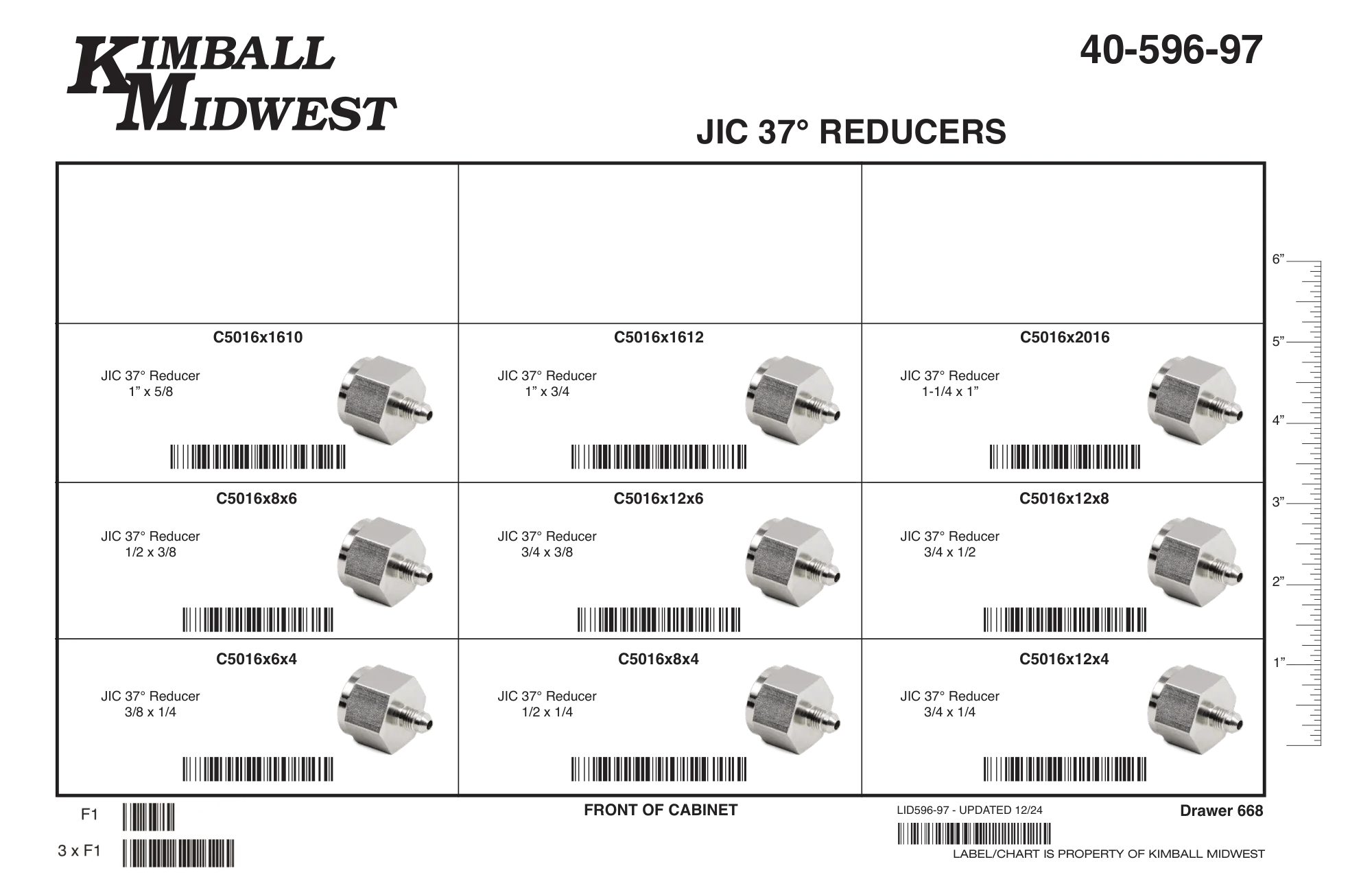

This Assortment Contains:

• 668 - 12 Compartment Drawer - Qty. 1
• C5016x1610 - 1" x 5/8" SAE JIC 37° Reducer - Qty. 2
• C5016x1612 - 1" x 3/4" SAE JIC 37° Reducer - Qty. 2
• C5016x2016 - 1-1/4" x 1" SAE JIC 37° Reducer - Qty. 2
• C5016x8x6 - 1/2" x 3/8" SAE JIC 37° Reducer - Qty. 2
• C5016x12x6 - 3/4" x 3/8" SAE JIC 37° Reducer - Qty. 2
• C5016x12x8 - 3/4" x 1/2" SAE JIC 37° Reducer - Qty. 2
• C5016x6x4 - 3/8" x 1/4" SAE JIC 37° Reducer - Qty. 2
• C5016x8x4 - 1/2" x 1/4" SAE JIC 37° Reducer - Qty. 2
• C5016x12x4 - 3/4" x 1/4" SAE JIC 37° Reducer - Qty. 2
