Elevator Bolts
Keep belts, buckets and panels tight without the bolt spinning. Kimball Midwest stocks elevator bolts that bite in with fanged heads or 3-prong Western dimples, while Norway heads spread load to resist pull-through in softer stock and conveyors. Choose zinc plating for corrosion resistance or black oil dip for a clean, jobsite-tough finish.
Filter
50 results
Top
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register

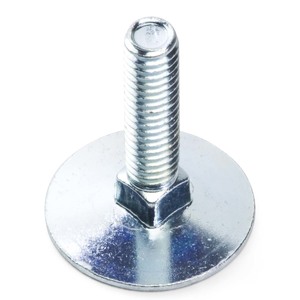

Square Shoulder Norway Head Elevator Bolts
Square shoulder Norway head elevator bolts made to ANSI B18.5 specification. Zinc-plated, coarse USS threads fully threaded to the square shoulder with a wide, flat head that helps prevent pull-through on softer materials. Commonly used on conveyors in industrial and agricultural applications.
Diameter: 1/4"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322200
|
3/4"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322201
|
1"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322202
|
1-1/4"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322203
|
1-1/2"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322204
|
2"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322205
|
2-1/2"
|
1/4"-20
|
25
|
Log in to view price | |
|
|
322206
|
3"
|
1/4"-20
|
25
|
Log in to view price |
Diameter: 5/16"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322207
|
1"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322230
|
1-1/4"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322208
|
1-1/2"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322209
|
2"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322214
|
2-1/2"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322215
|
3"
|
5/16"-18
|
25
|
Log in to view price |
Diameter: 3/8"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322210
|
1"
|
3/8"-16
|
25
|
Log in to view price | |
|
|
322211
|
1-1/2"
|
3/8"-16
|
25
|
Log in to view price | |
|
|
322213
|
1-3/4"
|
3/8"-16
|
25
|
Log in to view price | |
|
|
322212
|
2"
|
3/8"-16
|
25
|
Log in to view price |
Black Oil Dipped Square Shoulder Norway Head Elevator Bolts
Black oil-dipped Norway (square neck) elevator bolts with square shoulder, coarse USS threads and full threading to the shoulder. Conforms to ANSI B18.5. Durable oil finish resists corrosion and helps reduce galling; suited for material handling and conveyor applications.
Diameter: 1/4"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322140
|
1"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322141
|
1-1/4"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322142
|
1-1/2"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322144
|
2"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322144A
|
2-1/2"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322144B
|
3"
|
1/4"-20
|
50
|
Log in to view price |
Diameter: 5/16"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322146
|
1-1/2"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322147
|
2"
|
5/16"-18
|
25
|
Log in to view price |
Diameter: 3/8"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322149
|
1"
|
3/8"-16
|
25
|
Log in to view price | |
|
|
322150
|
1-1/2"
|
3/8"-16
|
25
|
Log in to view price | |
|
|
322151
|
2"
|
3/8"-16
|
25
|
Log in to view price |
Fanged Head Elevator Bolts
Fanged head elevator bolts with coarse UNC threads and zinc plating. Sharp fangs under the head bite into substrate to prevent rotation and reduce vibration loosening, while anti-rotational design locks the bolt for easier nut and washer installation and removal.
Diameter: 1/4"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322220
|
3/4"
|
1/4"-20
|
25
|
Log in to view price | |
|
|
322221
|
1"
|
1/4"-20
|
25
|
Log in to view price | |
|
|
322222
|
1-1/4"
|
1/4"-20
|
25
|
Log in to view price | |
|
|
322223
|
1-1/2"
|
1/4"-20
|
25
|
Log in to view price | |
|
|
322224
|
1-3/4"
|
1/4"-20
|
25
|
Log in to view price | |
|
|
322225
|
2"
|
1/4"-20
|
25
|
Log in to view price | |
|
|
322226
|
2-1/4"
|
1/4"-20
|
25
|
Log in to view price | |
|
|
322227
|
2-1/2"
|
1/4"-20
|
25
|
Log in to view price |
Diameter: 5/16"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322231
|
1"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322232
|
1-1/4"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322233
|
1-1/2"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322235
|
2"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322236
|
2-1/4"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322237
|
2-1/2"
|
5/16"-18
|
25
|
Log in to view price |
Diameter: 3/8"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322241
|
1-1/4"
|
3/8"-16
|
25
|
Log in to view price | |
|
|
322242
|
1-1/2"
|
3/8"-16
|
25
|
Log in to view price | |
|
|
322243
|
1-3/4"
|
3/8"-16
|
25
|
Log in to view price | |
|
|
322244
|
2"
|
3/8"-16
|
25
|
Log in to view price |
3-Prong Western Style Elevator Bolts
3-prong Western-style elevator bolts with zinc-plated finish and coarse USS threads. Three dimples beneath the head prevent the bolt from turning during tightening, providing a more secure assembly. Suited for conveyor and material-handling fastening applications.
Diameter: 1/4"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322216
|
1"
|
1/4"-20
|
50
|
Log in to view price | |
|
|
322217
|
1-1/4"
|
1/4"-20
|
50
|
Log in to view price |
Diameter: 5/16"
| Item # | Length | Thread Size | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
322218
|
1-1/4"
|
5/16"-18
|
25
|
Log in to view price | |
|
|
322219
|
1-1/2"
|
5/16"-18
|
25
|
Log in to view price |
