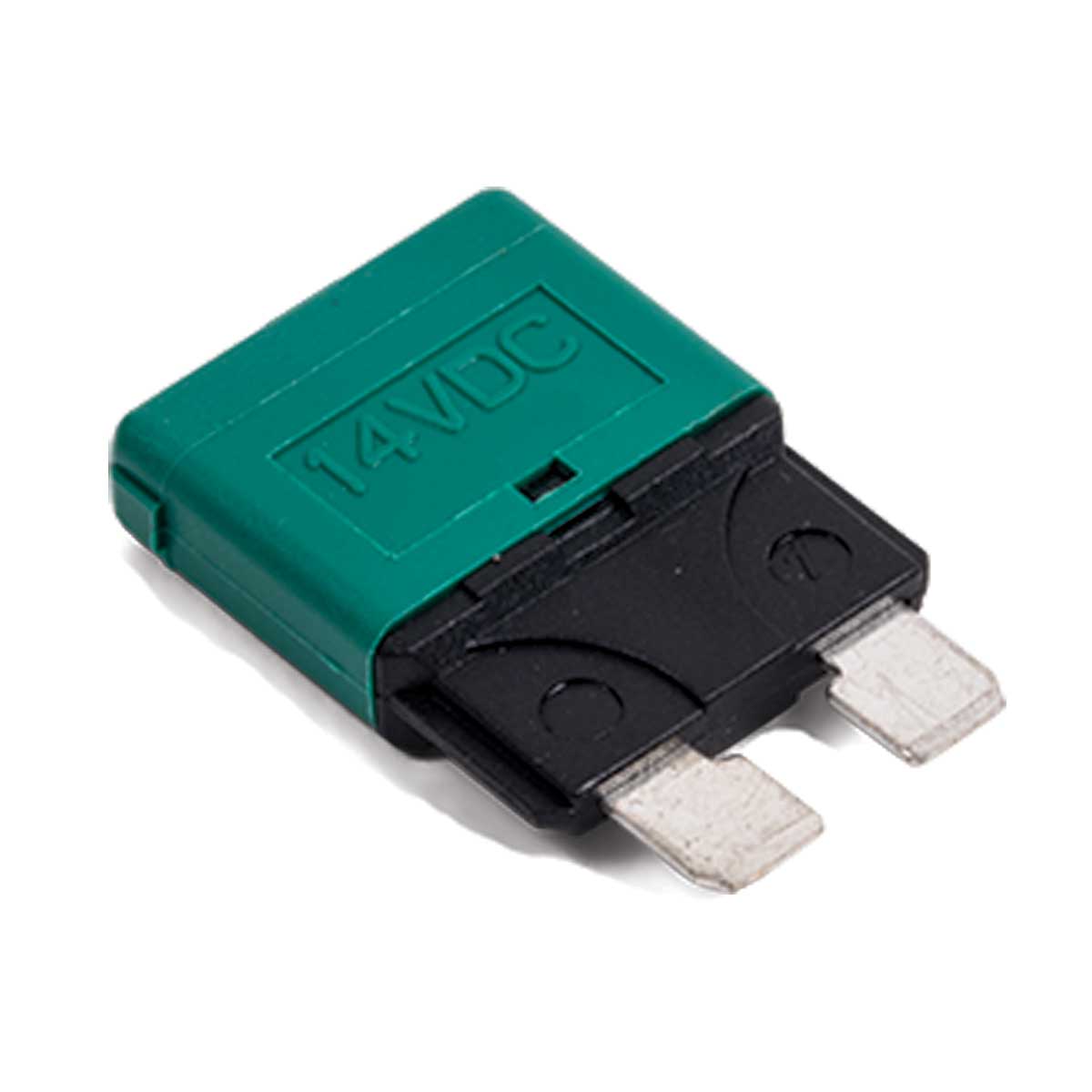

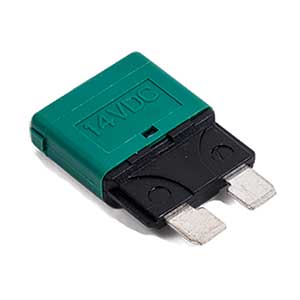

Type 1 ATO/ATC 30 Amp Circuit Breaker - Single

283347

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 0 lbs

Item: 283347

  • UNIQUE LOW-PROFILE DESIGN - Low-profile automotive circuit breakers have a lower profile and overall height reduction to allow use in most standard ATO/ATC style fuse panels and fuse blocks.
    Super compact - just 3/4" wide and 1/4" thick.
  • AUTOMATIC RESET - Type 1 circuit breakers automatically cycle and reset while the power is on.
  • SPECIFICATIONS (TYPE 1)
    Voltage Rating: 14 Volt DC
    Interrupting rating: 28-3340 thru 28-3343: 150A, 28-3344: 225A, 28-3345: 300A, 28-3346 thru 28-3347: 450A
    Operating Temperature: -40°F to 185°F
    Conforms to SAE J553 Standards
Amperage: 30A
Brand: Kimball Midwest Approved Vendor
Color: Green
Interrupting Ratings: 2,000A @ 28V DC
Maximum Operating Temperature: 185
Minimum Operating Temperature: -40
Private Label: No
Short Description: Type 1 Automatic Reset
Style: ATO/ATC Fuses
Thickness: 1/4"
Voltage: 14 V
Width: 3/4"
  • UNIQUE LOW-PROFILE DESIGN - Low-profile automotive circuit breakers have a lower profile and overall height reduction to allow use in most standard ATO/ATC style fuse panels and fuse blocks.
    Super compact - just 3/4" wide and 1/4" thick.
  • AUTOMATIC RESET - Type 1 circuit breakers automatically cycle and reset while the power is on.
  • SPECIFICATIONS (TYPE 1)
    Voltage Rating: 14 Volt DC
    Interrupting rating: 28-3340 thru 28-3343: 150A, 28-3344: 225A, 28-3345: 300A, 28-3346 thru 28-3347: 450A
    Operating Temperature: -40°F to 185°F
    Conforms to SAE J553 Standards
Amperage: 30A
Brand: Kimball Midwest Approved Vendor
Color: Green
Interrupting Ratings: 2,000A @ 28V DC
Maximum Operating Temperature: 185
Minimum Operating Temperature: -40
Private Label: No
Short Description: Type 1 Automatic Reset
Style: ATO/ATC Fuses
Thickness: 1/4"
Voltage: 14 V
Width: 3/4"
