Nylon Terminal Assortment
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Nylon Insulated Terminals 16 - 14 AWG
Package Quantity: 1
Package Weight: 9.2 lbs
Item: 40224
- Outstanding durability, temperature resistance and dielectric strength from Enduralon™ Nylon Insulation.
- Wires insert smoothly without hang-up into special funnel shaped barrels for fast and easy installation.
- Insulock™ grip sleeves built into the terminal barrel allows a second crimp that locks the barrel onto the wire insulation to prevent wire pull-out failures.
- Widest operating temperature range: -40°F to 250°F continuous; up to 350°F intermittent.
- 600 volt rating on ring, hook and spade terminals.

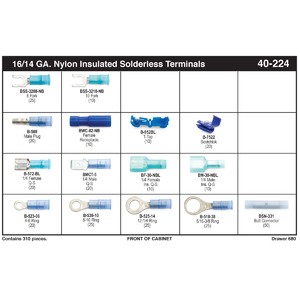

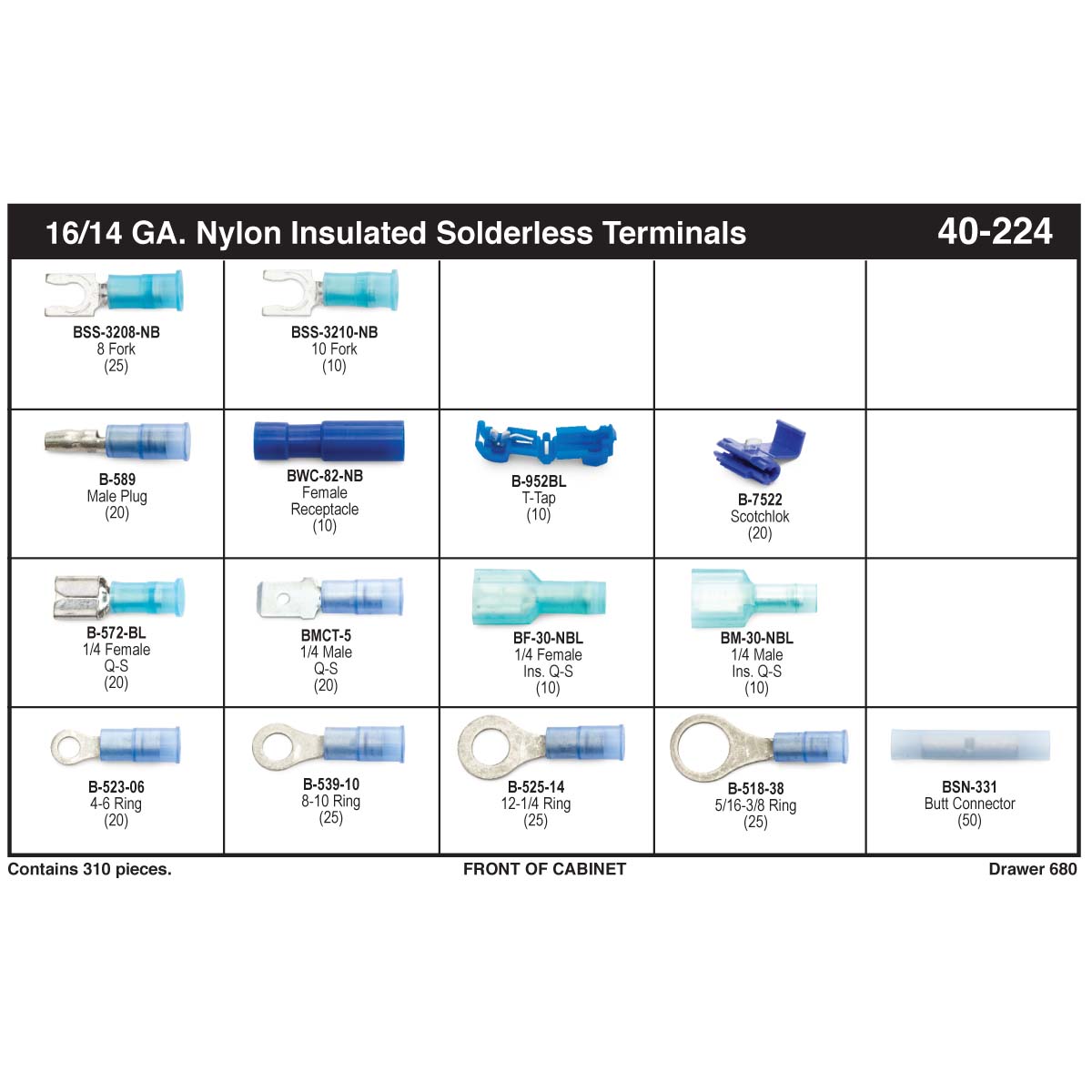

Kit Contains:
- B-523-06 - Enduralon™ #4-6 Ring Terminal 16 - 14 AWG - Qty. 20
- B-539-10 - Enduralon™ #8-10 Ring Terminal 16 - 14 AWG - Qty. 25
- B-525-14 - Enduralon™ #12-1/4" Ring Terminal 16 - 14 AWG - Qty. 25
- B-518-38 - Enduralon™ 5/16"-3/8" Ring Terminal 16 - 14 AWG - Qty. 25
- BSS-3208-NB - Enduralon™ #8 Fork Terminal 16 - 14 AWG - Qty. 25
- BSS-3210-NB - Enduralon™ #10 Fork Terminal 16 - 14 AWG - Qty. 10
- B-572-BL - Enduralon™ 1/4" Female Quick Slide Terminal 16 - 14 AWG - Qty. 20
- BMCT-5 - Enduralon™ 1/4" Male Quick Slide Terminal 16 - 14 AWG - Qty. 20
- BF-30-NBL - Enduralon™ 1/4" Insulated Female Quick Slide Terminal 16 - 14 AWG - Qty. 10
- BM-30-NBL - Enduralon™ 1/4" Insulated Male Quick Slide Terminal 16 - 14 AWG - Qty. 10
- B-589 - Enduralon™ .156 Snap Plug 16 - 14 AWG - Qty. 20
- BWC-82-NB - Enduralon™ .156 Snap Receptacle Terminal 16 - 14 AWG - Qty. 10
- BSN-331 - Enduralon™ Butt Connector 16 - 14 AWG - Qty. 50
| # of Pieces: | 280 |
| Brand: | Kimball Midwest Approved Vendor |
| Color: | Blue |
| Finish: | Electro-Tin Plated |
| Installation: | Crimp |
| Insulation Material: | Enduralon Nylon |
| Material: | Electrolytic Copper Contacts |
| Operating Temperature: | -40 to 250° F |
| Private Label: | No |
| Shape: | Assortment |
| Stud Size: | Assortment |
| Style: | Insulated |
| Voltage: | 600V |
| Wire Diameter: | 16-14 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Outstanding durability, temperature resistance and dielectric strength from Enduralon™ Nylon Insulation.
- Wires insert smoothly without hang-up into special funnel shaped barrels for fast and easy installation.
- Insulock™ grip sleeves built into the terminal barrel allows a second crimp that locks the barrel onto the wire insulation to prevent wire pull-out failures.
- Widest operating temperature range: -40°F to 250°F continuous; up to 350°F intermittent.
- 600 volt rating on ring, hook and spade terminals.
Kit Contains:
- B-523-06 - Enduralon™ #4-6 Ring Terminal 16 - 14 AWG - Qty. 20
- B-539-10 - Enduralon™ #8-10 Ring Terminal 16 - 14 AWG - Qty. 25
- B-525-14 - Enduralon™ #12-1/4" Ring Terminal 16 - 14 AWG - Qty. 25
- B-518-38 - Enduralon™ 5/16"-3/8" Ring Terminal 16 - 14 AWG - Qty. 25
- BSS-3208-NB - Enduralon™ #8 Fork Terminal 16 - 14 AWG - Qty. 25
- BSS-3210-NB - Enduralon™ #10 Fork Terminal 16 - 14 AWG - Qty. 10
- B-572-BL - Enduralon™ 1/4" Female Quick Slide Terminal 16 - 14 AWG - Qty. 20
- BMCT-5 - Enduralon™ 1/4" Male Quick Slide Terminal 16 - 14 AWG - Qty. 20
- BF-30-NBL - Enduralon™ 1/4" Insulated Female Quick Slide Terminal 16 - 14 AWG - Qty. 10
- BM-30-NBL - Enduralon™ 1/4" Insulated Male Quick Slide Terminal 16 - 14 AWG - Qty. 10
- B-589 - Enduralon™ .156 Snap Plug 16 - 14 AWG - Qty. 20
- BWC-82-NB - Enduralon™ .156 Snap Receptacle Terminal 16 - 14 AWG - Qty. 10
- BSN-331 - Enduralon™ Butt Connector 16 - 14 AWG - Qty. 50
| # of Pieces: | 280 |
| Brand: | Kimball Midwest Approved Vendor |
| Color: | Blue |
| Diameter: | N/A |
| Finish: | Electro-Tin Plated |
| Installation: | Crimp |
| Insulation Material: | Enduralon Nylon |
| Material: | Electrolytic Copper Contacts |
| Operating Temperature: | -40 to 250° F |
| Private Label: | No |
| Shape: | Assortment |
| Stud Size: | Assortment |
| Style: | Insulated |
| Tab Size: | N/A |
| Voltage: | 600V |
| Wire Diameter: | 16-14 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
