Nylon Heavy Duty Terminal Assortment

Nylon Heavy Duty Terminal Assortment

Price

Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register

Package Quantity: 1

Package Weight: 11 lbs

Item: 40229

  • Outstanding durability, temperature resistance and dielectric strength from Enduralon™ Nylon Insulation.
  • Wires insert smoothly without hang-up into special funnel shaped barrels for fast and easy installation.
  • Insulock™ grip sleeves built into the terminal barrel allows a second crimp that locks the barrel onto the wire insulation to prevent wire pull-out failures.
  • Widest operating temperature range: -40°F to 250°F continuous; up to 350°F intermittent.
  • 600 volt rating on ring, hook and spade terminals.

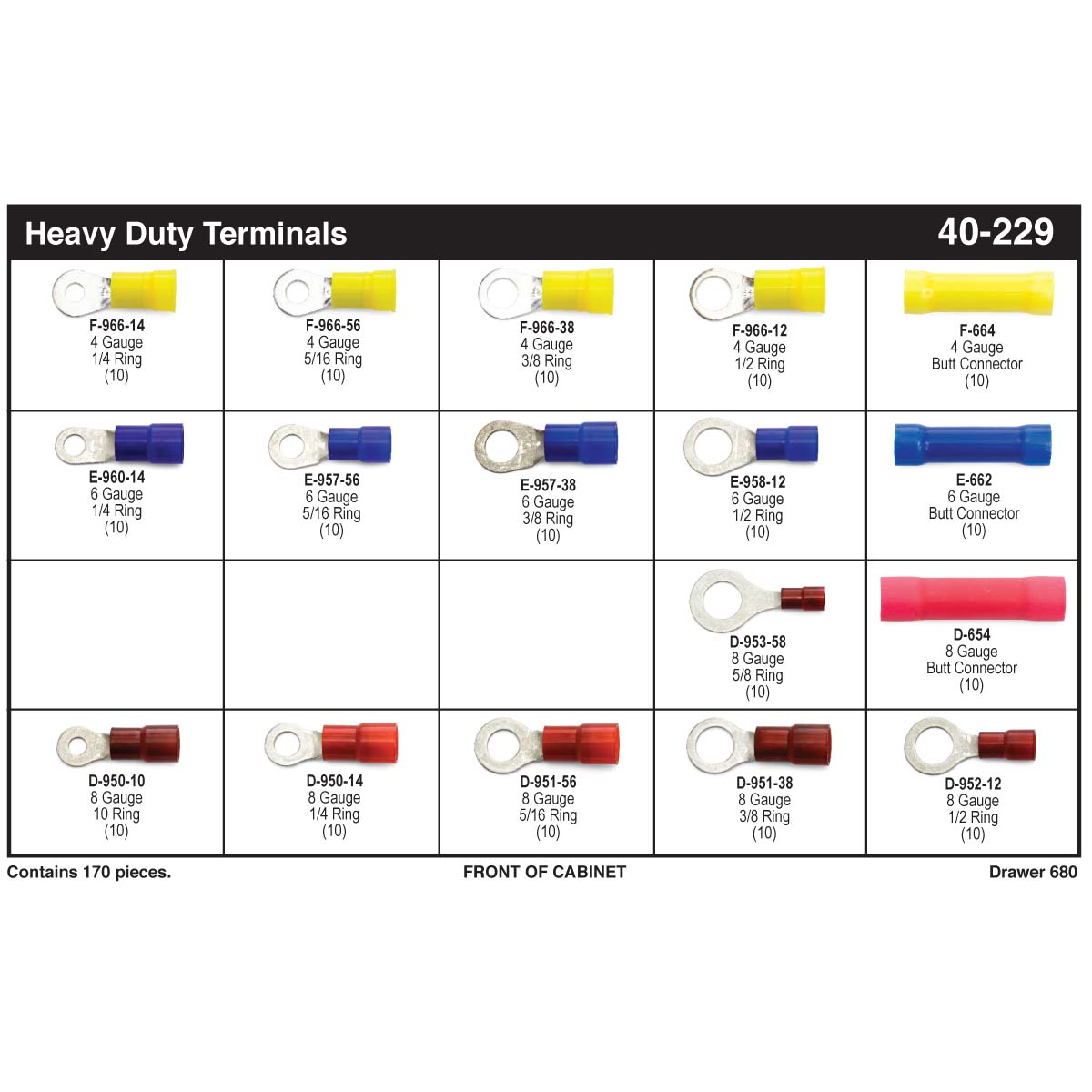

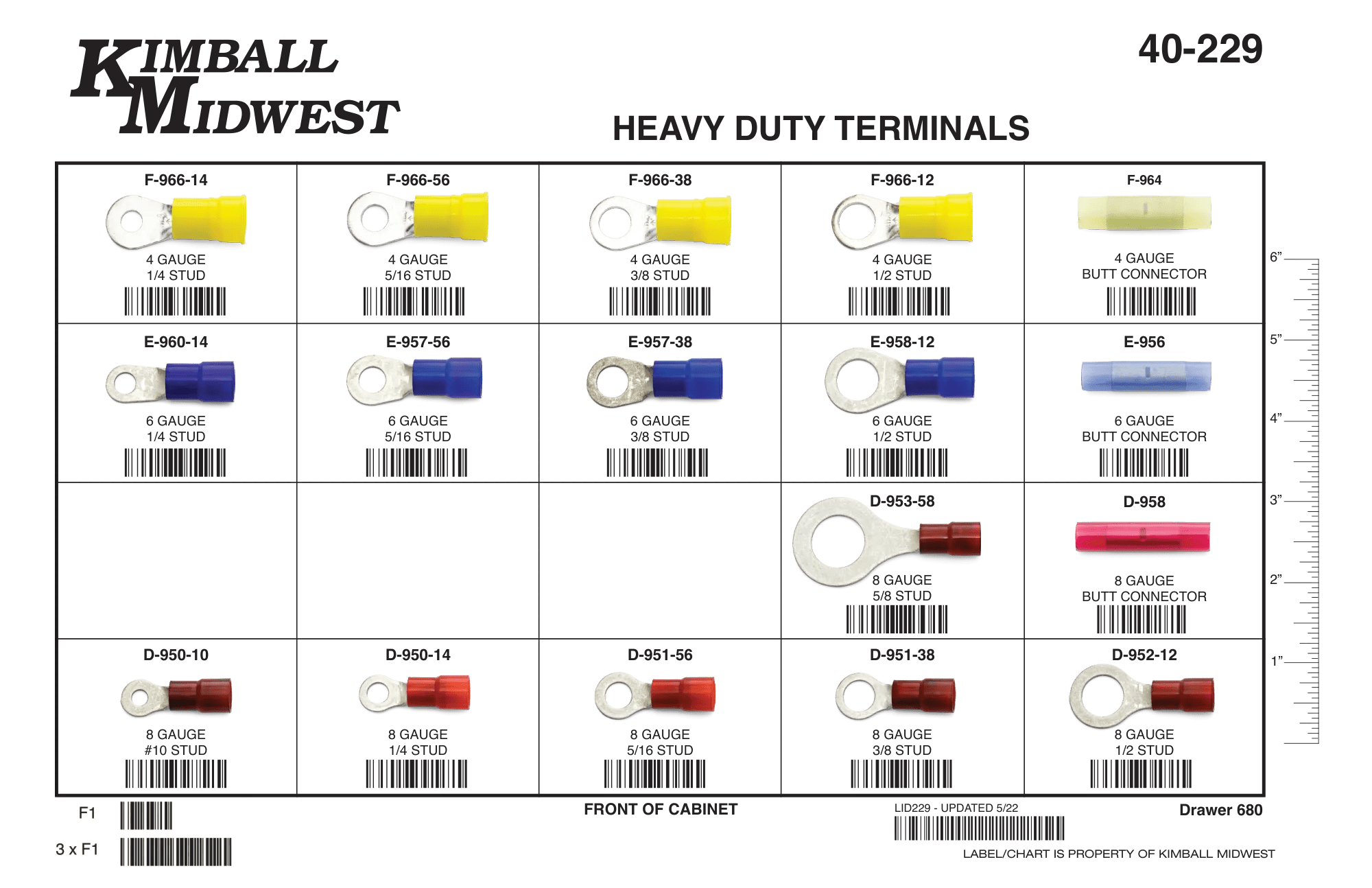

Kit Contains:

  • D-950-10 - Enduralon™ #10 Ring Terminal 8 AWG - Qty. 10
  • D-950-14 - Enduralon™ 1/4" Ring Terminal 8 AWG - Qty. 10
  • D-951-56 - Enduralon™ 5/16" Ring Terminal 8 AWG - Qty. 10
  • D-951-38 - Enduralon™ 3/8" Ring Terminal 8 AWG - Qty. 10
  • D-952-12 - Enduralon™ 1/2" Ring Terminal 8 AWG - Qty. 10
  • D-953-58 - Enduralon™ 5/8" Ring Terminal 8 AWG - Qty. 10
  • D-654 - Vinyl Insulated Solderless Butt Connector 8 AWG - Qty. 10
  • E-960-14 - Enduralon™ 1/4" Ring Terminal 6 AWG - Qty. 10
  • E-957-56 - Enduralon™ 5/16" Ring Terminal 6 AWG - Qty. 10
  • E-957-38 - Enduralon™ 3/8" Ring Terminal 6 AWG - Qty. 10
  • E-958-12 - Enduralon™ 1/2" Ring Terminal 6 AWG - Qty. 10
  • E-662 - Vinyl Insulated Solderless Butt Connector 6 AWG - Qty. 10
  • F-966-14 - Enduralon™ 1/4" Ring Terminal 4 AWG - Qty. 10
  • F-966-56 - Enduralon™ 5/16" Ring Terminal 4 AWG - Qty. 10
  • F-966-38 - Enduralon™ 3/8" Ring Terminal 4 AWG - Qty. 10
  • F-966-12 - Enduralon™ 1/2" Ring Terminal 4 AWG - Qty. 10
  • F-664 - Vinyl Insulated Solderless Butt Connector 4 AWG - Qty. 10
Brand: Kimball Midwest Approved Vendor
Finish: Electro-Tin Plated
Installation: Crimp
Material: Electrolytic Copper Contacts
Maximum Operating Temperature: 250 °F
Minimum Operating Temperature: -40 °F
Number of Pieces: 170
Storage Type: 20-Compartment Drawer
Style: Insulated
Subcategory: Terminal Assortments
Voltage: 600V
Wire Diameter: 8 - 4 AWG


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
