Weatherpack Automotive Terminal Assortment
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Package Quantity: 1
Package Weight: 7.8 lbs
Item: 40233
- Weather pack series terminals and connector shells are used to produce waterproof connections in applications where reliability is critical.
- The system consists of male and female terminals that are crimped into place with a cable seal. The terminal and seal are then installed in mating connector shells that also contain silicone seals. Once assembled the system is completely environmentally sealed.
- Mating shells lock together to prevent accidental pull-out and terminals can be removed from the shells only with special extractor tools. This combination of seals and locks assures maximum reliability and performance.
| # of Pieces: | 131 |
| Brand: | Kimball Midwest |
| Private Label: | Yes |
| Series: | Weatherpack |
| Shape: | Assortment |
| Wire Diameter: | 20-14 |

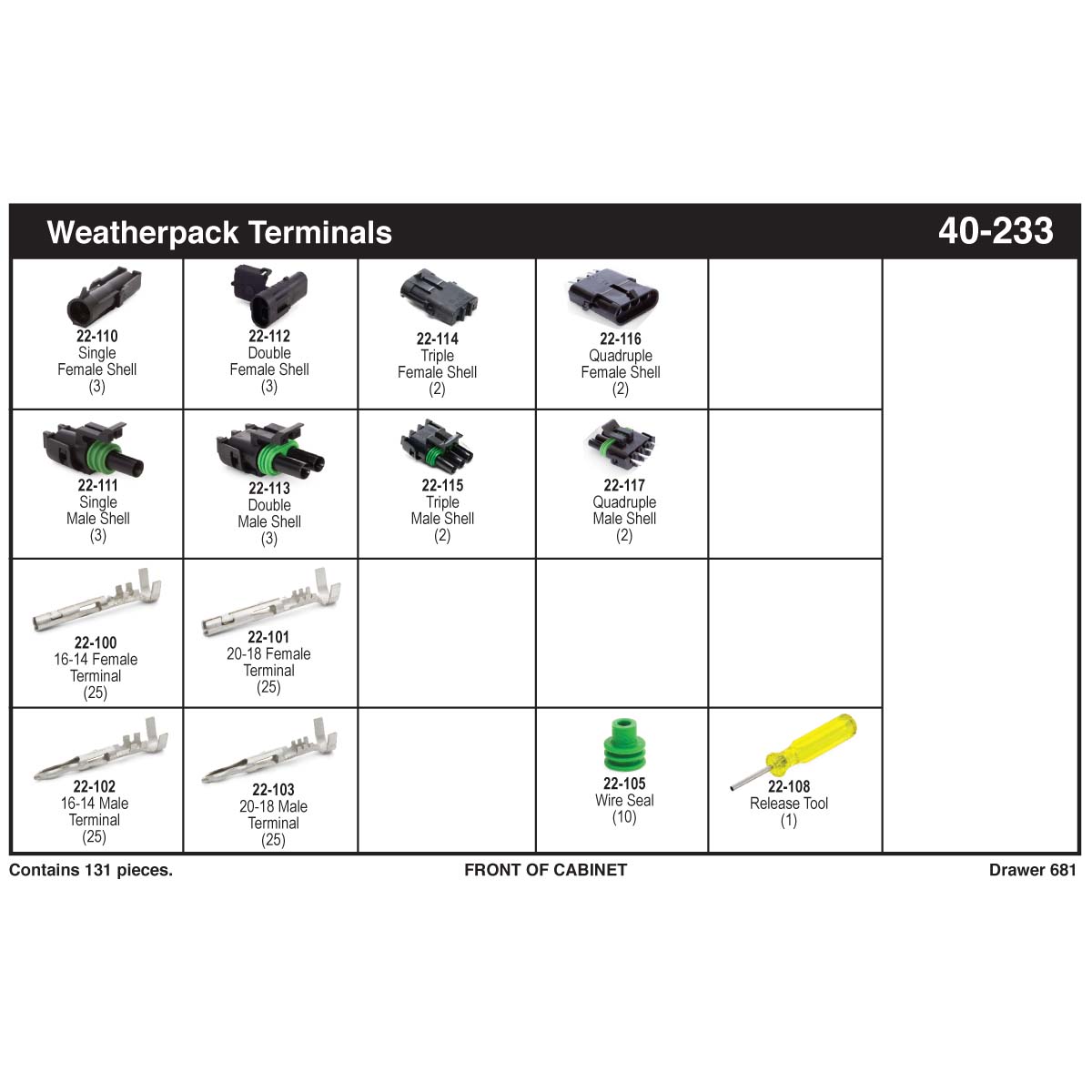

Kit Contains:
- 22-100 - Weatherpack Female Automotive Terminal 16 - 14 AWG - Qty. 25
- 22-101 - Weatherpack Male Automotive Terminal 16 - 14 AWG - Qty. 25
- 22-102 - Weatherpack Female Automotive Terminal 20 - 18 AWG - Qty. 25
- 22-103 - Weatherpack Male Automotive Terminal 20 - 18 AWG - Qty. 25
- 22-105 - General Motors Metripack Single Wire Cable Seal - Qty. 10
- 22-110 - Weatherpack Single Female Connector Body Shell - Qty. 3
- 22-111 - Weatherpack Single Male Connector Body Shell - Qty. 3
- 22-112 - Weatherpack Double Female Connector Body Shell - Qty. 3
- 22-113 - Weatherpack Double Male Connector Body Shell - Qty. 3
- 22-114 - Weatherpack Triple Female Connector Body Shell - Qty. 2
- 22-115 - Weatherpack Triple Male Connector Body Shell - Qty. 2
- 22-116 - Weatherpack Quadruple Female Connector Body Shell - Qty. 2
- 22-117 - Weatherpack Quadruple Male Connector Body Shell - Qty. 2
- 22-108 - Weatherpack Terminal Extractor - Qty. 1
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Weather pack series terminals and connector shells are used to produce waterproof connections in applications where reliability is critical.
- The system consists of male and female terminals that are crimped into place with a cable seal. The terminal and seal are then installed in mating connector shells that also contain silicone seals. Once assembled the system is completely environmentally sealed.
- Mating shells lock together to prevent accidental pull-out and terminals can be removed from the shells only with special extractor tools. This combination of seals and locks assures maximum reliability and performance.
| # of Pieces: | 131 |
| Brand: | Kimball Midwest |
| Industry Number: | N/A |
| Private Label: | Yes |
| Rated Capacity: | N/A |
| Series: | Weatherpack |
| Shape: | Assortment |
| Wire Diameter: | 20-14 |
Kit Contains:
- 22-100 - Weatherpack Female Automotive Terminal 16 - 14 AWG - Qty. 25
- 22-101 - Weatherpack Male Automotive Terminal 16 - 14 AWG - Qty. 25
- 22-102 - Weatherpack Female Automotive Terminal 20 - 18 AWG - Qty. 25
- 22-103 - Weatherpack Male Automotive Terminal 20 - 18 AWG - Qty. 25
- 22-105 - General Motors Metripack Single Wire Cable Seal - Qty. 10
- 22-110 - Weatherpack Single Female Connector Body Shell - Qty. 3
- 22-111 - Weatherpack Single Male Connector Body Shell - Qty. 3
- 22-112 - Weatherpack Double Female Connector Body Shell - Qty. 3
- 22-113 - Weatherpack Double Male Connector Body Shell - Qty. 3
- 22-114 - Weatherpack Triple Female Connector Body Shell - Qty. 2
- 22-115 - Weatherpack Triple Male Connector Body Shell - Qty. 2
- 22-116 - Weatherpack Quadruple Female Connector Body Shell - Qty. 2
- 22-117 - Weatherpack Quadruple Male Connector Body Shell - Qty. 2
- 22-108 - Weatherpack Terminal Extractor - Qty. 1
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
