Deutsch DTM Terminal Assortment
Deutsch DTM Terminal Assortment thumbnail 1

Deutsch DTM Terminal Assortment

Name: Deutsch DTM Terminal Assortment
View All Product Variations
Item #: 402337
Package Weight: 8.7 lbs

Complete Your Assembly

Product Details

  • Environmentally sealed connectors designed for cable-to-cable application on the engine, under the hood, on the chassis, or under the cab.
  • Ideal wherever high quality sealed connections are required.
  • Thermoplastic housings are rated for -67°F to 257°F .
  • Silicone seals allow connectors to withstand extreme moisture.
  • Rated for 24 thru 16 gauge wire, 7.5 amps maximum on all contacts.
  • Contact insertion and withdrawal requires no special tools; contacts are automatically retained in the housings upon insertion.
  • Locking wedges provide positive contact retention, and are snapped into place after all contacts are installed.

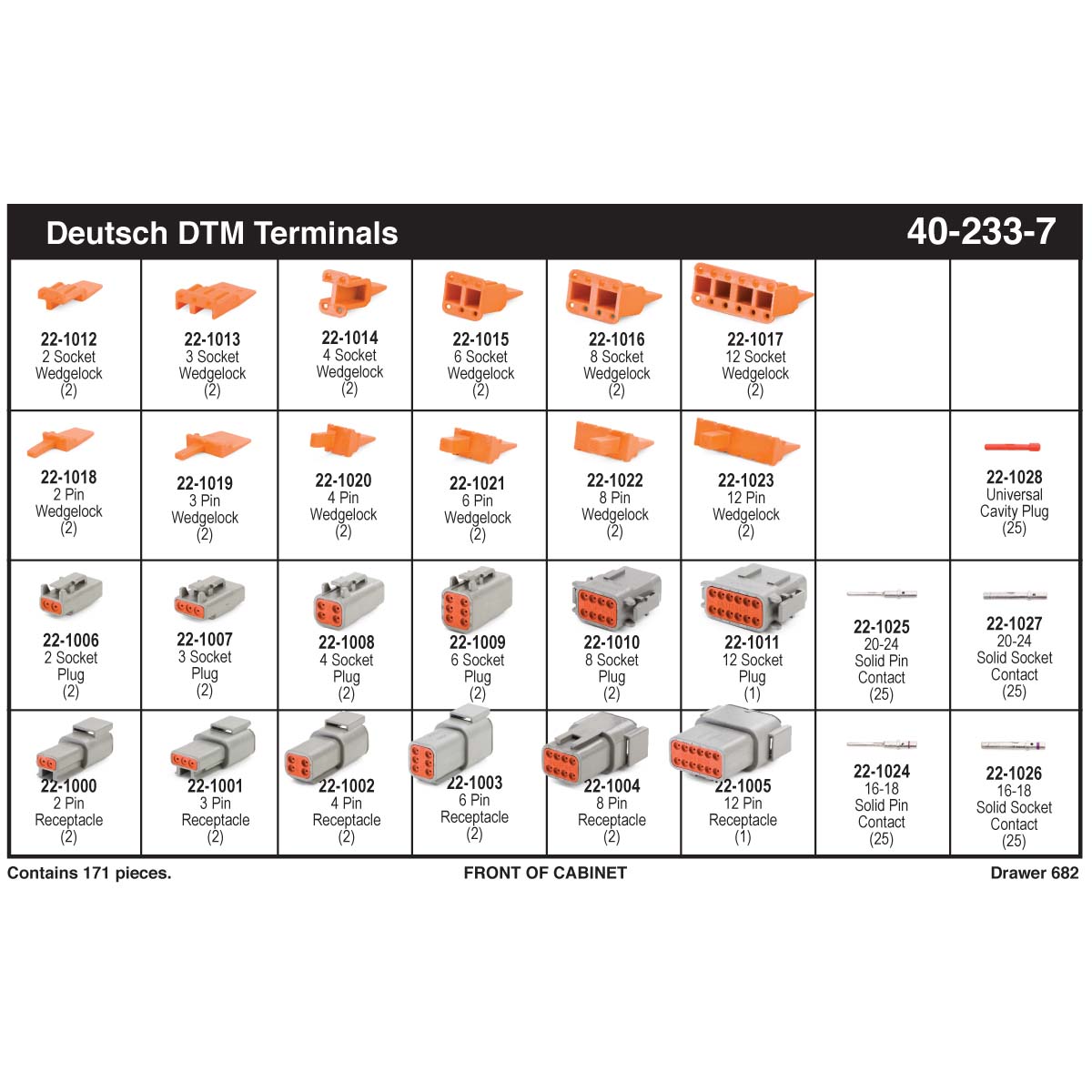

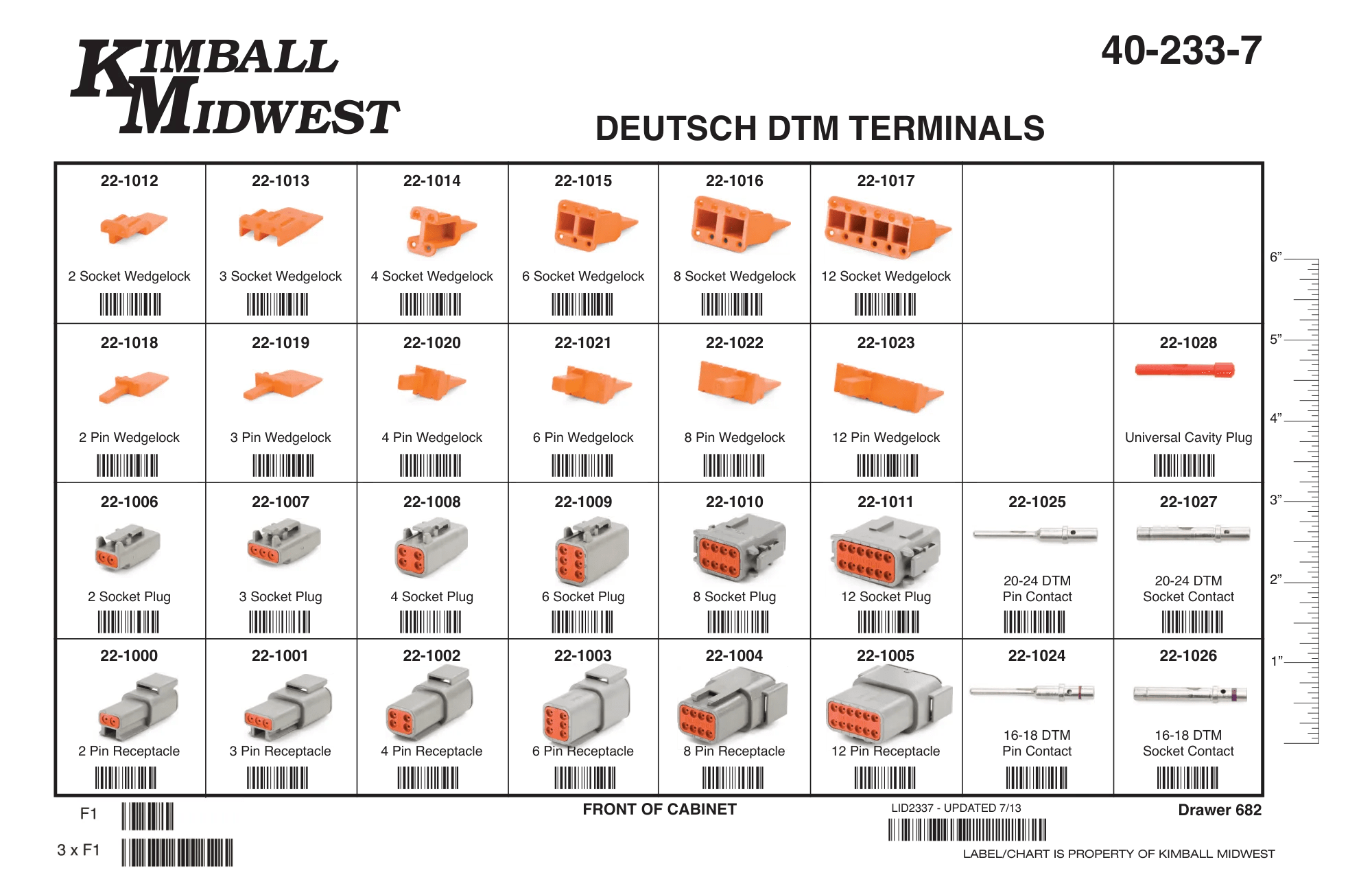

Assortment Contains:

  • 682 - 32 Compartment Drawer - Qty. 1
  • 22-1000 - Deutsch DTM Series Housing - 2 Pin Receptacle - Qty. 2
  • 22-1001 - Deutsch DTM Series Housing - 3 Pin Receptacle - Qty. 2
  • 22-1002 - Deutsch DTM Series Housing - 4 Pin Receptacle - Qty. 2
  • 22-1003 - Deutsch DTM Series Housing - 6 Pin Receptacle - Qty. 2
  • 22-1004 - Deutsch DTM Series Housing - 8 Pin Receptacle - Qty. 2
  • 22-1005 - Deutsch DTM Series Housing - 12 Pin Receptacle - Qty. 1
  • 22-1006 - Deutsch DTM Series Housing - 2 Pin Socket Plug - Qty. 2
  • 22-1007 - Deutsch DTM Series Housing - 3 Pin Socket Plug - Qty. 2
  • 22-1008 - Deutsch DTM Series Housing - 4 Pin Socket Plug - Qty. 2
  • 22-1009 - Deutsch DTM Series Housing - 6 Pin Socket Plug - Qty. 2
  • 22-1010 - Deutsch DTM Series Housing Socket Plug - 8 Pin Socket Plug - Qty. 2
  • 22-1011 - Deutsch DTM Series Housing Socket - 12 Pin Socket Plug - Qty. 1
  • 22-1012 - Deutsch DTM Series Locking Wedge - 2 Socket Plug - Qty. 2
  • 22-1013 - Deutsch DTM Series Locking Wedge - 3 Socket Plug - Qty. 2
  • 22-1014 - Deutsch DTM Series Locking Wedge - 4 Socket Plug - Qty. 2
  • 22-1015 - Deutsch DTM Series Locking Wedge - 6 Socket Plug - Qty. 2
  • 22-1016 - Deutsch DTM Series Locking Wedge - 8 Socket Plug - Qty. 2
  • 22-1017 - Deutsch DTM Series Locking Wedge - 12 Socket Plug - Qty. 2
  • 22-1018 - Deutsch DTM Series Locking Wedge - 2 Pin Receptacle - Qty. 2
  • 22-1019 - Deutsch DTM Series Locking Wedge - 3 Pin Receptacle - Qty. 2
  • 22-1020 - Deutsch DTM Series Locking Wedge - 4 Pin Receptacle - Qty. 2
  • 22-1021 - Deutsch DTM Series Locking Wedge - 6 Pin Receptacle - Qty. 2
  • 22-1022 - Deutsch DTM Series Locking Wedge - 8 Pin Receptacle - Qty. 2
  • 22-1023 - Deutsch DTM Series Locking Wedge - 12 Pin Receptacle - Qty. 2
  • 22-1024 - 16 - 18 AWG Deutsch DTM Series Pin Contact - Qty. 25
  • 22-1025 - 20 - 24 AWG Deutsch DTM Series Pin Contact - Qty. 25
  • 22-1026 - 16 - 18 AWG Deutsch DTM Series Socket Contact - Qty. 25
  • 22-1027 - 20 - 24 AWG Deutsch DTM Series Socket Contact - Qty. 25
  • 22-1028 - Deutsch DTM Series Cavity Plug - Qty. 25

Product Specification

Brand:  Kimball Midwest
Category:  Terminal Assortments - Automotive
Maximum Operating Temperature:  257 °F
Minimum Operating Temperature:  -67 °F
Number of Pieces:  171
Rated Capacity:  7.5A
Series:  Deutsch Assortments
Storage Type:  32-Compartment Drawer
Subcategory:  Deutsch Terminals
Warranty:  30 Day
Wire Diameter:  24 - 16 AWG
