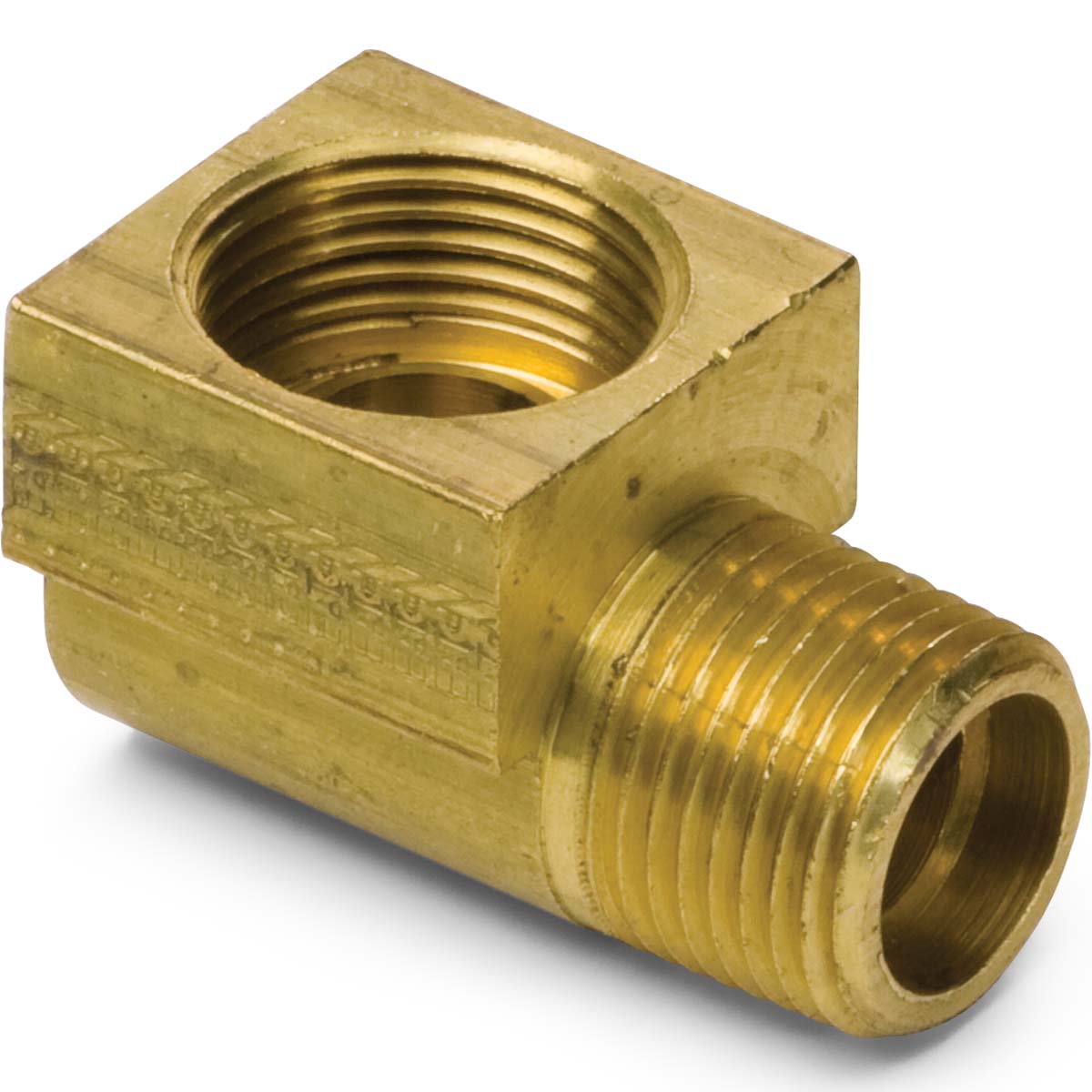

5/16" x 1/8" Inverted Flare 90° Male Elbow - 10 Pack

5/16" x 1/8" Inverted Flare 90° Male Elbow - 10 Pack

Price
Want to view pricing for this product?
Log In or Create Login

Not a Kimball Midwest Customer?
Register
Item Number: 402X5
Package Weight: 0.5 lbs
See all product variations

Product Details

  • TYPICAL APPLICATION: Hydraulic brake, power steering, fuel lines, transmission cooler lines, LP and natural gas.
  • PRESSURE RANGE: Up to 2000 P.S.I. depending on tube size.
  • VIBRATION RATINGS: Excellent resistance.
  • SEALING METHOD: 2-Piece Flare.
  • TEMPERATURE RANGE: -65°F to +250°F range at maximum operating pressure.
  • MATERIAL: CA360 Brass
  • USED WITH: Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Product Documents
P65 Warning

Product Specification

Brand:  Kimball Midwest Approved Vendor
Industry Number:  SAE No. 040202
Male Pipe Size:  1/8"
Material:  CA360 Brass
Maximum Operating Temperature:  250 °F
Maximum Pressure:  2,000 P.S.I.
Minimum Operating Temperature:  -65 °F
Sealing Method:  2 Piece Flare
Shape:  Male Elbow
Thread Pitch:  20
Thread Size:  1/2"-20
Tube OD:  5/16"
Vibration Rating:  Excellent
