Long wire runs and high current loads steal power and cook switches. We carry relays so you can move the switching close to the load for lower resistance and better uptime in vehicles, trucks and equipment. Choose NO, NC or change-over for the circuit, micro ISO for tight fuse boxes with spike protection, weatherproof for exposure and high-capacity when amps climb. Connectors, brackets and terminals finish the job.
Filter
16 results
Top
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Standard Capacity Relays
Relays reduce the length of the wire lead between equipment and the switching mechanism, minimizing resistance and ensuring more power is available. All relays have push-on type terminals. Normally Open (NO) SPST relays close the connection when current is sent, while Normally Closed (NC) SPST relays open the connection. Change-Over Relays (NO/NC) are SPDT type, switching between circuits. Rated at 30 amp for 250,000 cycles, with a 40 amp capacity for 100,000 cycles.
| Item # | Number of Terminals | Switch Type | Style | Amperage | Voltage | Industry Number | Package Qty | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
28913
|
5
|
SPST
|
Mounting Bracket
|
40A
|
12V
|
Tyco V23234C0001X005; Old Bosch 0332019150
|
1
|
Log in to view price | |
|
|
28912
|
5
|
SPST
|
No Mounting Bracket
|
40A
|
12V
|
Tyco V23234C0001X006; Old Bosch 0332019151
|
1
|
Log in to view price | |
|
|
28915
|
5
|
SPDT
|
Mounting Bracket
|
40A
|
12V
|
Tyco V23234A0001X036; Old Bosch 0332209150
|
1
|
Log in to view price | |
|
|
28914
|
5
|
SPDT
|
No Mounting Bracket
|
40A
|
12V
|
Tyco V23234A0001X037; Old Bosch 0332209151
|
1
|
Log in to view price | |
|
|
28917
|
5
|
SPDT
|
Resistor, Mounting Bracket
|
40A
|
12V
|
Tyco V23234A0001X043; Old Bosch 0332209161
|
1
|
Log in to view price | |
|
|
28916
|
5
|
SPDT
|
Resistor, No Mounting Bracket
|
40A
|
12V
|
Tyco V23234A0001X042; Old Bosch 0332209159
|
1
|
Log in to view price |
Weatherproof Relays
Relays designed to reduce wire lead length, minimizing resistance and maximizing power availability. All feature push-on type terminals. Available in Normally Open (NO), Normally Closed (NC), and Change-Over (NO/NC) configurations. Rated for 30 amp with a minimum 250,000 cycle life, and certified for 40 amp with a minimum 100,000 cycle life.
| Item # | Number of Terminals | Switch Type | Style | Amperage | Voltage | Industry Number | Package Qty | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
28919
|
5
|
SPDT
|
Resistor, Mounting Bracket
|
40A
|
12V
|
Hella 87411
|
1
|
Log in to view price | |
|
|
28918
|
5
|
SPDT
|
Resistor, No Mounting Bracket
|
40A
|
12V
|
Hella 87405
|
1
|
Log in to view price |
High Capacity Relays
Relays designed to reduce wire lead length, minimizing resistance and maximizing power availability. All feature push-on type terminals. Available types include Normally Open (NO) SPST, Normally Closed (NC) SPST, and Change-Over (NO/NC) SPDT. Rated for 30 amp with a minimum 250,000 cycle life, and certified for 40 amp with a minimum 100,000 cycle life.
| Item # | Number of Terminals | Switch Type | Style | Amperage | Voltage | Industry Number | Package Qty | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
28911
|
4
|
SPST
|
Mounting Bracket
|
50A
|
12V
|
Tyco V23234B1001X004; Old Bosch 0332019110
|
1
|
Log in to view price | |
|
|
28910
|
4
|
SPST
|
No Mounting Bracket
|
50A
|
12V
|
Tyco V23234B0001X001; Old Bosch 0332019103
|
1
|
Log in to view price |
Micro Relays
MICRO ISO 280 PATTERN relays feature a compact design for efficient use in fuse boxes. Equipped with an INTERNAL RESISTOR OR DIODE to limit voltage spikes, suitable for late model vehicles, school buses, and trucks. Specifications include NO 35A @ 14VDC, NC 25A @ 14VDC, maximum continuous current of 35A, power consumption of 1.3W, and operating temperature range of -40° to 257°F.
| Item # | Number of Terminals | Switch Type | Style | Amperage | Voltage | Industry Number | Package Qty | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
289000
|
4
|
SPST
|
Diode, No Mounting Bracket
|
35A
|
12V
|
PC785-1A-12C-D-X 280
|
1
|
Log in to view price | |
|
|
289002
|
4
|
SPST
|
Resistor, No Mounting Bracket
|
35A
|
12V
|
PC785-1A-12S-R-X 35A 280
|
1
|
Log in to view price | |
|
|
289003
|
5
|
SPDT
|
Resistor, No Mounting Bracket
|
35A
|
12V
|
PC785-1C-12S-R-X 35A 280
|
1
|
Log in to view price |

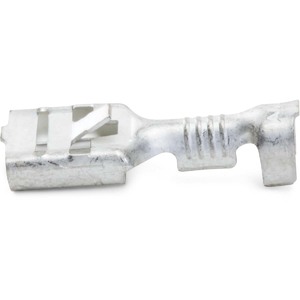

Relay Connector Terminals
The terminal for the relay connector.
| Item # | Wire Diameter | Terminal Style | Package Qty | |||
|---|---|---|---|---|---|---|
|
|
28922
|
16 - 14 AWG
|
Push-On
|
10
|
Log in to view price |

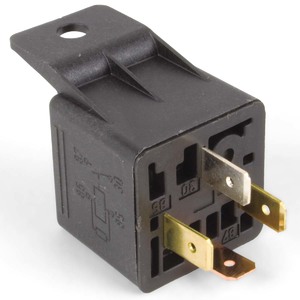

5-Pin High Capacity Relay Connectors w/ Bracket
The product features a relay connector suitable for 4 or 5 pin relays and includes a bracket mount.
| Item # | Number of Terminals | Terminal Style | Industry Number | Package Qty | |||
|---|---|---|---|---|---|---|---|
|
|
28921
|
4 or 5
|
Push-On
|
Bosch 3334485008
|
1
|
Log in to view price |
5-Pin High Capacity Relay Connectors
Connector for 4 or 5 pin relays.
| Item # | Number of Terminals | Terminal Style | Industry Number | Package Qty | |||
|---|---|---|---|---|---|---|---|
|
|
28920
|
4 or 5
|
Push-On
|
Bosch 3334485007
|
1
|
Log in to view price |
