Male Pipe Rigid Hose Ends - 247 N Series

Male SAE JIC 37° Rigid Hose Ends - 247 N Series

Male SAE 45° Flare Rigid Hose Ends - 247 N Series

Inverted Male Swivel Hose Ends - 247 N Series

Flareless Tube Rigid Hose Ends - 247 N Series

SAE 45° Flare Female Swivel Hose Ends - 247 N Series

Female SAE JIC 37° Swivel Hose Ends - 247 N Series

Female SAE JIC 37° Swivel 45° Elbows - 247 N Series

Female SAE 45° Swivel 45° Elbows - 247 N Series

Inverted Male Swivel 90° Elbows - 247 N Series

Female SAE JIC 37° Swivel 90° Elbows - 247 N Series

Female SAE JIC 37° Swivel 90° Long Drop Elbows - 247 N Series

Female SAE 45° Swivel 90° Elbows - 247 N Series

Female SAE 45° Swivel 90° Long Drop Elbows - 247 N Series

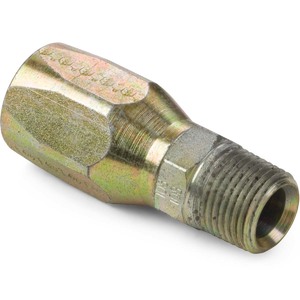

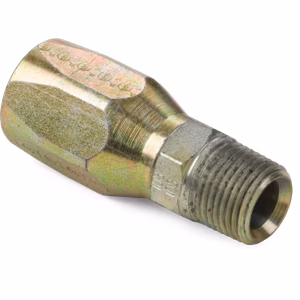

Male Pipe Rigid Hose Ends - 247 N Series

Medium pressure and high temperature hose lines for various applications including truck, industrial, and small engine. Made from AISI/SAE 12L14 carbon steel with a zinc, yellow dichromate finish. Popular in heavy-duty truck markets with a good selection of hose ends. Air brake approved in sizes 4 thru 12.

Hose Size: 3/16"

Pipe Size	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/8"	1/8"-27	External	Straight	1"	2	24704N102	Log in to view price
3/16" x 1/8" Male Pipe Rigid Hose End - 247 N Series Item #: 24704N102 Package Weight: 0.1 lbs View Product Details Log in to Order
1/4"	1/4"-18	External	Straight	1-3/16"	2	24704N104	Log in to view price
3/16" x 1/4" Male Pipe Rigid Hose End - 247 N Series Item #: 24704N104 Package Weight: 0.2 lbs View Product Details Log in to Order

Hose Size: 1/4"

Pipe Size	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/8"	1/8"-27	External	Straight	1-1/4"	2	24705N102	Log in to view price
1/4" x 1/8" Male Pipe Rigid Hose End - 247 N Series Item #: 24705N102 Package Weight: 0.2 lbs View Product Details Log in to Order
1/4"	1/4"-18	External	Straight	1-1/4"	2	24705N104	Log in to view price
1/4" x 1/4" Male Pipe Rigid Hose End - 247 N Series Item #: 24705N104 Package Weight: 0.2 lbs View Product Details Log in to Order

Hose Size: 5/16"

Pipe Size	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/4"	1/4"-18	External	Straight	1-1/4"	2	24706N104	Log in to view price
5/16" x 1/4" Male Pipe Rigid Hose End - 247 N Series Item #: 24706N104 Package Weight: 0.3 lbs View Product Details Log in to Order
3/8"	3/8"-18	External	Straight	1-1/4"	2	24706N106	Log in to view price
5/16" x 3/8" Male Pipe Rigid Hose End - 247 N Series Item #: 24706N106 Package Weight: 0.3 lbs View Product Details Log in to Order

Hose Size: 13/32"

Pipe Size	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/8"	3/8"-18	External	Straight	1-3/8"	2	24708N106	Log in to view price
13/32" x 3/8" Male Pipe Rigid Hose End - 247 N Series Item #: 24708N106 Package Weight: 0.5 lbs View Product Details Log in to Order
1/2"	1/2"-14	External	Straight	1-5/8"	2	24708N108	Log in to view price
13/32" x 1/2" Male Pipe Rigid Hose End - 247 N Series Item #: 24708N108 Package Weight: 0.6 lbs View Product Details Log in to Order

Hose Size: 1/2"

Pipe Size	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/2"	1/2"-14	External	Straight	1-5/8"	2	24710N108	Log in to view price
1/2" x 1/2" Male Pipe Rigid Hose End - 247 N Series Item #: 24710N108 Package Weight: 0.7 lbs View Product Details Log in to Order
3/4"	3/4"-14	External	Straight	1-11/16"	2	24710N112	Log in to view price
1/2" x 3/4" Male Pipe Rigid Hose End - 247 N Series Item #: 24710N112 Package Weight: 0.8 lbs View Product Details Log in to Order

Hose Size: 5/8"

Pipe Size	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/4"	3/4"-14	External	Straight	1-3/4"	2	24712N112	Log in to view price
5/8" x 3/4" Male Pipe Rigid Hose End - 247 N Series Item #: 24712N112 Package Weight: 0.9 lbs View Product Details Log in to Order

Male SAE JIC 37° Rigid Hose Ends - 247 N Series

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/16"	1/4"	7/16"-20	External	Straight	1-3/16"	2	24704N504	Log in to view price
3/16" x 1/4" Male SAE JIC 37° Rigid Hose End - 247 N Series Item #: 24704N504 Package Weight: 0.2 lbs View Product Details Log in to Order
1/4"	5/16"	1/2"-20	External	Straight	1-3/16"	2	24705N505	Log in to view price
1/4" x 5/16" Male SAE JIC 37° Rigid Hose End - 247 N Series Item #: 24705N505 Package Weight: 0.2 lbs View Product Details Log in to Order
5/16"	3/8"	9/16"-18	External	Straight	1-1/4"	2	24706N506	Log in to view price
5/16" x 3/8" Male SAE JIC 37° Rigid Hose End - 247 N Series Item #: 24706N506 Package Weight: 0.3 lbs View Product Details Log in to Order
13/32"	1/2"	3/4"-16	External	Straight	1-9/16"	2	24708N508	Log in to view price
13/32" x 1/2" Male SAE JIC 37° Rigid Hose End - 247 N Series Item #: 24708N508 Package Weight: 0.5 lbs View Product Details Log in to Order
1/2"	5/8"	7/8"-14	External	Straight	1-11/16"	2	24710N510	Log in to view price
1/2" x 5/8" Male SAE JIC 37° Rigid Hose End - 247 N Series Item #: 24710N510 Package Weight: 0.8 lbs View Product Details Log in to Order
5/8"	3/4"	1-1/16"-12	External	Straight	1-13/16"	2	24712N512	Log in to view price
5/8" x 3/4" Male SAE JIC 37° Rigid Hose End - 247 N Series Item #: 24712N512 Package Weight: 1.4 lbs View Product Details Log in to Order
7/8"	1"	1-5/16"-12	External	Straight	1-11/16"	2	24716N516	Log in to view price
7/8" x 1" Male SAE JIC 37° Rigid Hose End - 247 N Series Item #: 24716N516 Package Weight: 1.3 lbs View Product Details Log in to Order

Male SAE 45° Flare Rigid Hose Ends - 247 N Series

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/16"	1/4"	7/16"-20	External	Straight	1-1/16"	2	24704N304	Log in to view price
3/16" x 1/4" SAE 45° Flare Male Rigid Hose End - 247 N Series Item #: 24704N304 Package Weight: 0.2 lbs View Product Details Log in to Order
1/4"	5/16"	1/2"-20	External	Straight	1-3/16"	2	24705N305	Log in to view price
1/4" x 5/16" SAE 45° Flare Male Rigid Hose End - 247 N Series Item #: 24705N305 Package Weight: 0.2 lbs View Product Details Log in to Order
5/16"	3/8"	5/8"-18	External	Straight	1-1/4"	2	24706N306	Log in to view price
5/16" x 3/8" SAE 45° Flare Male Rigid Hose End - 247 N Series Item #: 24706N306 Package Weight: 0.3 lbs View Product Details Log in to Order
13/32"	1/2"	3/4"-16	External	Straight	1-1/2"	2	24708N308	Log in to view price
13/32" x 1/2" SAE 45° Flare Male Rigid Hose End - 247 N Series Item #: 24708N308 Package Weight: 0.5 lbs View Product Details Log in to Order
1/2"	5/8"	7/8"-14	External	Straight	1-11/16"	2	24710N310	Log in to view price
1/2" x 5/8" SAE 45° Flare Male Rigid Hose End - 247 N Series Item #: 24710N310 Package Weight: 0.7 lbs View Product Details Log in to Order

Inverted Male Swivel Hose Ends - 247 N Series

Medium pressure and high temperature hose lines for various applications including truck and industrial use. Compatible with hoses H059, H069, H166, H239, H366, and H569. Made from AISI/SAE 12L14 carbon steel with a zinc, yellow dichromate finish. Popular in heavy-duty truck markets with a good selection of hose ends. DOT AII, SAE J1402 Type AII approved.

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/16"	1/4"	7/16"-24	External	Straight	1-13/16"	2	24704NB04	Log in to view price
3/16" x 1/4" Inverted Male Swivel Hose End - 247 N Series Item #: 24704NB04 Package Weight: 0.2 lbs View Product Details Log in to Order
1/4"	5/16"	1/2"-20	External	Straight	2"	2	24705NB05	Log in to view price
1/4" x 5/16" Inverted Male Swivel Hose End - 247 N Series Item #: 24705NB05 Package Weight: 0.3 lbs View Product Details Log in to Order
5/16"	3/8"	5/8"-18	External	Straight	2"	2	24706NB06	Log in to view price
5/16" x 3/8" Inverted Male Swivel Hose End - 247 N Series Item #: 24706NB06 Package Weight: 0.3 lbs View Product Details Log in to Order
13/32"	1/2"	3/4"-18	External	Straight	2-1/2"	2	24708NB08	Log in to view price
13/32" x 1/2" Inverted Male Swivel Hose End - 247 N Series Item #: 24708NB08 Package Weight: 0.5 lbs View Product Details Log in to Order

Flareless Tube Rigid Hose Ends - 247 N Series

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
5/16"	3/8"	9/16"-18	Internal	Straight	1-1/8"	1	24706N756	Log in to view price
5/16" x 3/8" Flareless Tube Rigid Hose End - 247 N Series Item #: 24706N756 Package Weight: 0.2 lbs View Product Details Log in to Order
5/16"	1/2"	3/4"-16	Internal	Straight	1-1/4"	1	24706N758	Log in to view price
5/16" x 1/2" Flareless Tube Rigid Hose End - 247 N Series Item #: 24706N758 Package Weight: 0.3 lbs View Product Details Log in to Order

SAE 45° Flare Female Swivel Hose Ends - 247 N Series

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
5/16"	3/8"	5/8"-18	Internal	Straight	1-7/16"	2	24706N406	Log in to view price
5/16" x 3/8" SAE 45° Flare Female Swivel Hose End - 247 N Series Item #: 24706N406 Package Weight: 0.4 lbs View Product Details Log in to Order
13/32"	3/8"	5/8"-18	Internal	Straight	1-9/16"	2	24708N406	Log in to view price
13/32" x 3/8" SAE 45° Flare Female Swivel Hose End - 247 N Series Item #: 24708N406 Package Weight: 0.5 lbs View Product Details Log in to Order
5/8"	3/4"	1-1/16"-14	Internal	Straight	2"	2	24712N412	Log in to view price
5/8" x 3/4" SAE 45° Flare Female Swivel Hose End - 247 N Series Item #: 24712N412 Package Weight: 1.2 lbs View Product Details Log in to Order

Female SAE JIC 37° Swivel Hose Ends - 247 N Series

Hose Size: 3/16"

Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/4"	7/16"-20	Internal	Straight	1-5/16"	2	24704N604	Log in to view price
3/16" x 1/4" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24704N604 Package Weight: 0.2 lbs View Product Details Log in to Order

Hose Size: 1/4"

Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
5/16"	1/2"-20	Internal	Straight	1-1/2"	2	24705N605	Log in to view price
1/4" x 5/16" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24705N605 Package Weight: 0.3 lbs View Product Details Log in to Order

Hose Size: 5/16"

Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/4"	7/16"-20	Internal	Straight	1-5/16"	2	24706N604	Log in to view price
5/16" x 1/4" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24706N604 Package Weight: 0.3 lbs View Product Details Log in to Order
5/16"	1/2"-20	Internal	Straight	1-1/2"	2	24706N605	Log in to view price
5/16" x 5/16" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24706N605 Package Weight: 0.3 lbs View Product Details Log in to Order
3/8"	9/16"-18	Internal	Straight	1-1/2"	2	24706N606	Log in to view price
5/16" x 3/8" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24706N606 Package Weight: 0.3 lbs View Product Details Log in to Order
1/2"	3/4"-16	Internal	Straight	1-9/16"	2	24706N608	Log in to view price
5/16" x 1/2" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24706N608 Package Weight: 0.4 lbs View Product Details Log in to Order

Hose Size: 13/32"

Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/2"	3/4"-16	Internal	Straight	1-3/4"	2	24708N608	Log in to view price
13/32" x 1/2" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24708N608 Package Weight: 0.5 lbs View Product Details Log in to Order

Hose Size: 1/2"

Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/2"	3/4"-16	Internal	Straight	1-3/4"	2	24710N608	Log in to view price
1/2" x 1/2" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24710N608 Package Weight: 0.7 lbs View Product Details Log in to Order
5/8"	7/8"-14	Internal	Straight	1-3/4"	2	24710N610	Log in to view price
1/2" x 5/8" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24710N610 Package Weight: 0.8 lbs View Product Details Log in to Order

Hose Size: 5/8"

Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/4"	1-1/16"-12	Internal	Straight	1-15/16"	2	24712N612	Log in to view price
5/8" x 3/4" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24712N612 Package Weight: 1.1 lbs View Product Details Log in to Order

Hose Size: 7/8"

Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1"	1-5/16"-12	Internal	Straight	2"	2	24716N616	Log in to view price
7/8" x 1" Female SAE JIC 37° Swivel Hose End - 247 N Series Item #: 24716N616 Package Weight: 1.5 lbs View Product Details Log in to Order

Female SAE JIC 37° Swivel 45° Elbows - 247 N Series

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/16"	1/4"	7/16"-20	Internal	Elbow	1-3/4"	1	24704N684	Log in to view price
3/16" x 1/4" Female SAE JIC 37° Swivel 45° Elbow - 247 N Series Item #: 24704N684 Package Weight: 0.1 lbs View Product Details Log in to Order
1/4"	5/16"	1/2"-20	Internal	Elbow	1-7/8"	1	24705N685	Log in to view price
1/4" x 5/16" Female SAE JIC 37° Swivel 45° Elbow - 247 N Series Item #: 24705N685 Package Weight: 0.1 lbs View Product Details Log in to Order
5/16"	3/8"	9/16"-18	Internal	Elbow	1-7/8"	1	24706N686	Log in to view price
5/16" x 3/8" Female SAE JIC 37° Swivel 45° Elbow - 247 N Series Item #: 24706N686 Package Weight: 0.2 lbs View Product Details Log in to Order
13/32"	1/2"	3/4"-16	Internal	Elbow	2-1/4"	1	24708N688	Log in to view price
13/32" x 1/2" Female SAE JIC 37° Swivel 45° Elbow - 247 N Series Item #: 24708N688 Package Weight: 0.3 lbs View Product Details Log in to Order
1/2"	5/8"	7/8"-14	Internal	Elbow	2-7/16"	1	24710N690	Log in to view price
1/2" x 5/8" Female SAE JIC 37° Swivel 45° Elbow - 247 N Series Item #: 24710N690 Package Weight: 0.5 lbs View Product Details Log in to Order
5/8"	3/4"	1-1/16"-12	Internal	Elbow	2-7/8"	1	24712N692	Log in to view price
5/8" x 3/4" Female SAE JIC 37° Swivel 45° Elbow - 247 N Series Item #: 24712N692 Package Weight: 0.7 lbs View Product Details Log in to Order
7/8"	1"	1-15/16"-12	Internal	Elbow	3-15/16"	1	24716N696	Log in to view price
7/8" x 1" Female SAE JIC 37° Swivel 45° Elbow - 247 N Series Item #: 24716N696 Package Weight: 0.8 lbs View Product Details Log in to Order
1-1/8"	1-1/4"	1-5/8"-12	Internal	Elbow	4"	1	24720N697	Log in to view price
1-1/8" x 1-1/4" Female SAE JIC 37° Swivel 45° Elbow - 247 N Series Item #: 24720N697 Package Weight: 1.8 lbs View Product Details Log in to Order

Female SAE 45° Swivel 45° Elbows - 247 N Series

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
5/16"	3/8"	5/8"-18	Internal	Elbow	1-7/8"	1	24706N486	Log in to view price
5/16" x 3/8" Female 45° Swivel 45° Elbow - 247 N Series Item #: 24706N486 Package Weight: 0.2 lbs View Product Details Log in to Order

Inverted Male Swivel 90° Elbows - 247 N Series

Hose Size: 3/16"

Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/4"	7/16"-24	External	90° Elbow	1-1/2"	1	24704NE04	Log in to view price
3/16" x 1/4" Inverted Male Swivel 90° Elbow - 247 N Series Item #: 24704NE04 Package Weight: 0.1 lbs View Product Details Log in to Order

Hose Size: 1/4"

Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
5/16"	1/2"-20	External	90° Elbow	1-3/4"	1	24705NE05	Log in to view price
1/4" x 5/16" Inverted Male Swivel 90° Elbow - 247 N Series Item #: 24705NE05 Package Weight: 0.1 lbs View Product Details Log in to Order

Hose Size: 5/16"

Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/4"	7/16"-24	External	90° Elbow	1-1/2"	1	24706NE04	Log in to view price
5/16" x 1/4" Inverted Male Swivel 90° Elbow Hose End - 247 N Series Item #: 24706NE04 Package Weight: 0.1 lbs View Product Details Log in to Order
5/16"	1/2"-20	External	90° Elbow	1-3/4"	1	24706NE05	Log in to view price
5/16" x 5/16" Inverted Male Swivel 90° Elbow Hose End - 247 N Series Item #: 24706NE05 Package Weight: 0.1 lbs View Product Details Log in to Order
3/8"	5/8"-18	External	90° Elbow	2-1/16"	1	24706NE06	Log in to view price
5/16" x 3/8" Inverted Male Swivel 90° Elbow Hose End - 247 N Series Item #: 24706NE06 Package Weight: 0.2 lbs View Product Details Log in to Order

Female SAE JIC 37° Swivel 90° Elbows - 247 N Series

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/16"	1/4"	7/16"-20	Internal	Elbow	1-1/2"	1	24704N664	Log in to view price
3/16" x 1/4" Female SAE JIC 37° Swivel 90° Elbow - 247 N Series Item #: 24704N664 Package Weight: 0.1 lbs View Product Details Log in to Order
1/4"	5/16"	1/2"-20	Internal	Elbow	1-13/16"	1	24705N665	Log in to view price
1/4" x 5/16" Female SAE JIC 37° Swivel 90° Elbow - 247 N Series Item #: 24705N665 Package Weight: 0.2 lbs View Product Details Log in to Order
5/16"	3/8"	9/16"-18	Internal	Elbow	1-13/16"	1	24706N666	Log in to view price
5/16" x 3/8" Female SAE JIC 37° Swivel 90° Elbow - 247 N Series Item #: 24706N666 Package Weight: 0.2 lbs View Product Details Log in to Order
13/32"	1/2"	3/4"-16	Internal	Elbow	2-1/16"	1	24708N668	Log in to view price
13/32" x 1/2" Female SAE JIC 37° Swivel 90° Elbow - 247 N Series Item #: 24708N668 Package Weight: 0.3 lbs View Product Details Log in to Order
1/2"	1/2"	3/4"-16	Internal	Elbow	2-5/32"	1	24710N668	Log in to view price
1/2" x 1/2" Female SAE JIC 37° Swivel 90° Elbow - 247 N Series Item #: 24710N668 Package Weight: 0.4 lbs View Product Details Log in to Order
1/2"	5/8"	7/8"-14	Internal	Elbow	2-1/2"	1	24710N670	Log in to view price
1/2" x 5/8" Female SAE JIC 37° Swivel 90° Elbow - 247 N Series Item #: 24710N670 Package Weight: 0.5 lbs View Product Details Log in to Order
5/8"	3/4"	1-1/16"-12	Internal	Elbow	2-13/16"	1	24712N672	Log in to view price
5/8" x 3/4" Female SAE JIC 37° Swivel 90° Elbow - 247 N Series Item #: 24712N672 Package Weight: 0.7 lbs View Product Details Log in to Order
7/8"	1"	1-5/16"-12	Internal	Elbow	2-27/32"	1	24716N676	Log in to view price
7/8" x 1" Female SAE JIC 37° Swivel 90° Elbow - 247 N Series Item #: 24716N676 Package Weight: 0.9 lbs View Product Details Log in to Order
1-1/8"	1-1/4"	1-5/8"-12	Internal	Elbow	3-1/4"	1	24720N677	Log in to view price
1-1/8" x 1-1/4" Female SAE JIC 37° Swivel 90° Elbow - 247 N Series Item #: 24720N677 Package Weight: 1.5 lbs View Product Details Log in to Order

Female SAE JIC 37° Swivel 90° Long Drop Elbows - 247 N Series

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/16"	1/4"	7/16"-20	Internal	Elbow	1-11/16"	1	24704N644	Log in to view price
3/16" x 1/4" Female SAE JIC 37° Swivel 90° Long Drop Elbow - 247 N Series Item #: 24704N644 Package Weight: 0.1 lbs View Product Details Log in to Order
1/4"	5/16"	1/2"-20	Internal	Elbow	2"	1	24705N645	Log in to view price
1/4" x 5/16" Female SAE JIC 37° Swivel 90° Long Drop Elbow - 247 N Series Item #: 24705N645 Package Weight: 0.1 lbs View Product Details Log in to Order
5/16"	3/8"	9/16"-18	Internal	Elbow	2"	1	24706N646	Log in to view price
5/16" x 3/8" Female SAE JIC 37° Swivel 90° Long Drop Elbow - 247 N Series Item #: 24706N646 Package Weight: 0.2 lbs View Product Details Log in to Order
13/32"	1/2"	3/4"-16	Internal	Elbow	2-1/4"	1	24708N648	Log in to view price
13/32" x 1/2" Female SAE JIC 37° Swivel 90° Long Drop Elbow - 247 N Series Item #: 24708N648 Package Weight: 0.3 lbs View Product Details Log in to Order
1/2"	5/8"	7/8"-14	Internal	Elbow	2-5/16"	1	24710N650	Log in to view price
1/2" x 5/8" Female SAE JIC 37° Swivel 90° Long Drop Elbow - 247 N Series Item #: 24710N650 Package Weight: 0.5 lbs View Product Details Log in to Order
5/8"	3/4"	1-1/16"-12	Internal	Elbow	3"	1	24712N652	Log in to view price
5/8" x 3/4" Female SAE JIC 37° Swivel 90° Long Drop Elbow - 247 N Series Item #: 24712N652 Package Weight: 0.8 lbs View Product Details Log in to Order
7/8"	1"	1-5/16"-12	Internal	Elbow	3-3/16"	1	24716N656	Log in to view price
7/8" x 1" Female SAE JIC 37° Swivel 90° Long Drop Elbow - 247 N Series Item #: 24716N656 Package Weight: 1.1 lbs View Product Details Log in to Order

Female SAE 45° Swivel 90° Elbows - 247 N Series

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
5/16"	3/8"	5/8"-18	Internal	Elbow	1-13/16"	1	24706N466	Log in to view price
5/16" x 3/8" SAE 45° Female Swivel 90° Elbow - 247 N Series Item #: 24706N466 Package Weight: 0.2 lbs View Product Details Log in to Order

Female SAE 45° Swivel 90° Long Drop Elbows - 247 N Series

Hose Size	Tube OD	Thread Size	Thread Type	Shape	Hose Cut-Off Factor	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
5/16"	3/8"	5/8"-18	Internal	Elbow	1-3/4"	1	24706N446	Log in to view price
5/16" x 3/8" Female 45° Swivel 90° Long Drop Elbow - 247 N Series Item #: 24706N446 Package Weight: 0.2 lbs View Product Details Log in to Order
