Diagnostic Port Couplings

Chasing a pressure problem? PD Series Diagnostic Port Couplings and nipples let you snap gauges and test gear onto hydraulic circuits fast with flush-face poppet valves to cut oil spill and air inclusion. Grip-tight knurled sleeves stay controllable with gloves. Built for up to 6,000 psi and meets SAE J1502 and ISO 15171-1.

Filter Products 11 Results
Clear Filters
Clear Filters
Clear Filters
Filter Products
Product View:
Filter
Clear All
11 results

Top

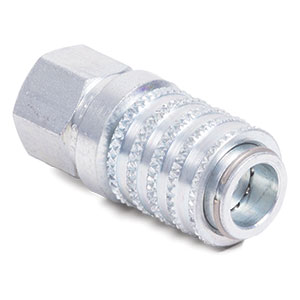

Diagnostic Port Couplings - PD Series
Diagnostic Port Couplings - PD Series
Diagnostic port couplings for connecting gauges and diagnostic equipment. Silver metal couplers with grip-tight knurled sleeves for easier connection while wearing gloves. Rated to 6,000 psi and designed to meet or exceed SAE J1502 and ISO 15171-1 performance.
Item # Body Size Thread Size Thread Type Maximum Pressure Package Qty
1/8" FPT Diagnostic Port Coupling - PD Series
522000
1/8"
1/8"-27
Female NPT
6,000 psi
1
Log in to view price
1/4" FPT Diagnostic Port Coupling - PD Series
522001
1/8"
1/4"-18
Female NPT
6,000 psi
1
Log in to view price
1/4" MPT Diagnostic Port Coupling - PD Series
522002
1/8"
1/4"-18
Male NPT
6,000 psi
1
Log in to view price
Diagnostic Port Nipples - PD Series
Diagnostic Port Nipples - PD Series
Diagnostic port nipples for connecting gauges and diagnostic equipment. Machined from high tensile steel with flush-face poppet valves and knurled sleeves. Rated to 6,000 psi and designed to meet SAE J1502 and ISO 15171-1 for reliable service in repair and equipment maintenance.
Item # Body Size Thread Size Thread Type Maximum Pressure Package Qty
1/8" FPT Diagnostic Port Nipple - PD Series - 5 Pack
522010
1/8"
1/8"-27
Female NPT
6,000 psi
5
Log in to view price
1/8" MPT Diagnostic Port Nipple - PD Series - 5 Pack
522011
1/8"
1/8"-27
Male NPT
6,000 psi
5
Log in to view price
1/4" FPT Diagnostic Port Nipple - PD Series - 5 Pack
522013
1/8"
1/4"-18
Female NPT
6,000 psi
5
Log in to view price
1/4" MPT Diagnostic Port Nipple - PD Series - 5 Pack
522014
1/8"
1/4"-18
Male NPT
6,000 psi
5
Log in to view price
7/16"-20 ORT Diagnostic Port Nipple - PD Series - 5 Pack
522012
1/8"
7/16"-20
ORT
6,000 psi
5
Log in to view price
1/2"-20 ORT Diagnostic Port Nipple - PD Series - 5 Pack
522015
1/8"
1/2"-20
ORT
6,000 psi
5
Log in to view price
9/16-18 ORT Diagnostic Port Nipple - PD Series - 5 Pack
522016
1/8"
9/16"-18
ORT
6,000 psi
5
Log in to view price
M14x1.5 Diagnostic Port Nipple - PD Series - 5 Pack
522020
1/8"
M14 x 1.5
Metric
6,000 psi
5
Log in to view price
