Micro 2, Mini & ATC Fuse Assortment

MICRO 2 FUSES

• SUB-MINIATURE DESIGN - 5.0mm center line spacing allows for a 38% reduction in spacing per fuse compared to ATM mini fuses. Allows more circuits in a smaller footprint.
• MEETS OEM SPECIFICATIONS - High performance fuses meet exacting specifications for superior reliability.
• OEM APPLICATIONS - 2013 and newer domestic and imported vehicles.
• SPECIFICATIONS:
  Voltage Rating: 32 VDC
  Interrupting Ratings: 1000A @ 32 VDC
  Operating Temperature Range: -40°F to +257°F
  Terminals: Silver plated zinc alloy

MINI FUSES

• Provides the sophisticated protection required on late model vehicles.
• Allows installing more fuses in the same amount of space to protect the additional circuits, circuitry and on-board electronics found in new vehicles.
• Silver plated terminals provide superior electrical contact.
• Transparent, color coded housings give fast identification of blown elements.

ATC FUSES

• ATC STYLE FUSE - Blade style fuse interchanges with ATO style.
• CLOSED HOUSING DESIGN - Fuse elements are encased in closed housings for weather and moisture resistance.
• VEHICLE AND MARINE USE - Ideal for truck, automotive, motorcycle, RV, watercraft and more.
• COLOR CODED - Fuse housings are color coded by amperage ratings to allow the quick selection of the correct fuse.
• CLEAR FUSE HOUSINGS - Transparent housings allow fast and easy visual identification of blown elements.

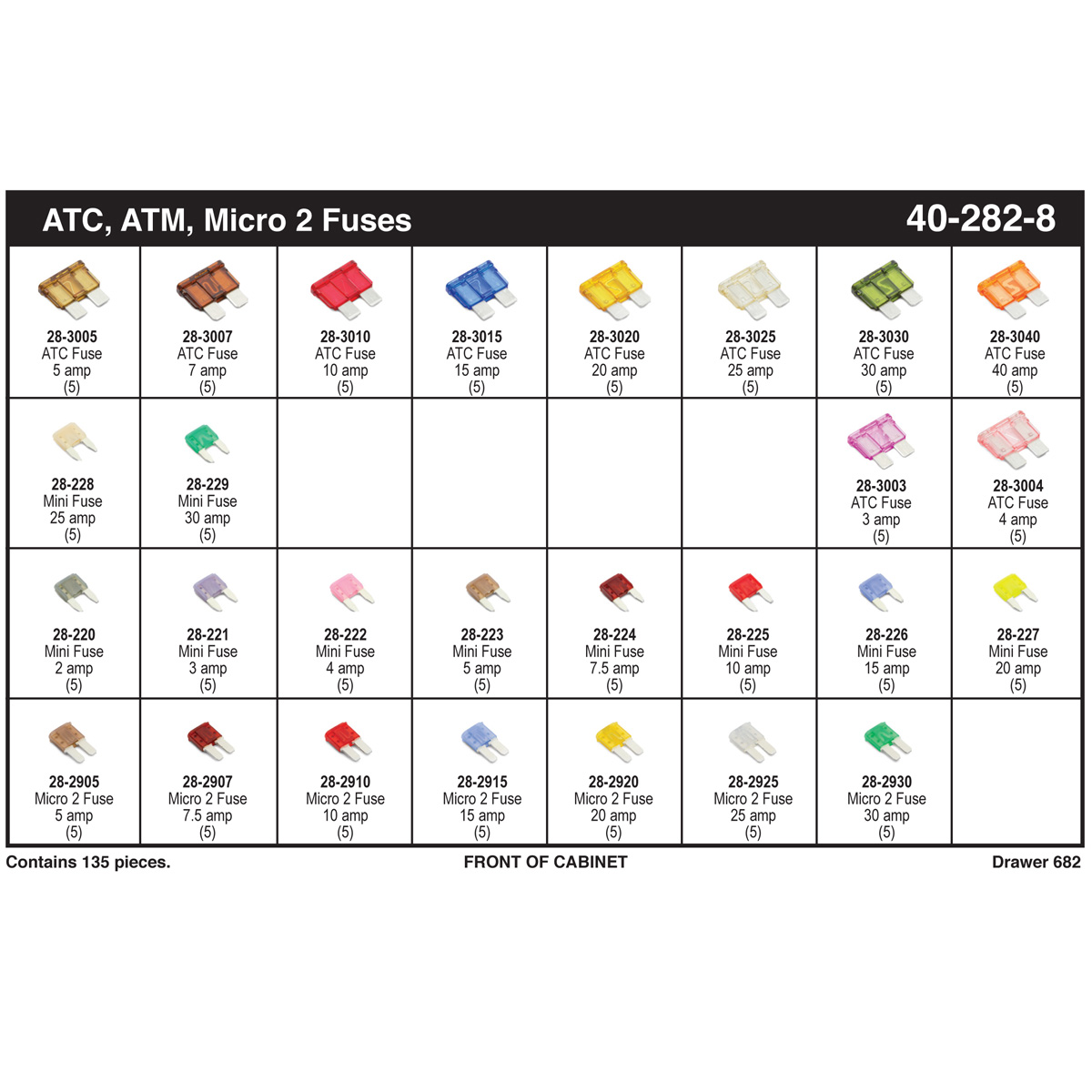

Kit Contains:

• 28-2905 - 5 Amp Micro 2 Fuse - Qty. 5
• 28-2907 - 7.5 Amp Micro 2 Fuse - Qty. 5
• 28-2910 - 10 Amp Micro 2 Fuse - Qty. 5
• 28-2915 - 15 Amp Micro 2 Fuse - Qty. 5
• 28-2920 - 20 Amp Micro 2 Fuse - Qty. 5
• 28-2925 - 25 Amp Micro 2 Fuse - Qty. 5
• 28-2930 - 30 Amp Micro 2 Fuse - Qty. 5
• 28-220 - 2 Amp Mini Fuse - Qty. 5
• 28-221 - 3 Amp Mini Fuse - Qty. 5
• 28-222 - 4 Amp Mini Fuse - Qty. 5
• 28-223 - 5 Amp Mini Fuse - Qty. 5
• 28-224 - 7.5 Amp Mini Fuse - Qty. 5
• 28-225 - 10 Amp Mini Fuse - Qty. 5
• 28-226 - 15 Amp Mini Fuse - Qty. 5
• 28-227 - 20 Amp Mini Fuse - Qty. 5
• 28-228 - 25 Amp Mini Fuse - Qty. 5
• 28-229 - 30 Amp Mini Fuse - Qty. 5
• 28-3003 - 3 Amp ATC Fuse - Qty. 5
• 28-3004 - 4 Amp ATC Fuse - Qty. 5
• 28-3005 - 5 Amp ATC Fuse - Qty. 5
• 28-3007 - 7.5 Amp ATC Fuse - Qty. 5
• 28-3010 - 10 Amp ATC Fuse - Qty. 5
• 28-3015 - 15 Amp ATC Fuse - Qty. 5
• 28-3020 - 20 Amp ATC Fuse - Qty. 5
• 28-3025 - 25 Amp ATC Fuse - Qty. 5
• 28-3030 - 30 Amp ATC Fuse - Qty. 5
• 28-3040 - 40 Amp ATC Fuse - Qty. 5
