Wave Seal Constant Torque Hose Clamp Assortment (#16 - #48)
Price
Want to view pricing for this product?
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Log In or Create Login
Not a Kimball Midwest Customer?
Register
Item Number: 405193
Package Weight: 7.6 lbs
Product Details
- CONSTANT TORQUE CLAMP - Wave Seal design keeps constant pressure during thermal cycling to prevent cold temperature leaks.
- COST EFFECTIVE - Cost effective alternative to conventional T-bolt, spring style, Belleville and high torque hose clamps in many applications.
- DUAL BEAD DESIGN - Concentrates sealing pressure to prevent leaks and will not damage softer hoses. Rolled edges won't cut into the hose. Out performs T-bolt and spring clamps in leak testing and pull-off testing.
- LOW PROFILE CLAMP - Compact design is ideal for use in engine compartments and other applications where space is limited.
- ULTRA LIGHT WEIGHT - 1/3 the weight of traditional constant torque hose clamps.
- 100% STAINLESS STEEL CONSTRUCTION - Excellent corrosion resistance clamp.
- FOR USE ON - Radiator, heater, charge air (turbo) and cooling systems, heat exchangers, hydraulic systems and other fluid and air conducting applications.
- 9/16 BAND WIDTH.

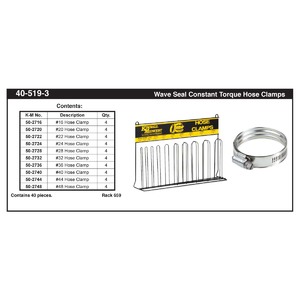

Assortment Contains:
- 659 - Hose Clamp Rack - Qty. 1
- 50-2716 - 13/16" - 1-5/16" Wave Seal Constant Torque Hose Clamp (#16) - Qty. 4
- 50-2720 - 1" - 1-9/16" Wave Seal Constant Torque Hose Clamp (#20) - Qty. 4
- 50-2722 - 1-1/8" - 1-11/16" Wave Seal Constant Torque Hose Clamp (#22) - Qty. 4
- 50-2724 - 1-3/16" - 1-13/16" Wave Seal Constant Torque Hose Clamp (#24) - Qty. 4
- 50-2728 - 1-5/16" - 2-1/16" Wave Seal Constant Torque Hose Clamp (#28) - Qty. 4
- 50-2732 - 1-1/2" - 2-5/16" Wave Seal Constant Torque Hose Clamp (#32) - Qty. 4
- 50-2736 - 1-11/16" - 2-9/16" Wave Seal Constant Torque Hose Clamp (#36) - Qty. 4
- 50-2740 - 1-13/16" - 2-13/16" Wave Seal Constant Torque Hose Clamp (#40) - Qty. 4
- 50-2744 - 2-1/16" - 3-1/16" Wave Seal Constant Torque Hose Clamp (#44) - Qty. 4
- 50-2748 - 2-3/16" - 3-5/16" Wave Seal Constant Torque Hose Clamp (#48) - Qty. 4
Product Documents
Product Specification
Band Width:
1/2"
Brand:
Kimball Midwest
Color:
Silver
Head Style:
Hex Head
Material:
Stainless Steel
Measurement Type:
SAE
Number of Pieces:
40
Screw Size:
5/16"
Storage Type:
Hose Clamp Rack
Subcategory:
Clamps
Warranty:
30 Day
